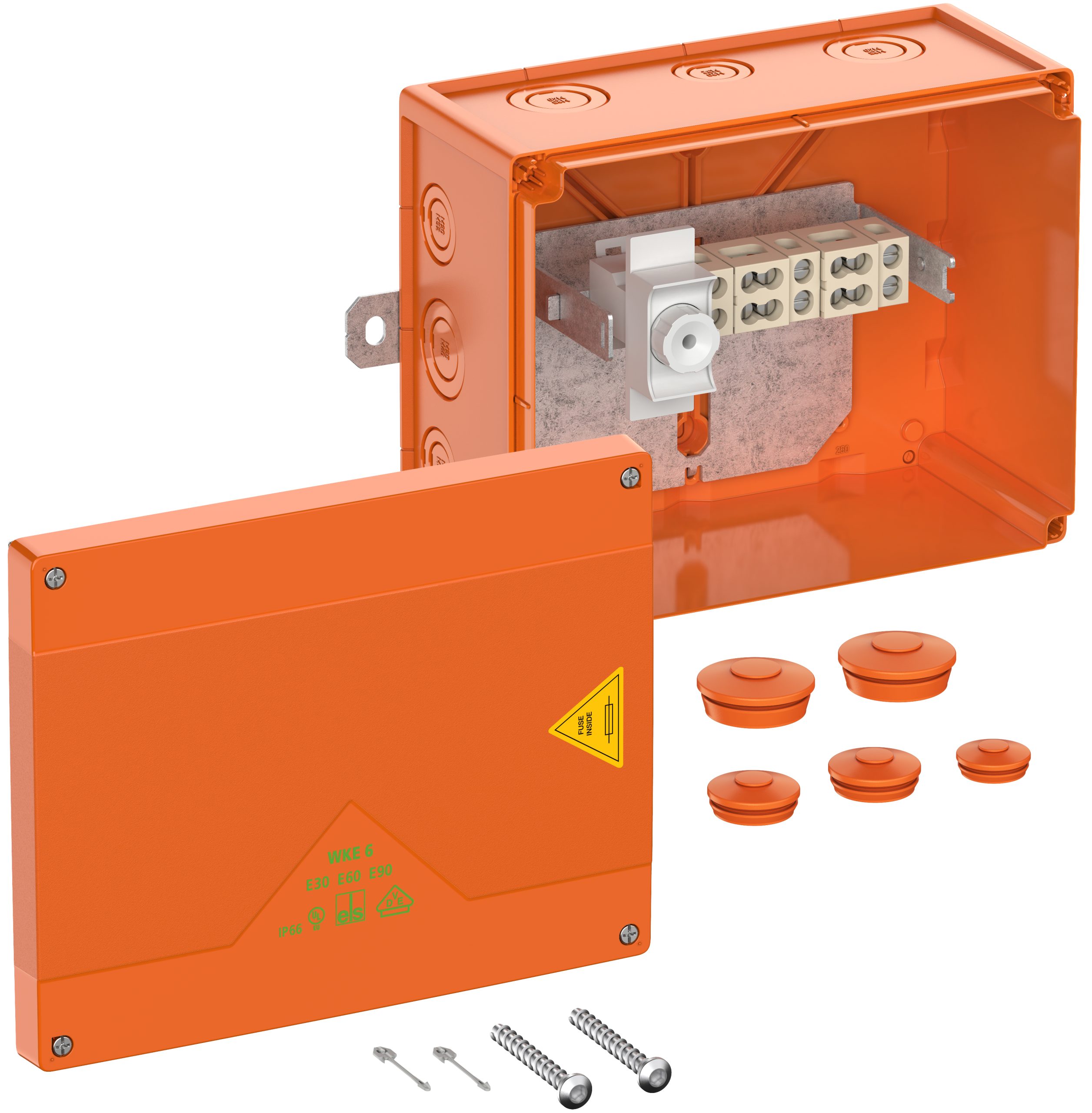

86932120 WKE 6 – 5/3 x 16² 1D0

Junction box, protection class IP66, Ui=450 V AC, certified by UL-EU (EN 62208), UL-EU (EN 61439-1/-2), M20/M25/M32/M40, (4 rear, 12 side), external fixing lugs, with E30-E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder, orange, Connection box 5-pole 1.5-16mm², junction box 3-pole 1.5-10mm², fuse in branch 1 x socket D01 (without insert), number of clamped wires per terminal point 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16²
Dimensions: 200 x 250 x 120mm
Accessories supplied: Cover retainer, screw anchors, 1 double membrane seals M25 IP66 sealing range 9-17mm, 2 double membrane seals M32 IP66 sealing range 13-21mm, 2 double membrane seals M40 IP66 sealing range 17-28mm
