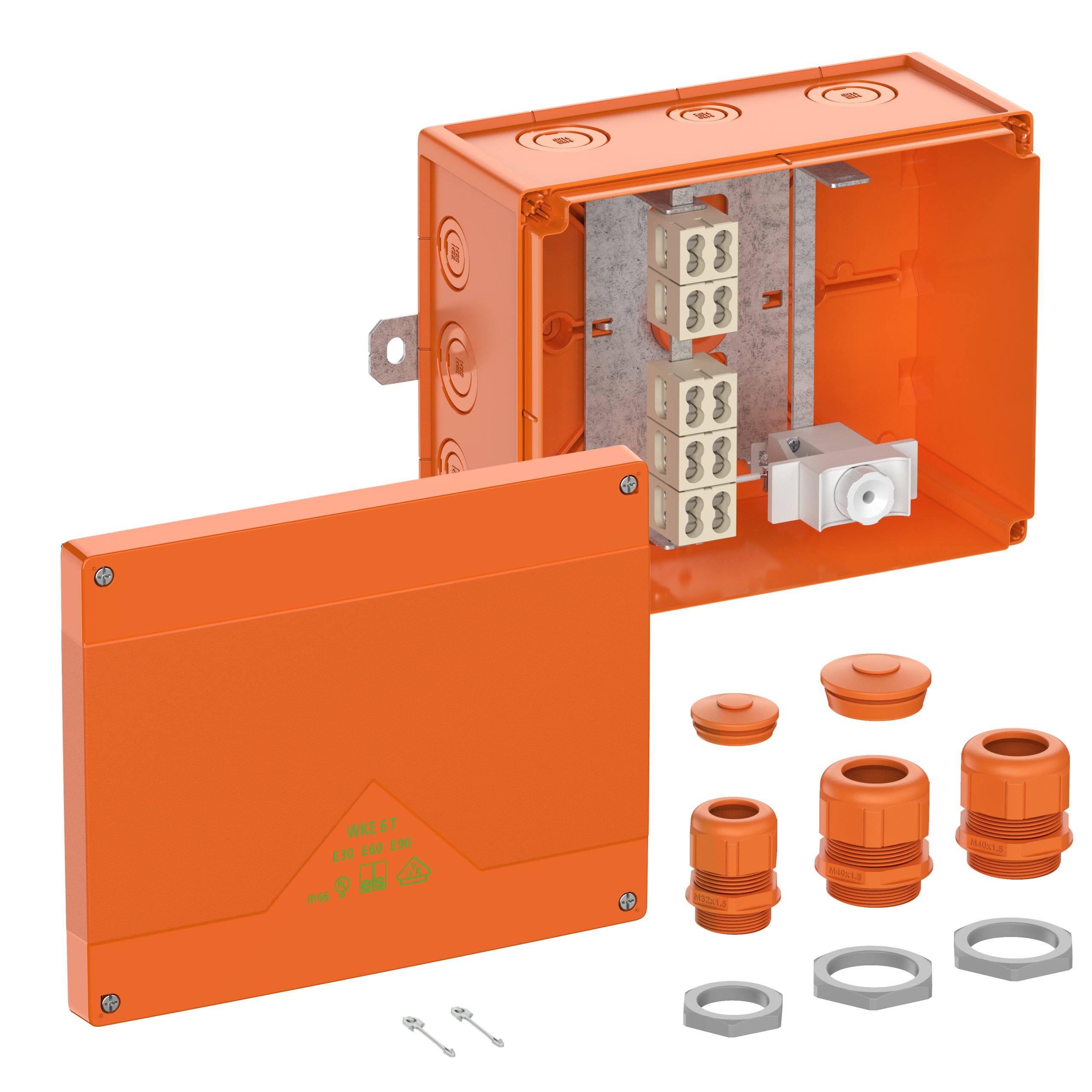

86963101 WKE 6 T 1D01

Junction box, protection class IP66, Ui=450 V AC, certified by UL-EU (EN 62208), UL-EU (EN 61439-1/-2), knockouts, M20/M25/M32/M40, (4 rear, 12 side), external fixing lugs, with E30-E 90 electrical functional integrity according to DIN 4102 Part 12. Pressure and suction-tight according to Gotthard guideline. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder, quick assembly thanks to external fixing lug made of stainless steel 1.4571. Cover screws made of stainless steel 1.4578., orange, Connection box 5-pole 1.5-16mm², junction box 3-pole 1.5-10mm², fuse in branch 1 x socket D01 (without insert), number of clamped wires per terminal point 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16²
Dimensions: 200 x 250 x 120mm
Accessories supplied: 2 x cable gland M40, sealing range 16-28mm, 1 x cable gland M32, sealing range 11-21mm, each 1 x double membrane seals M32 and M40 for sealing accidentally opened knockouts.
