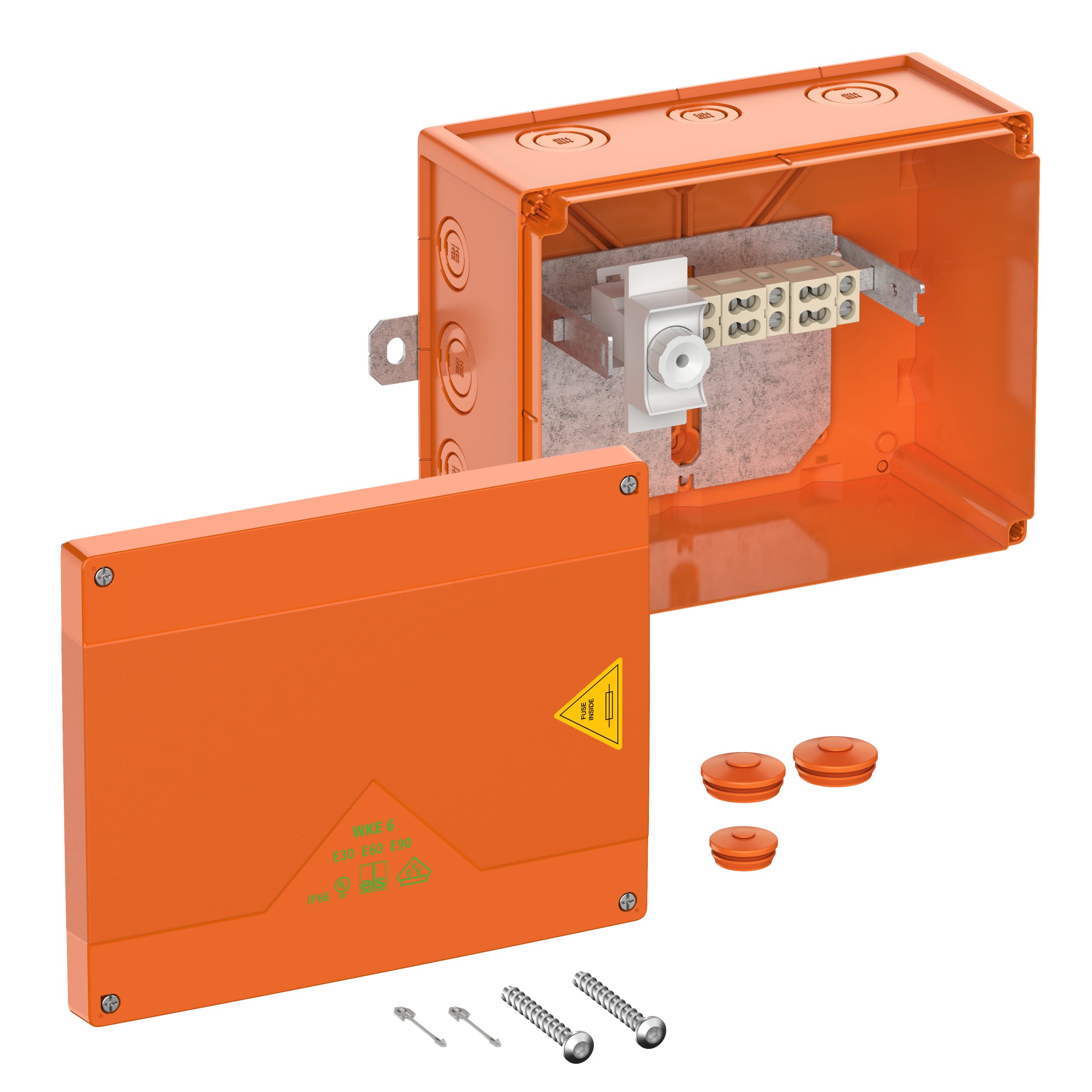

86922120 WKE 6 – 5/3 x 10² 1D0
Код товара: 91627
Ціна за запитом
Junction box, Type of protection IP66, Impact strength IK08, Protection class II, Ui 450V AC, Rated insulation voltage 450V DC, UL-EU, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, Ui=450 V AC, certified by UL-EU (EN 62208), UL-EU (EN 61439-1/-2), M20/M25/M32/M40, (4 rear, 12 side), external fixing lugs, with E30-E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder, orange, Junction box 5-pole 1.5-10mm², junction box 3-pole 1.5-10mm², fuse in branch 1 x socket D01 (without insert), number of clampable wires per terminal point 4 x 1.5² / 3 x 2.5² / 2 x 4² / 1 x 6² / 1 x 10²
Dimensions: 200 x 250 x 120mm
Accessories supplied: Cover retainer, screw anchors, 1 double membrane seals M25 IP66 sealing range 9-17mm, 2 double membrane seals M32 IP66 sealing range 13-21mm
International product number (GTIN): 4013902631513
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 86922120
Manufacturer type description: WKE 6 – 5/3 x 10² 1D0
Ключові слова: WKE D0, WKE D0, WKE 6 D0, WKE 6 D0, WKE6 D0, WKE6 D0, Lifeline, Lifeline, Verbindungskasten, Junction boxes
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
