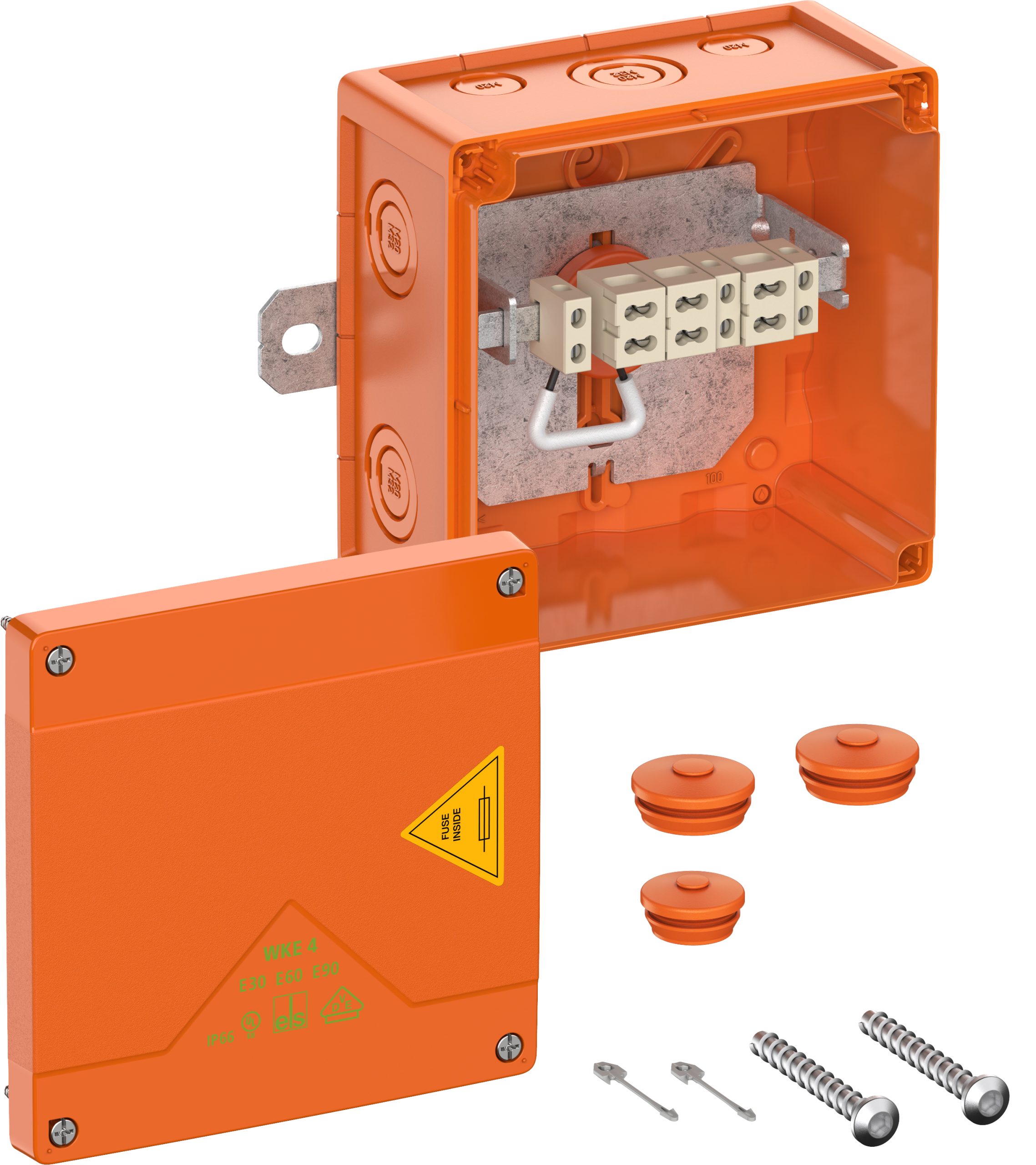

86912101 WKE 4 – 5/3 x 6² 1SB

Junction box, protection class IP66, Ui=450 V AC, certified by UL-EU (EN 62208), UL-EU (EN 61439-1/-2), knockouts, M20/M25/M32, (2 rear, 12 side), external fixing lugs, with E30-E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder, orange, Connection box 5-pole 0.5-6mm², junction box 3-pole 0.5-6mm², fuse in branch 1 x 2A (internal, 1 x WKE BS F2A, 86300101), number of clampable conductors per terminal point: 4 x 0.5² / 2 x 0.75² / 3 x 1² / 3 x 1.5² / 1 x 2.5² / 1 x 4² / 1 x 6²
Dimensions: 150 x 150 x 85mm
Accessories supplied: Cover securing device, screw anchors, 1 double membrane seals M25 IP66 sealing range 9-17mm, 2 double membrane seals M32 IP66 sealing range 13-21mm
