80670701 Abox 060 SB-L
Код товара: 91351
Ціна за запитом
Junction box, Type of protection IP54/IP65 , Max. conductor cross section 6², Impact strength IK07, Protection class II, Ui 690V AC, VDE, Halogen free
| Виробник |
|---|

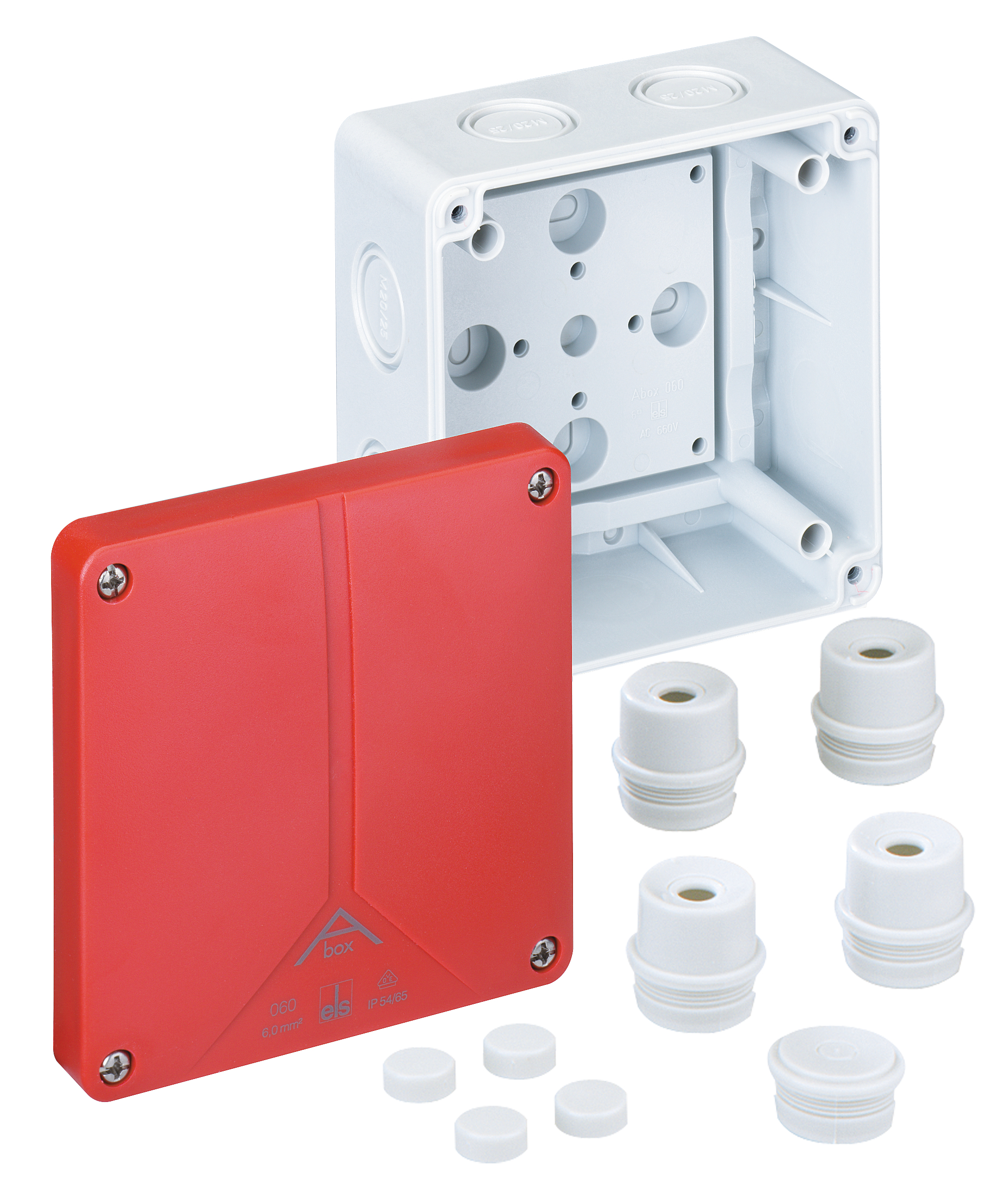

Junction box, protection class IP54/IP65, nominal cross-section 6mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20/M25, (2 rear, 7 side), internal fixing points, for standard indoor installations, grey, with red cover, without terminals, for identifying circuits for safety lighting
Dimensions: 110 x 110 x 67mm
Accessories supplied: 4 Attachment bushes IP54 M25 sealing range 9-18,5mm, 1 sealing plugs M25
International product number (GTIN): 4013902882144
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80670701
Manufacturer type description: Abox 060 SB-L
Ключові слова: abx, abx, aox, aox, Klemmenkasten, Terminal box, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
