80670101 Abox 060 AB-L/SB
Код товара: 91348
Ціна за запитом
Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, VDE, Halogen free
| Виробник |
|---|

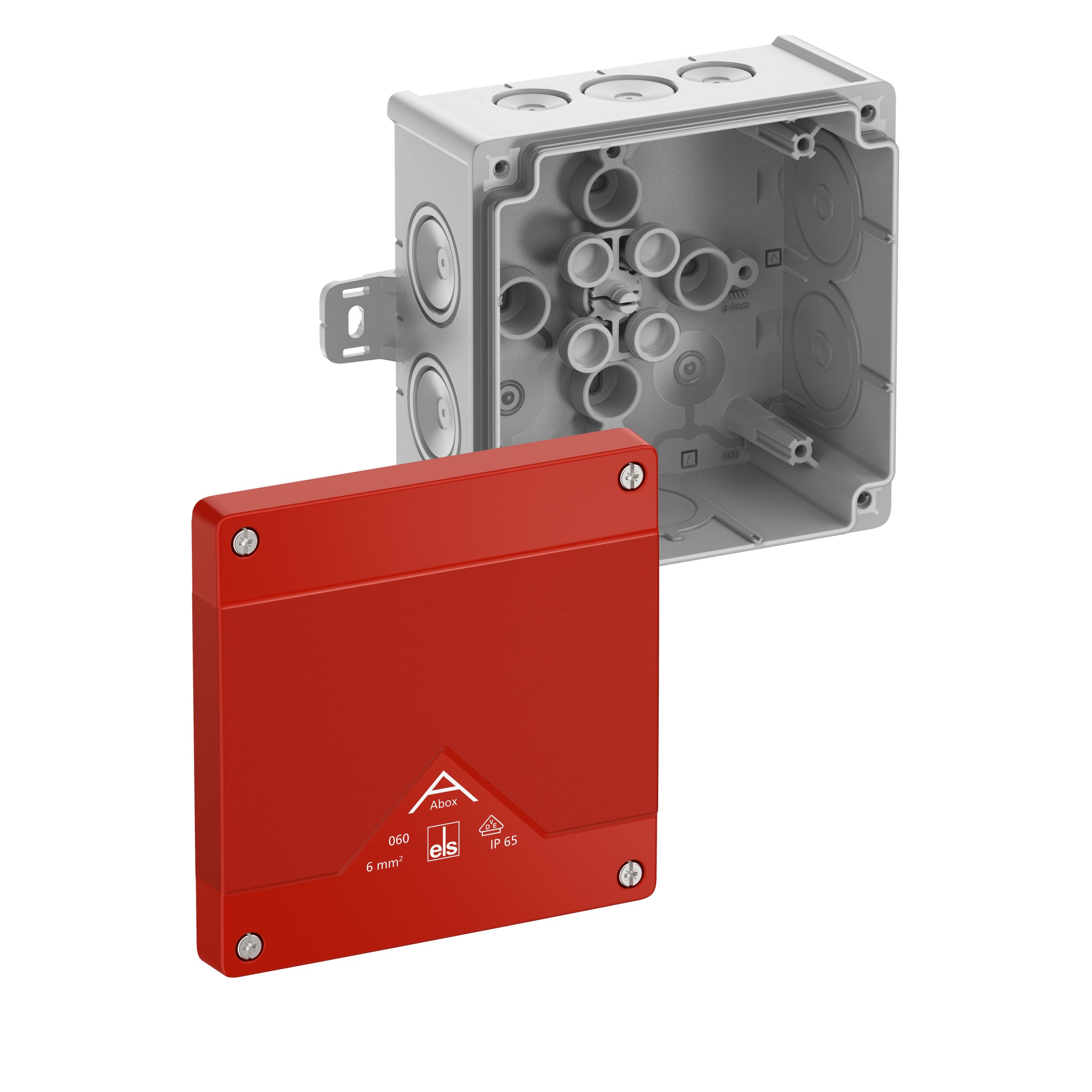

Junction box, protection class IP66, nominal cross-section 6mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 4-28mm, (2 rear, 8 side), external fixing lugs, for standard indoor and protected outdoor installations, grey, Ui=1000 V AC, with red cover, without terminals, for identification of safety lighting circuits
Dimensions: 127 x 127 x 70mm
International product number (GTIN): 4013902660698
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80670101
Manufacturer type description: Abox 060 AB-L/SB
Ключові слова: abx, abx, aox, aox, Verbindungskasten, Junction boxes, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
