73301101 AK 14+EMOBIL 11kW-A
Код товара: 90288
Ціна за запитом

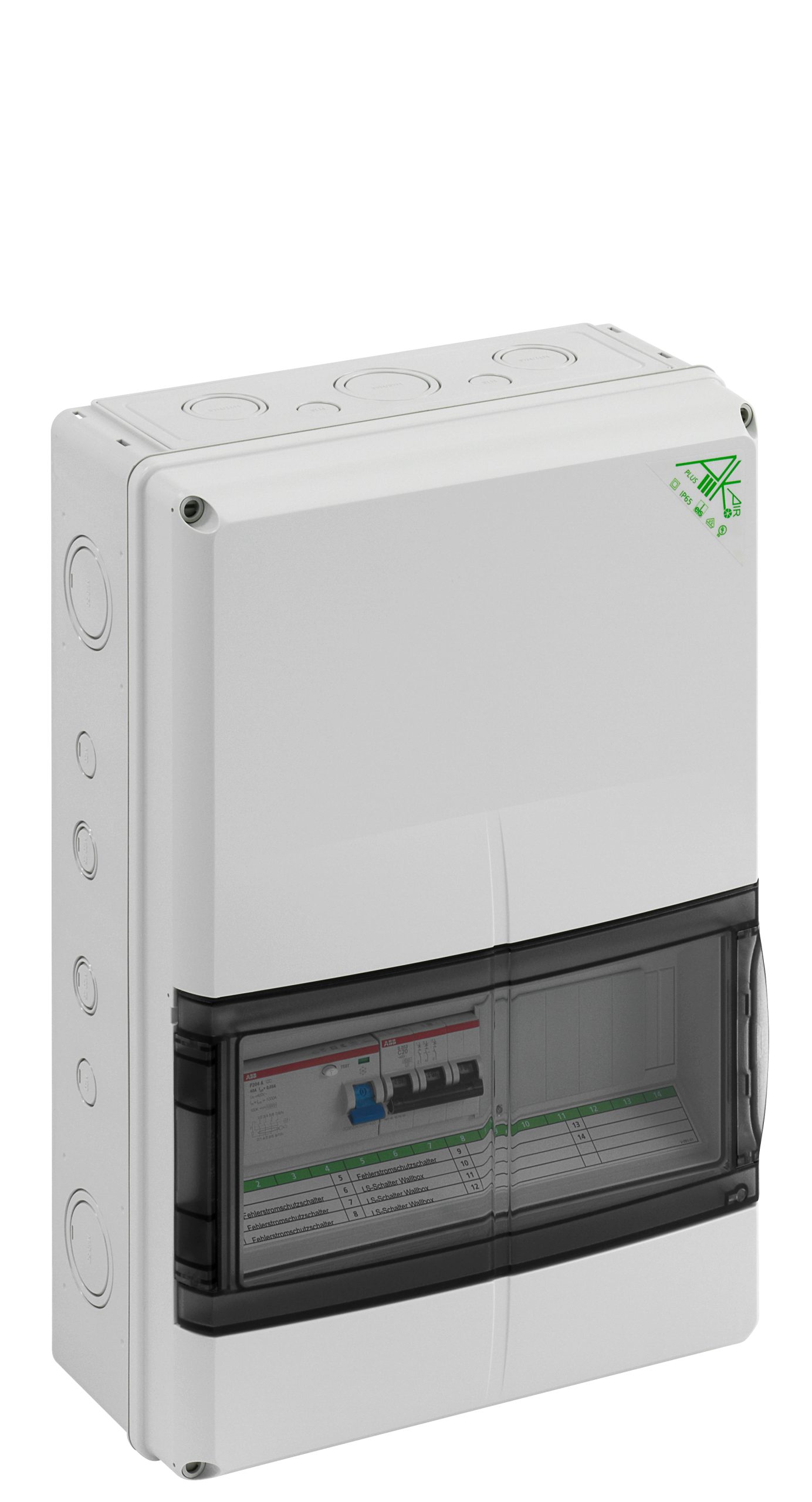

Small distributions boards, grey, Type of protection IP65, vented, Impact strength IK08, Protection class II, Rated voltage 400V AC, DLG, Halogen free
| Виробник |
|---|
Small distributions boards, protection class IP65, type-tested to EN 61439-3, prewired ready for connection to input and output terminals 10mm²,
1-row, for 11 kW Wallbox with integrated 6mA DC monitoring
equipped with:
- 1 x Miniature circuit breaker C20A, 3-pole
- 1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
Dimensions: 315 x 450 x 155mm
Accessories supplied: Double membrane seals: 1x M16, 5x M20, 2x M25, 1x M32, 1x M40, cable glands: 1x M20, 2x M40, sealing plugs, cover and labelling strips
International product number (GTIN): 4013902630585
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73301101
Manufacturer type description: AK 14+EMOBIL 11kW-A
Ключові слова: Ladesäule, Charge column, E-Mobility, E-Mobility, Elektromobilität, Electrical mobility, anschlussfertig, Plug-and-play status, Stromversorgung, Current supply
Special product status:
Classification system: ETIM-9.0
Group reference: EC002288
