73222401 STG 024
Код товара: 90285
Ціна за запитом

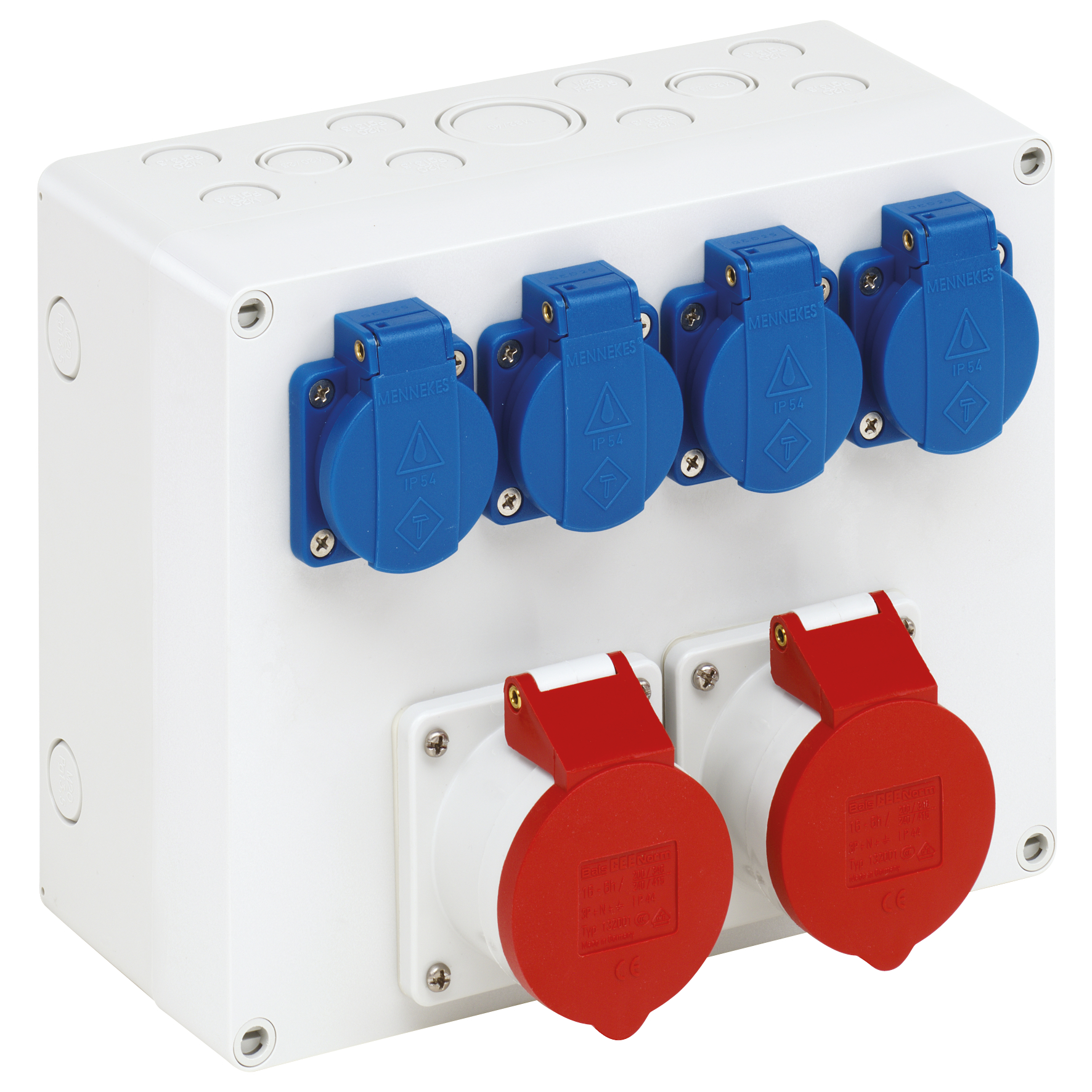

Socket enclosure, grey, Type of protection IP44, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
Socket enclosure, protection class IP44, with integrated, pre-wired sockets, high mechanical resilience, non-sensitive to temperature, combinable, halogen-free
Cable insertions:
Top: Pre-embossing 8 x M20, 2 x M20/25, 1 x M32/40
Bottom: Pre-embossing 8 x M20, 2 x M20/25, 1 x M32/40
Left: Pre-embossing 2 x M20
Right: Pre-embossing 2 x M20
Rear: Pre-embossing 2 x M20/25,
equipped with:
- 4 x SCHUKO(R) plug socket (on front), 230V
- 2 x CEE plug socket outlet (on front) 16A, 400V
Dimensions: 250 x 200 x 122mm
Accessories supplied: Attachment bushes: 2x M25, 2x M32, sealing plugs
International product number (GTIN): 4013902934911
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73222401
Manufacturer type description: STG 024
Ключові слова: Steckdosenkombination, Socket combination, Steckdosenverteiler, Socket distribution box, Steckdosengehäuse, Socket enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
