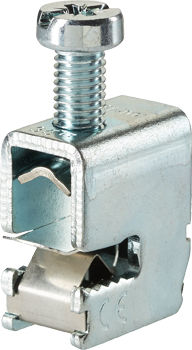

BKNA3505 Bow terminal BKNA 35sqmm for 5mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 4-35 sqmm
Screw connection: PZ2 or SW13 with a torque of 6Nm, eng

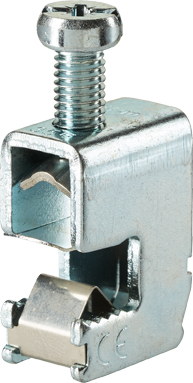

BKNA3510 Bow terminal BKNA 35sqmm for 10mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 4-35 sqmm
Screw connection: PZ2 or SW13 with a torque of 6Nm, eng

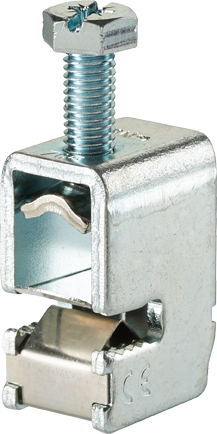

BKNA7005 Bow terminal BKNA 70sqmm for 5mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 16-70 sqmm
Screw connection: PZ3 or SW13 with a torque of 12Nm, eng

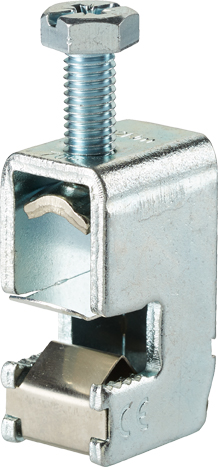

BKNA7010 Bow terminal BKNA 70sqmm for 10mm for copper or aluminium bars
Deriving from know-how and a lot of ambition for any detail, the bow terminals of the BKNA series have been created. The optimized pressure plate which is firmly riveted to the fixing screw increases the pull-off force and prevents twisting of the terminal during installation. The robust bow terminals from FTG are favourable solutions if simple, yet highly reliable solutions are demanded. The terminals can be used for copper or aluminium conductors with a maximum voltage of 1000 V AC/DC.
Cross section: 16-70 sqmm
Screw connection: PZ3 or SW13 with a torque of 12Nm, eng
BKS12005 Bow terminal BKS 120sqmm for copper conductors and 5mm copper bars
The steel terminal BKS is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 120sqmm, conductors of 16 - 120 sqmm and sector conductors of 16 - 120 sqmm can be connected. The connection screw is PZ3 or SW17 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (10 x 15.5 x 0.8) max. Current 440A max. Voltage 1000V AC / DC
, eng

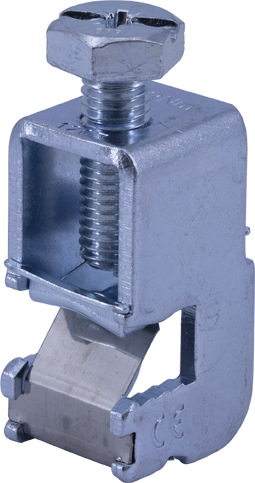

BKS12010 Bow terminal BKS 120sqmm for copper conductors and 10mm copper bars
The steel terminal BKS is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 120sqmm, conductors of 16 - 120 sqmm and sector conductors of 16 - 120 sqmm can be connected. The connection screw is PZ3 or SW17 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (10 x 15.5 x 0.8) max. Current 440A max. Voltage 1000V AC / DC, eng
BKS1605 Bow terminal BKS 16sqmm for copper conductors and 5mm copper bars
The steel terminal BKS is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 16sqmm, conductors from 1.5 - 16sqmm can be connected. The connection screw is PZ2 with a tightening torque of 3Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (8 x 6 x 0.5) max. Current 180A max. Voltage 1000V AC / DC, eng
BKS1610 Bow terminal BKS 16sqmm for copper conductors and 10mm copper bars
The steel terminal BKS is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 16sqmm, conductors from 1.5 - 16sqmm can be connected. The connection screw is PZ2 with a tightening torque of 3Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (8 x 6 x 0.5) max. Current 180A max. Voltage 1000V AC / DC, eng
BKS18505 Bow terminal BKS 185sqmm for copper conductors and 5mm copper bars
The steel terminal BKS is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 185sqmm, conductors of 50 - 185 sqmm and sector conductors of 50 - 185 sqmm can be connected. The connection screw is PZ3 or SW17 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (6 x 20 x 1) 1 x (10 x 20 x 1) max. Current 500A max. Voltage 1000V AC / DC, eng

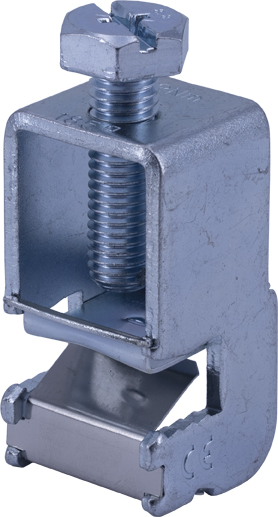

BKS18510 Bow terminal BKS 185sqmm for copper conductors and 10mm copper bars
The steel terminal BKS is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 185sqmm, conductors of 50 - 185 sqmm and sector conductors of 50 - 185 sqmm can be connected. The connection screw is PZ3 or SW17 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (6 x 20 x 1) 1 x (10 x 20 x 1) max. Current 500A max. Voltage 1000V AC / DC, eng
BKS3505 Bow terminal BKS 35sqmm for copper conductors and 5mm copper bars
The steel terminal BKS is for 5mm copper busbars or tinned aluminum busbars or cables. With the cross section of 35sqmm, conductors of 4 - 35sqmm and sector conductors of 35sqmm can be connected. The connection screw is PZ2 or SW13 with a tightening torque of 10Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (3 x 9 x 0.8) 1 x (6 x 9 x 0.8) max. Current 270A max. Voltage 1000V AC / DC, eng

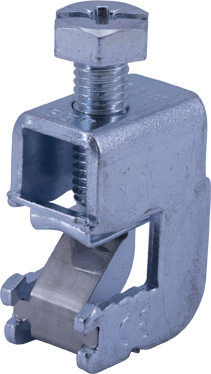

BKS3510 Bow terminal BKS 35sqmm for copper conductors and 10mm copper bars
The steel terminal BKS is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 35sqmm, conductors of 4 - 35sqmm and sector conductors of 35sqmm can be connected. The connection screw is PZ2 or SW13 with a tightening torque of 10Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (3 x 9 x 0.8) 1 x (6 x 9 x 0.8) max. Current 270A max. Voltage 1000V AC / DC, eng
