6

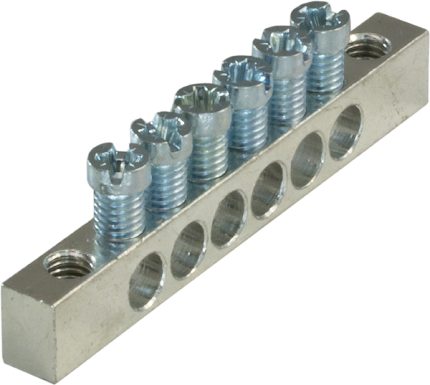

The zinc-plated brass terminal has 6 connections with a cross section of 1,5 - 16 sqmm (single-/multiwire) or 1,5 - 10 sqmm (with sleeve). The terminal is for a maximum current of 80A and a maximum voltage of 690V. , eng

The brass terminal is on a spring feder holder offering space for 96 conductors of a cross section of 1,5 - 16 sqmm (single-/multiwire) or 1,5 - 10 sqmm (with sleeve). Additionaly there is a V-gap with a compression proving ring for 15 conductors with a cross section from 25 - 35 sqmm. The terminal is for a maximum current of 80A and a maximum voltage of 690V. , eng

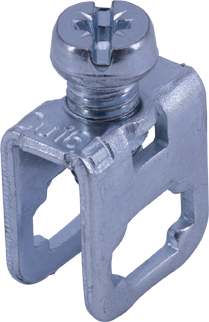

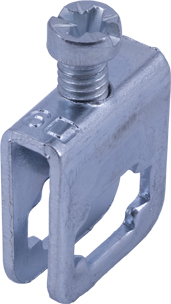

The bow terminal BKGS with the connecting screw PZ2 with a torque of 2-2.5 Nm offers space for cross sections up to 16 sqmm. The terminal is for the flat copper types 3x12 mm and 6 x 6 mm designed. The terminal is used for a maximum current of 180A and a voltage of 1000V AC/DC., eng

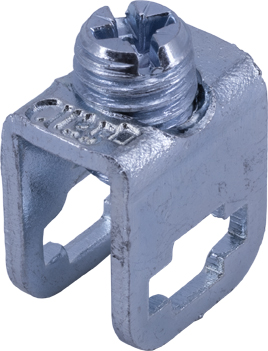

The bow terminal BKGS with the connecting screw PZ2 with a torque of 2.5-3 Nm offers space for cross sections up to 35 sqmm. The terminal is for flat copper types of 3x12 mm and 6 x 6 mm designed. The terminal is used for a maximum current of 225A and a voltage of 1000V AC/DC., eng

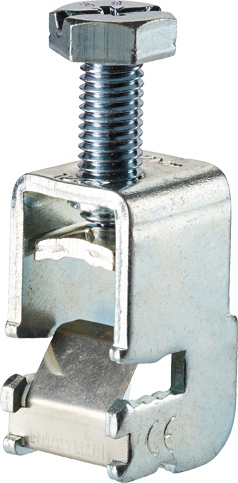

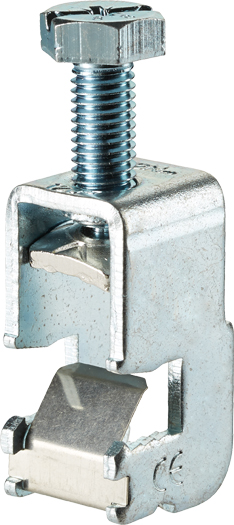

The steel terminal BKN is for 10mm copper busbars or tinned aluminum busbars or cables. With the cross section of 120sqmm, conductors (single / multi-wire or with wire end sleeve) of 16 - 120sqmm and sector conductors of 35 - 120sqmm can be connected. The connection screw is SW 17 or PZ3 with a tightening torque of 22Nm. Laminated copper busbars with the following dimensions (mm) can be connected: 1 x (10 x 15.5 x 0.8) or 1 x (6 x 20 x 1) with a max. Current 440A and max. Voltage 1000V AC / DC., eng

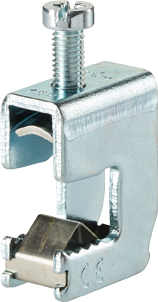

The steel terminal BKN is for 3mm copper busbars or tinned aluminum busbars or cables. With the cross section of 16sqmm, conductors from 1.5 - 16sqmm can be connected. The connection screw is PZ2 with a tightening torque of 3Nm. It has a max. Current 180A and max. Voltage 1000V AC / DC, eng
