802-180 Feed-in terminal UL508, isolated, pin up to 50sqmm 115A with corrugation
The fully insulated feed terminal according to UL508, the cable cross section is mounted longitudinally and has a riffle at the bottom of the terminal lug. The maximum current and operating voltage is 115A / 1000V AC / DC. Connection cross sections: single / multiwire: 6 - 50 sqmm | AWG 10- 1/0 with ferrule: 4 - 35 sqmm, eng
802-201 Feed-in terminal isolated, UL 508, pin 6×13 mm up to 50 sqmm 115A
802-215 Feed-in terminal fork 11x15mm up to 50sqmm grey 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng

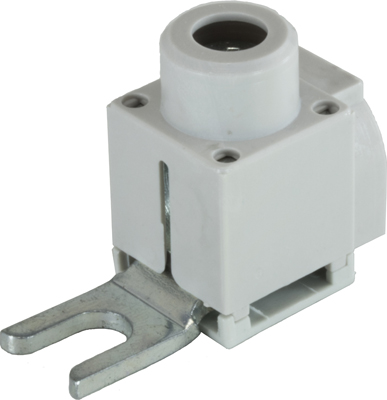

802-215I Feed-in terminal fork 11x15mm up to 50sqmm grey isolated base 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng

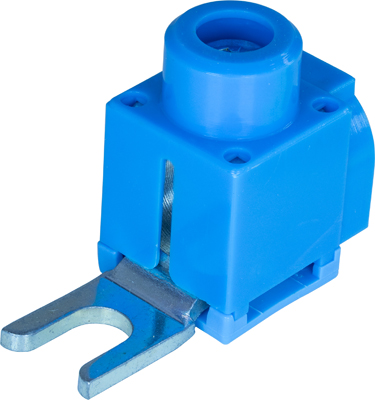

802-215I-BLAU Feed-in terminal fork 11x15mm up to 50sqmm blue isolated base 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng
802-215Q Feed-in terminal fork 11x15mm up to 50sqmm grey 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng
802-215QI Feed-in terminal fork 11x15mm up to 50sqmm grey isolated base 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng
802-215S Feed-in terminal pin 4x15mm up to 50sqmm grey 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng
802-215SB Feed-in terminal pin 7x15mm up to 50sqmm blue 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng
802-215SBI Feed-in terminal pin 7x15mm up to 50sqmm blue isolated base 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng

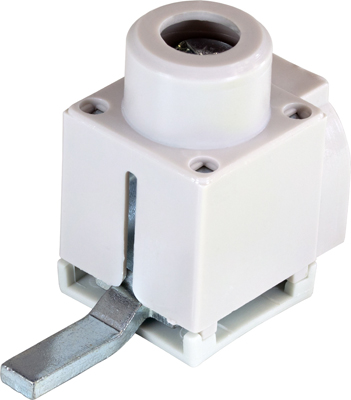

802-215SI Feed-in terminal pin 4x15mm up to 50sqmm grey isolated base 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng
802-215SI-BLAU Feed-in terminal pin 4x15mm up to 50sqmm blue isolated base 125A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 125 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 50 sqmm with ferrule: 4 - 35 sqmm, eng
