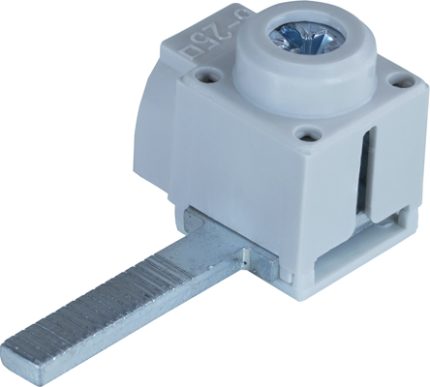

802-122SQI Feed-in terminal pin 4,5x21mm up to 25sqmm grey isolated base 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

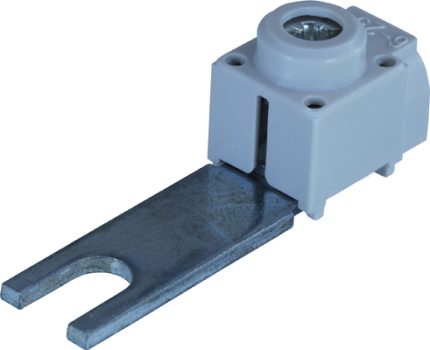

802-128 Feed-in terminal fork 11x28mm up to 25sqmm grey 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng
802-128Q Feed-in terminal fork 11x28mm up to 25sqmm grey 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with fork M6 is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

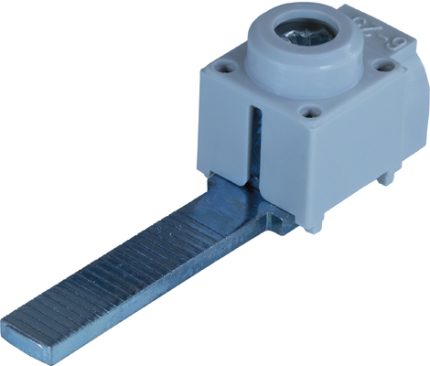

802-128S Feed-in terminal pin 6x29mm up to 25sqmm grey 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng
802-128S-BL Feed-in terminal pin 6x29mm up to 25sqmm blue 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

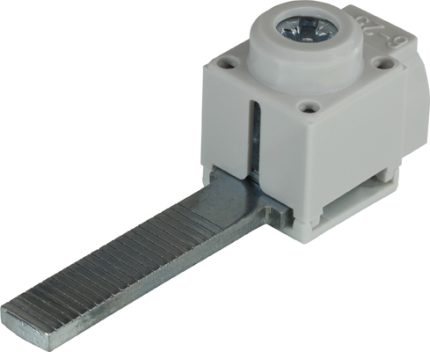

802-128SI Feed-in terminal pin 6x29mm up to 25sqmm grey isolated base 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

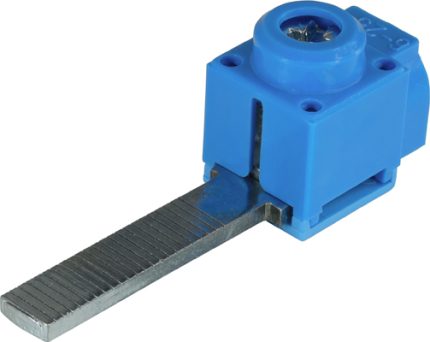

802-128SI-BLAU Feed-in terminal pin 6x29mm up to 25sqmm blue isolated base 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

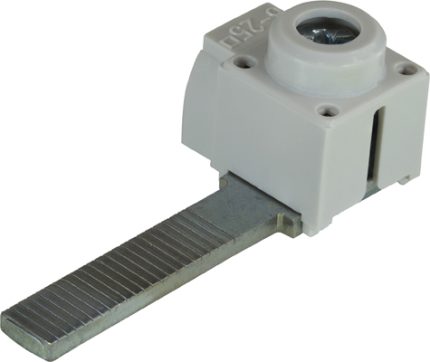

802-128SQ Feed-in terminal pin 6x29mm up to 25sqmm grey 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng
802-128SQ-BL Feed-in terminal pin 6x29mm up to 25sqmm blue 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

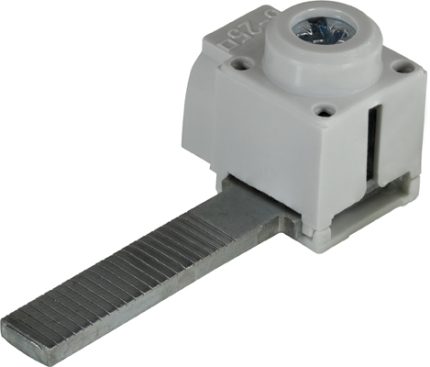

802-128SQI Feed-in terminal pin 6x29mm up to 25sqmm grey isolated base 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed across in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng

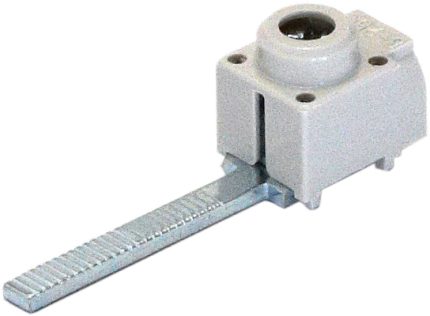

802-130S Feed-in terminal pin 4x32mm up to 25sqmm grey 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng
802-130SI Feed-in terminal pin 4x32mm up to 25sqmm grey isolated base 80A
Thanks to FTG's feed-in terminals, large cable cross-sections can be fed on the busbars. The feed-in terminal with pin is to be mounted with the connection screw PZ2. The clamp is for 80 A | AC 690 V | DC 1500 V designed. The conductor is installed longitudinally in the feed-in terminal. Connection cross sections: single / multiwire: 6 - 25 sqmm with ferrule: 4 - 16 sqmm, eng
