Механізми

Fuse T 2 H 250 V

Fuse T 1.6 H 250 V

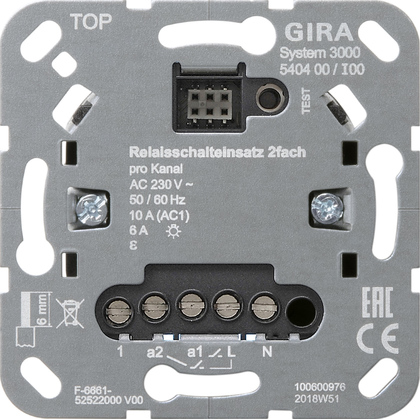

System 3000 relay switching insert, 2-gang - Switching of lighting and single-phase motors. - Adaptive zero-point switch-off - Connecting auxiliary units is possible. - Test run for function testing. - Operation with neutral conductor connection. Combination with System 3000 operating top unit, 2-gang: - Switching of two independent outputs. - Time function for output a2 can be adjusted. Combination with System 3000 operating top unit: - Output a2 switches as a function of output a1, e.g. to switch on a fan depending on the lighting and switch it off with a delay. - Switch-on delay for output a2 can be adjusted. - Delay time for output a2 can be adjusted. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Switching actuator channel, 1-gang. - Sensor channel, 1-gang or 2-gang. - Local control of System 3000 insert possible. - Wireless control of other devices for KNX possible as a sensor. - {b}Insert function selection:{b} NO/NC operation, staircase function with switch-off pre-warning, scene function (16 scenes), blocking function, time delays. Auxiliary input can be used as an additional operating point for the System 3000 insert or for wireless control of other KNX devices as a sensor. In combination with a motion detector top unit Standard, operating top unit Memory, blind timer and timer Display or blind timer and timer BT, the relay switching insert, 2-gang behaves the same way as with an operating top unit. In the event of movement and in combination with a motion detector top unit Komfort BT or presence and motion detector 360° top unit BT, output a1 switches on depending on brightness and output a2 regardless of brightness and with a delay. If the ambient temperature is higher than 25 °C, the connected load must be reduced.

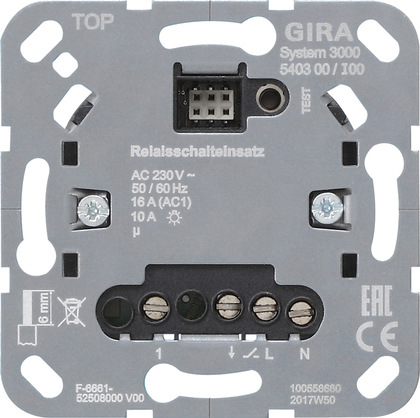

System 3000 relay switching insert - Switching of lighting and single-phase motors. - Control of electric underfloor heating and thermal servos in combination with a room temperature controller top unit. - Adaptive zero-point switch-off - Connecting auxiliary units is possible. - The load is switched off automatically. Delay times can be set to one of five levels, cannot be re-triggered. - Test run for function testing. - Operation with neutral conductor connection. Combination with RF operating top unit, 1-gang / 2-gang for KNX: - Switching actuator channel, 1-gang or heating actuator, 1-gang - Sensor channel, 1-gang or 2-gang. - Local control of System 3000 insert possible. - Wireless control of other devices for KNX possible as a sensor. - Temperature detection. - {b}Insert function selection for switching:{b} NO/NC operation, staircase function with switch-off pre-warning, scene function (16 scenes), blocking function, time delays. Auxiliary input can be used as an additional operating point for the System 3000 insert or for wireless control of other devices for KNX as a sensor. - {b}Insert function selection for room temperature controller:{b}Control of 230 V servos, heating mode, cooling mode, heating and cooling mode, switchover to heating or cooling mode via communication object or auxiliary input. PWM and 2-point controller, absolute and relative setpoint setting, heating requirement control incl. cascading, valve protection function. Cyclical monitoring of the floor temperature, service mode for valve output, frost protection function (automatic or via communication object), temperature sensor calibration, boost function, summer and winter compensation, scene function (16 scenes). If the ambient temperature is higher than 35 °C, the connected load must be reduced.

Presence detector and motion detector 360° compact - Automatic switching of lighting, depending on the movement of heat and ambient brightness. - 2-point light control. - Functions can be adjusted with IR remote controls. - Limitation of the detection field by clip-on panels or deactivation of individual sensors. - Operation with IR remote control, auxiliary unit 2-wire or rocker button. - Teach-in function for adapting the brightness threshold, in combination with IR remote controls. - Switch-off pre-warning. - Short-term operation, e.g. for controlling acoustic signal transmitters. - Presence simulation. - Function as twilight switch. - Dynamic delay time. - Expansion of the detection range by connecting several devices in parallel. The settings necessary for start-up are made using the IR remote control PIR 1 (accessory) for the installer. Ceiling mounting indoors, surface-mounted. IR remote control PIR 2 for the customer is included. Clip-on screen for limiting the range of detection is included in the scope of supply.

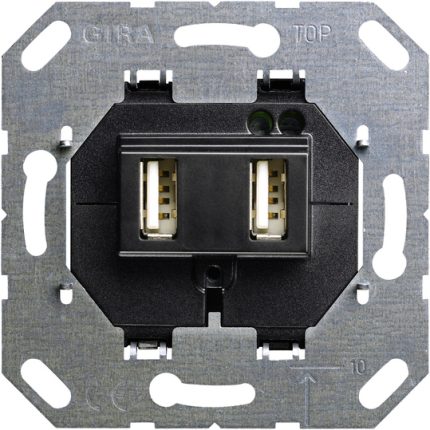

Insert for USB power supply, 2-gang Type A / type C - Charging option for up to two end devices simultaneously using USB cable type A and type C. - Suitable as a charging device, e.g. for mobile telephones and similar devices. USB cables are not included in the scope of supply.
