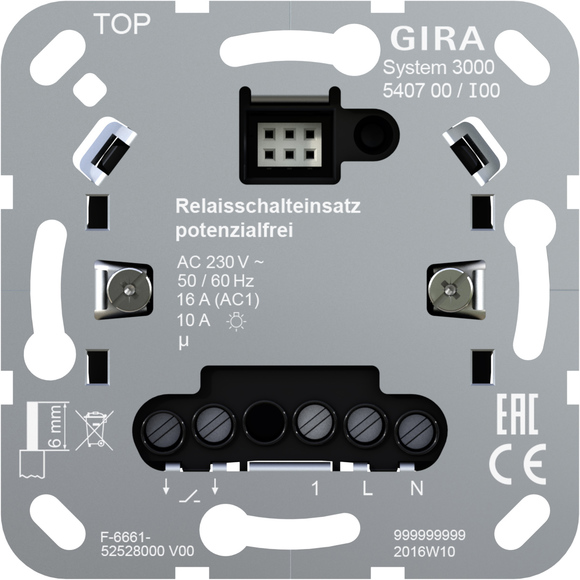

Вставка реле перемикача беспотенц. S3000

System 3000 relay switching insert zero-voltage – Switching of lighting and single-phase motors. – Control of electric underfloor heating and thermal servos in combination with a room temperature controller top unit. – Switching of deviating voltage potentials or external conductors via the zero-voltage contact. – Connecting auxiliary units is possible. – The load is switched off automatically. Delay times can be set to one of five levels, cannot be re-triggered. – Test run for function testing. – Operation with neutral conductor connection. Combination with RF operating top unit, 1-gang / 2-gang for KNX: – Switching actuator channel, 1-gang. – Sensor channel, 1-gang or 2-gang. – Local control of System 3000 insert possible. – Wireless control of other devices for KNX possible as a sensor. – {b}Insert function selection:{b} NO/NC operation, staircase function with switch-off pre-warning, scene function (16 scenes), blocking function, time delays. Auxiliary input can be used as an additional operating point for the System 3000 insert or for wireless control of other KNX devices as a sensor. – The combination of the top units 5393xx and 5394xx is only possible for I05 (index) or higher. If the ambient temperature is higher than 35 °C, the connected load must be reduced.
