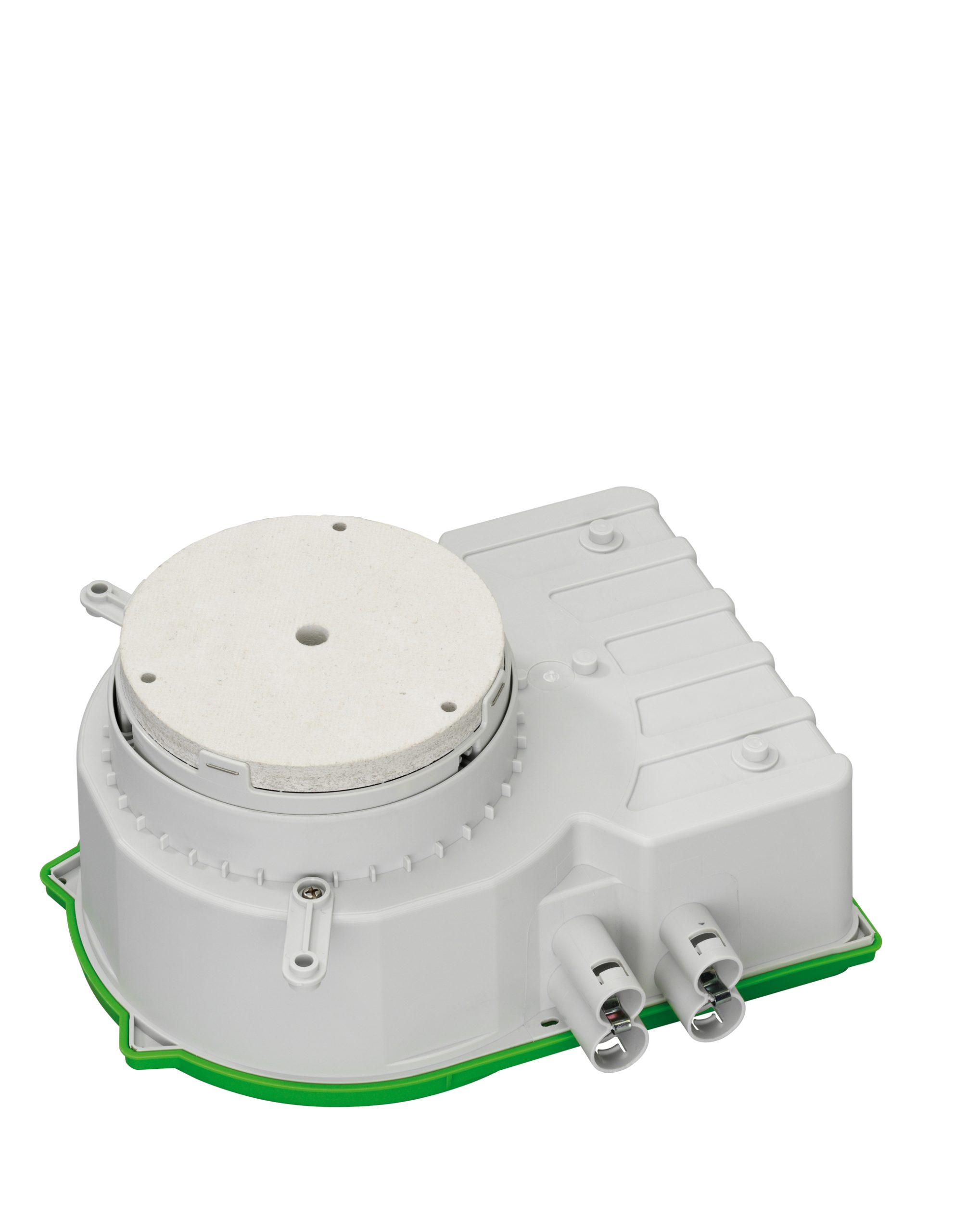

97680402 IBTronic XL Drillbox 150 E

Enclosure, for prefabricated construction, for installing LV/HV/LED luminaires, suitable for subsequent installation in prefabricated ceilings 45-70mm with Ø 152mm core drilling, for the installation of VDE-approved lights per DIN EN 60598 (VDE 0711), as well as with F identification or MM identification, max. installation height LV lights: 105mm, HV lights: 110mm, lamp output max. 50W Alu, with additional connection space, (e.g. for installing an electronic safety transformer up to max. 150 VA), rated insulation voltage: 400V AC, Halogen free, Selectable outlet aperture: Fermacell(R) plasterboard, variable to Ø 100mm, 8 combi-conduit entries 4 x 16mm, 4 x 19mm, integrated conduit stopper and strain relief for conduits 16mm, 19mm, dowel installation at floor slab, integrated conduit adapter, sealing range M16-M19
Dimensions: 255 x 280 x 92mm
