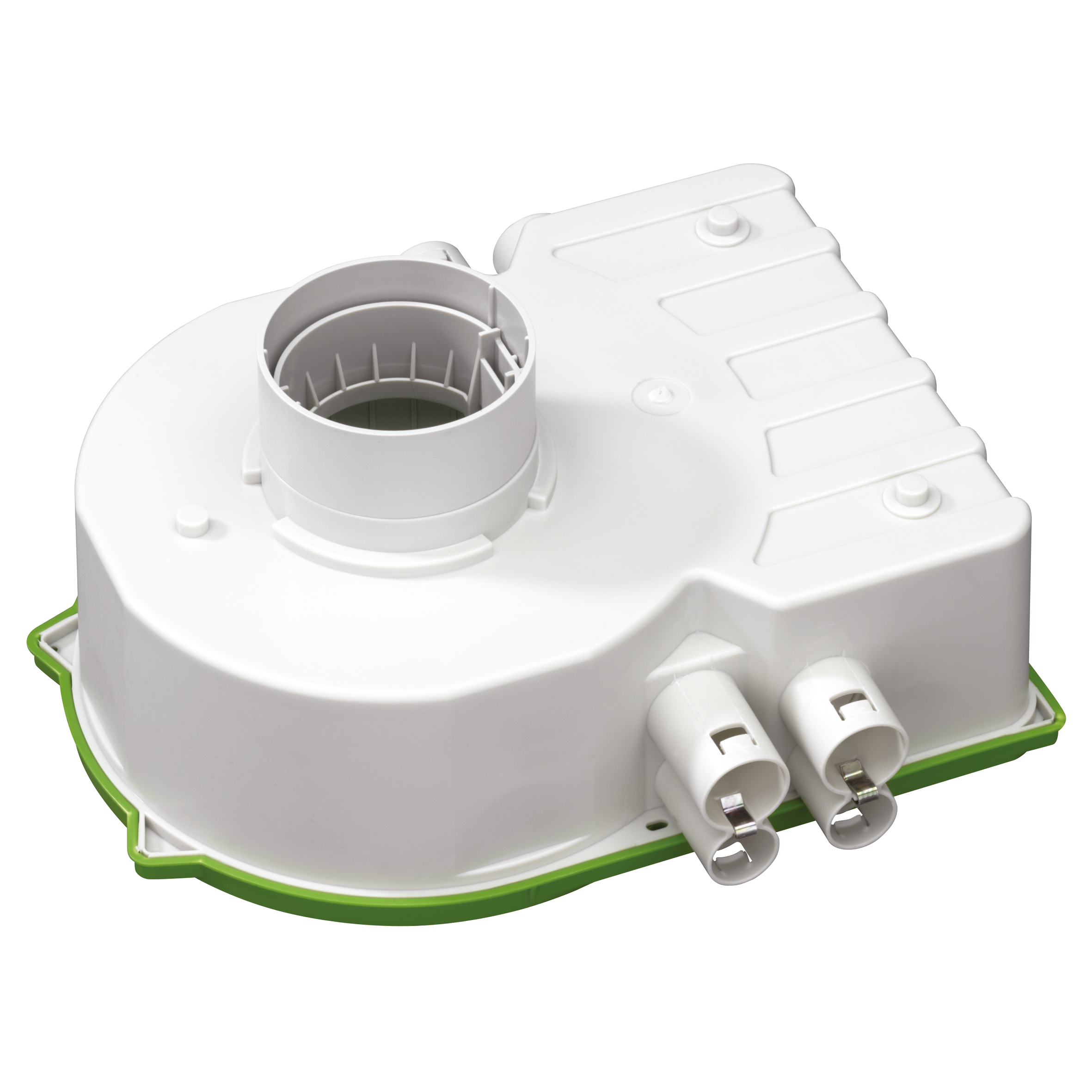

97680102 IBTronic XL Drillbox E
Код товара: 92080
Ціна за запитом
Enclosure, other, Suitable for concrete construction, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
Enclosure, for prefabricated construction, for installing LV/HV/LED luminaires, suitable for subsequent installation in prefabricated ceilings 45-70mm with Ø 82mm core drilling, for the installation of VDE-approved lights per DIN EN 60598 (VDE 0711), as well as with F identification or MM identification, max. installation height LV lights: 105mm, HV lights: 110mm, lamp output max. 50W Alu, with additional connection space, (e.g. for installing an electronic safety transformer up to max. 150 VA), rated insulation voltage: 400V AC, Halogen free, Outlet aperture: Ø 76mm, ORD (Outer Ring Diameter of lights), min. Ø 85mm, 8 combi-conduit entry points 4 x 16mm, 4 x 19mm integrated conduit stopper and strain relief for conduits 16mm, 19mm, dowel installation at floor slab, integrated conduit adapter, sealing range M16-M19
Dimensions: 255 x 280 x 92mm
International product number (GTIN): 4013902967438
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 97680102
Manufacturer type description: IBTronic XL Drillbox E
Ключові слова: Betoninstallationssystem, Concrete installation system, Beton, concrete, Betoneinbau, concrete installation, Leuchteneinbau, installation in luminaires, Lautsprechergehäuse, speaker housing
Special product status:
Classification system: ETIM-9.0
Group reference: EC000414
