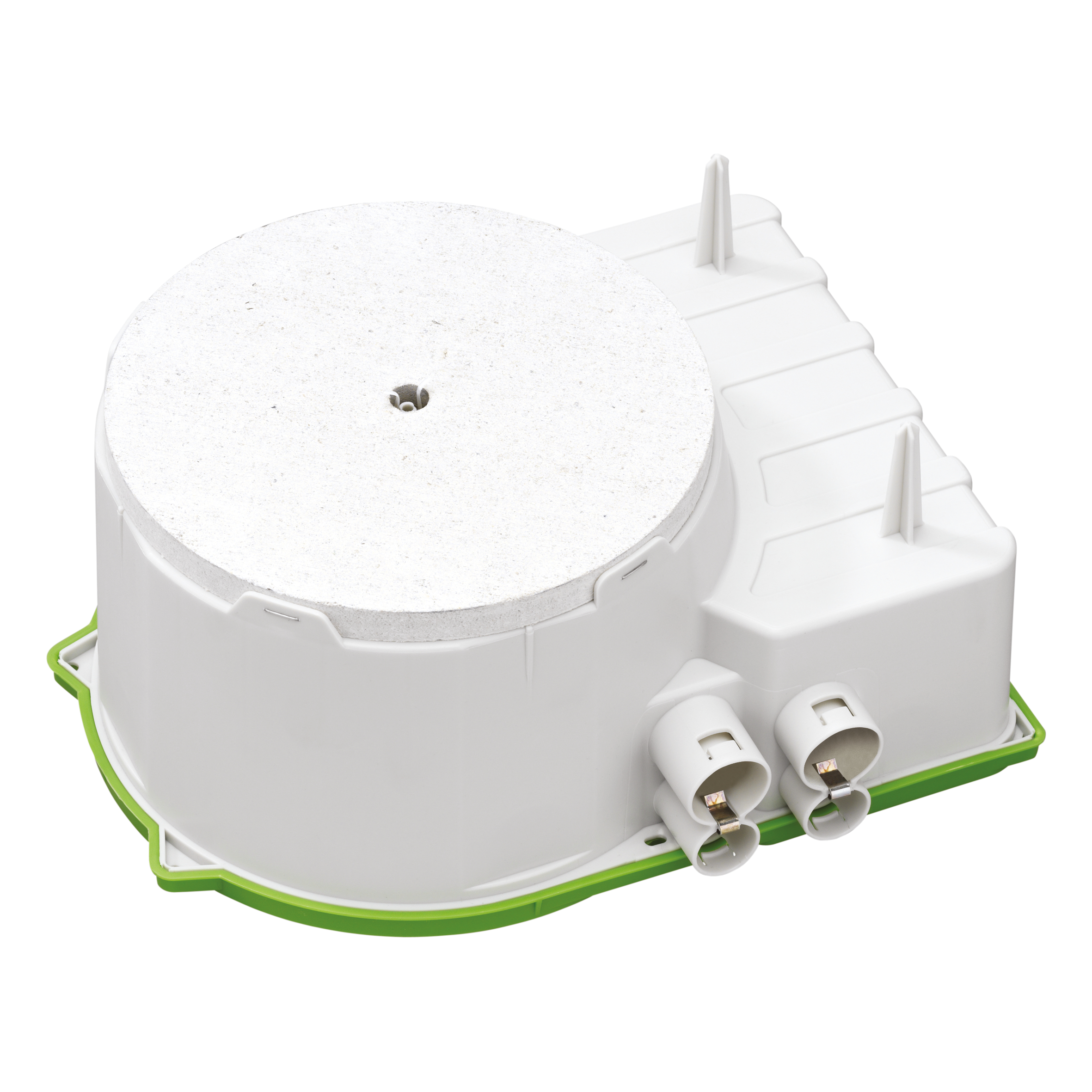

97660401 IBTronic XL H 185 F
Код товара: 92071
Ціна за запитом
Enclosure, Type of protection IPX4, Suitable for concrete construction, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
Enclosure, for prefabricated construction, for the installation of VDE-tested luminaires in accordance with DIN EN 60598 (VDE 0711), and with F-identification or MM-identification, maximum installation depth LV luminaires: 105mm, HV lights: 110mm, lamp output max. 50W / LED 25W, with additional connection space, (e.g. for installing an electronic safety transformer up to max. 150 VA), protection class IPX4, rated insulation voltage: 400V AC, Halogen free, Outlet aperture: Fermacell(R) plasterboard, variable to max. Ø 150mm, 8 combi-conduit entries 4 x M20, 4 x M25, integrated conduit stopper and strain relief for conduits M20, M25, adhesive fixing or nail installation, integrated conduit adapter, sealing range M20-M25
Dimensions: 255 x 280 x 130mm
International product number (GTIN): 4013902966486
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 97660401
Manufacturer type description: IBTronic XL H 185 F
Ключові слова: Betoninstallationssystem, Concrete installation system, Beton, concrete, Betoneinbau, concrete installation, Leuchteneinbau, installation in luminaires, Lautsprechergehäuse, speaker housing
Special product status:
Classification system: ETIM-9.0
Group reference: EC000414
