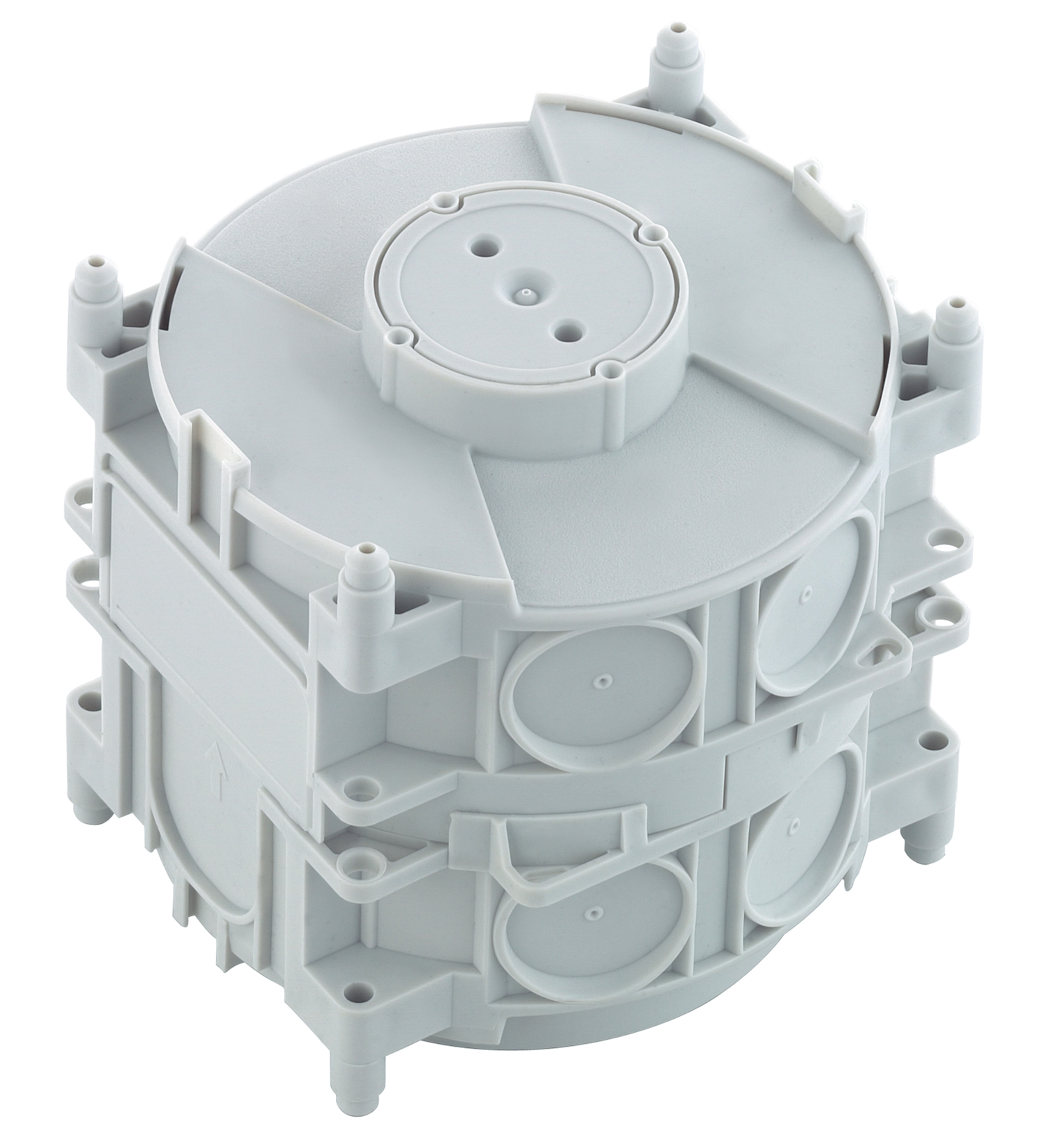

97610301 IBTronic H120-S1-0

Installation housing, for site cast or prefabricated concrete structures, for the installation of LV/HV/LED-luminaires and loudspeakers, suitable for adhesive fixing and opposing shuttering, for installation in ceilings from 180mm, wall installation with IBT support spars, for the installation of VDE-approved lights per DIN EN 60598 (VDE 0711), as well as with F identification or MM identification, protection class IP30, rated insulation voltage: 400V AC, Halogen free, Selectable outlet aperture: 1-way receptacle or Ø 108 / 120mm. For the installation of VDE-tested luminaires in accordance with DIN EN 60598 (VDE 0711), and with F-identification or MM-identification, maximum installation depth LV luminaires: 120mm, HV lights: 125mm, lamp output halogen max. 50 W, lamp output, LED max. 20 W
Dimensions: 150 x 150 x 151mm
