01009501 GBZ 252-40
Код товара: 85569
Ціна за запитом

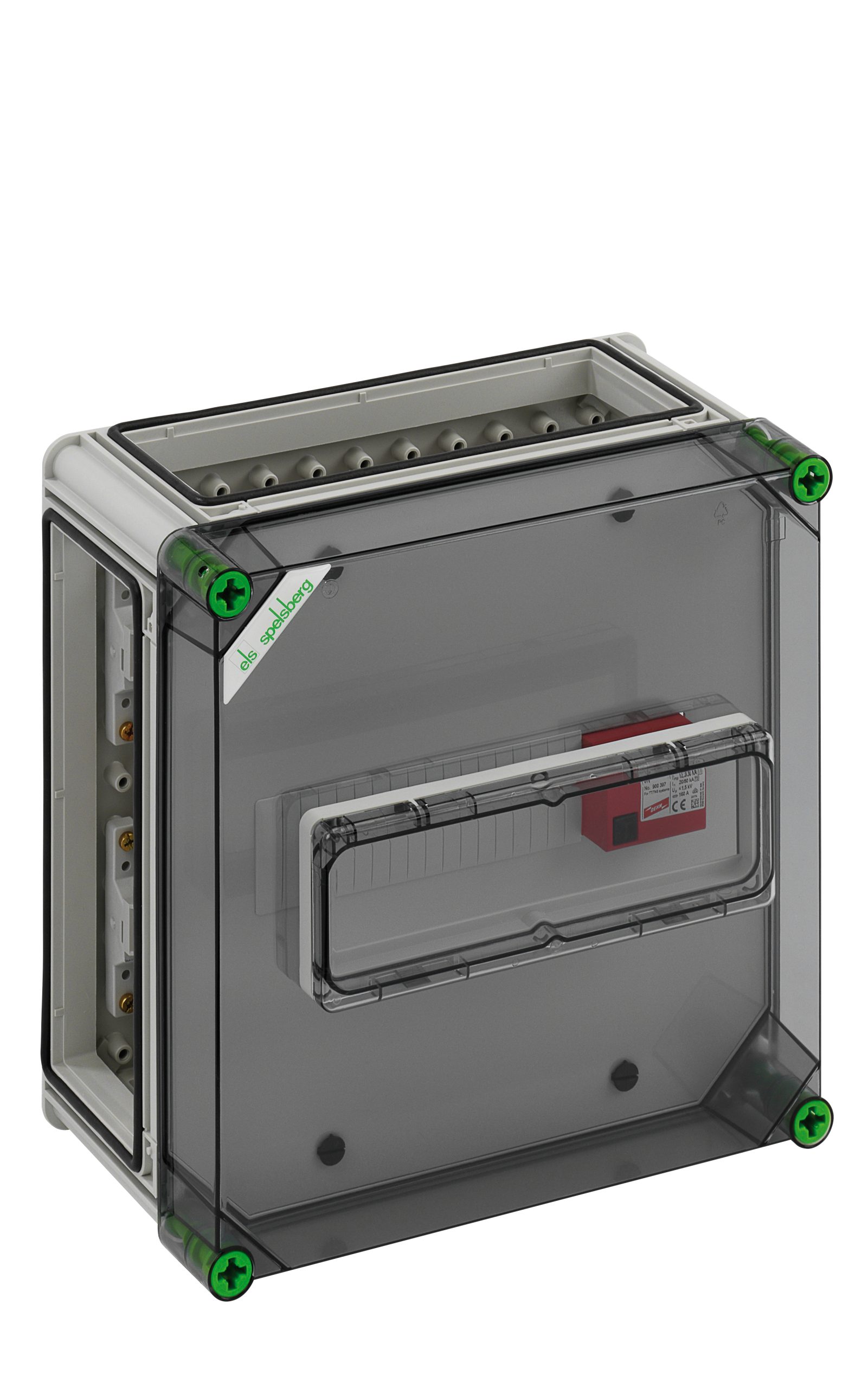

Lightning protection enclosure, transparent, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Busbar housing-Industrial Quality -, 5-pole, 40mm busbar distance, with copper rails, L1…L3: 12 x 5mm, PE/N: 12 x 5mm, with 10 terminals for CU conductors 4-35mm², with contact hazard protective cover, with 12 TE hinged window, sealable, 1x 12 modules cover strips, lockable, 3 x enclosure connectors (GGV), with transparent cover, with lightning current and surge arrester type 1+2 according to EN 61643-11 for main power supply systems, TT/TNS network, for use in buildings with exterior lightning protection, Lightning current: (10/350) 12.5/50kA, highest continuous voltage: 255 V AC, max. per. backup fuse: 160A gG, installed ready for connection on busbar system
Dimensions: 320 x 320 x 179mm
International product number (GTIN): 4013902603503
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 01009501
Manufacturer type description: GBZ 252-40
Ключові слова: Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor, Isolierstoffgehäuse, insulation enclosure
Special product status:
Classification system: ETIM-9.0
Group reference: EC001457
