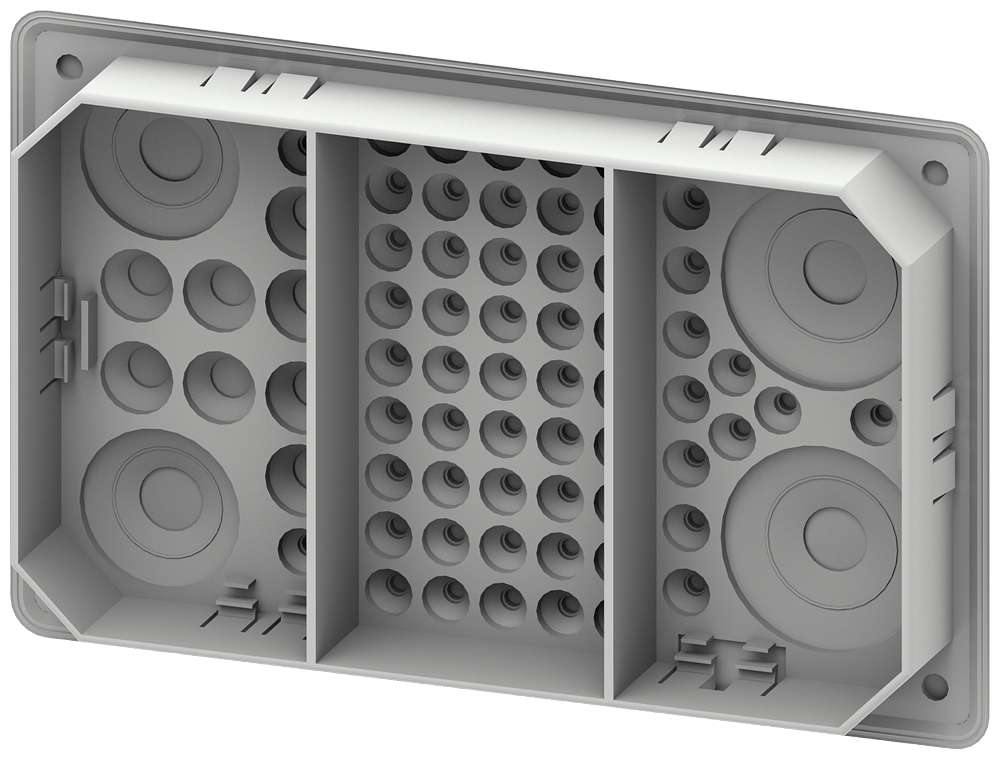

8GK9101-0KK00 ALPHA Cable flange

ALPHA Cable flange 2-components cable flange IP55 for ALPHA 400, 630, 1250 DIN (ALPHA 1250 only roof top) for cable with diameter 58×5-10mm / 2×16-35mm 8×11-16mm / 2×15-45mm The ALPHA distribution board – a complete system of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A.ALPHA distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, the device-specific installation kits can be integrated into different distributor variants. This facilitates easy planning and installation. Equipping is done individually and on a project-specific basis. The SIMARIS configuration software providessupport from planning to documentation of standard and power distribution boards.ALPHA distribution systems are available in a wide range of designs and many special colors. Glass and steel door options are available.ALPHA – the system concept counts.
