80780701 Abox SLK-2,5²
Код товара: 91366
Ціна за запитом

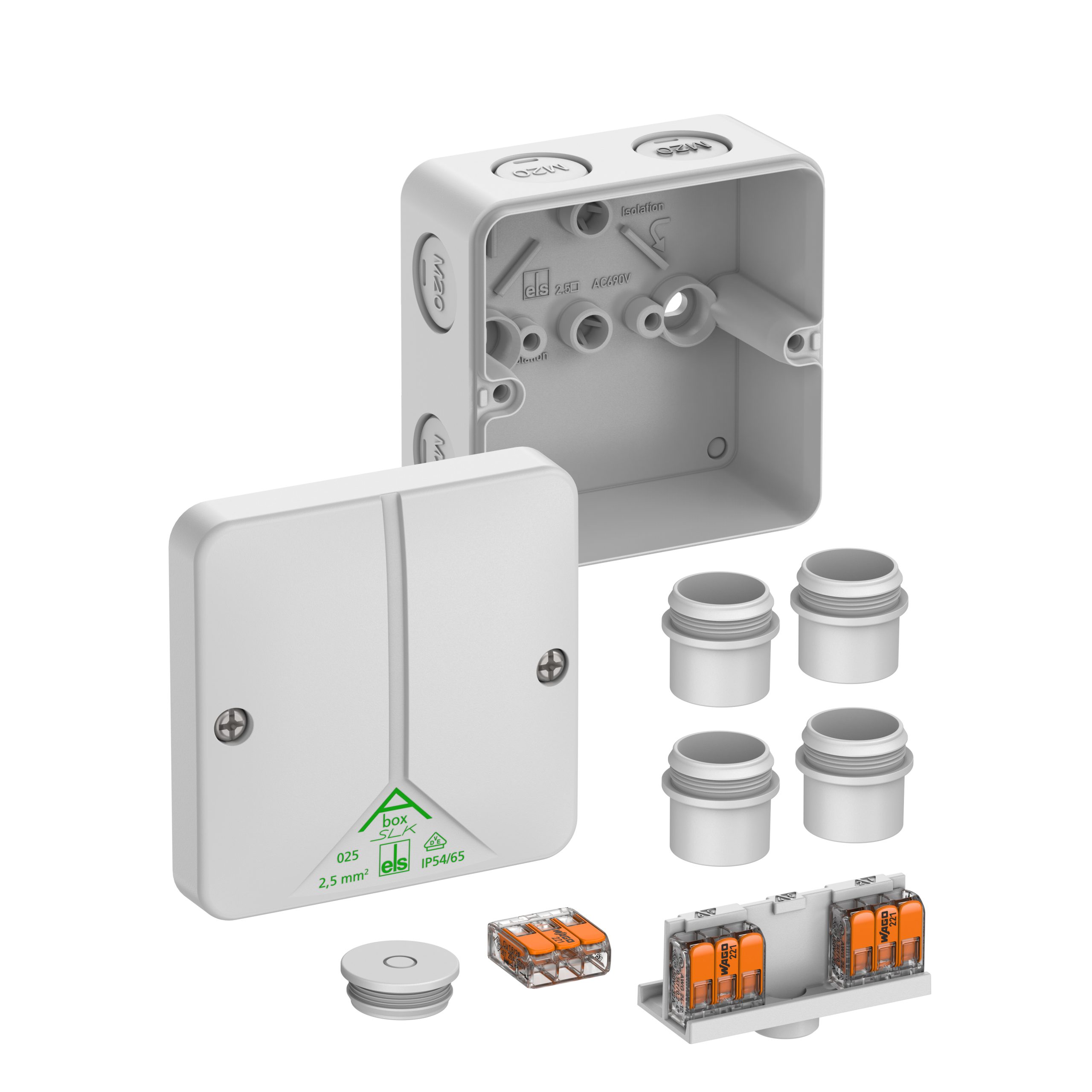

Junction box, Type of protection IP54/IP65 , max. 2,5², Impact strength IK07, Protection class II, Ui 450V AC, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP54/IP65, nominal cross-section 2.5mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20, (1 rear, 7 side), internal fixing points, with screwless terminals for standard indoor installations, grey, In=24 A, with 3 floor-fixed, screwless 3-wire terminal blocks, Wago 221-413-2.5mm², cross-sections that can be clamped per pole: 3 x 0.2 to 2.5mm² rigid Cu and 3 x 0.14 to 2.5mm² flexible Cu
Dimensions: 82 x 82 x 52mm
Accessories supplied: 4 attachment bushes IP54 M20 sealing range 8-13.5mm, 1 sealing plug M20
International product number (GTIN): 4013902668984
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80780701
Manufacturer type description: Abox SLK-2,5²
Ключові слова: Schraubenlos, Screwless, Wago 221, Wago 221, abx, abx, aox, aox, Klemmenkasten, Terminal box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
