87041101 Abox 700-70²/5
Код товара: 91645
Ціна за запитом
Junction box, Type of protection IP54/IP65 , Max. conductor cross section 70², Impact strength IK07, Protection class II, Ui 690V AC, Halogen free
| Виробник |
|---|

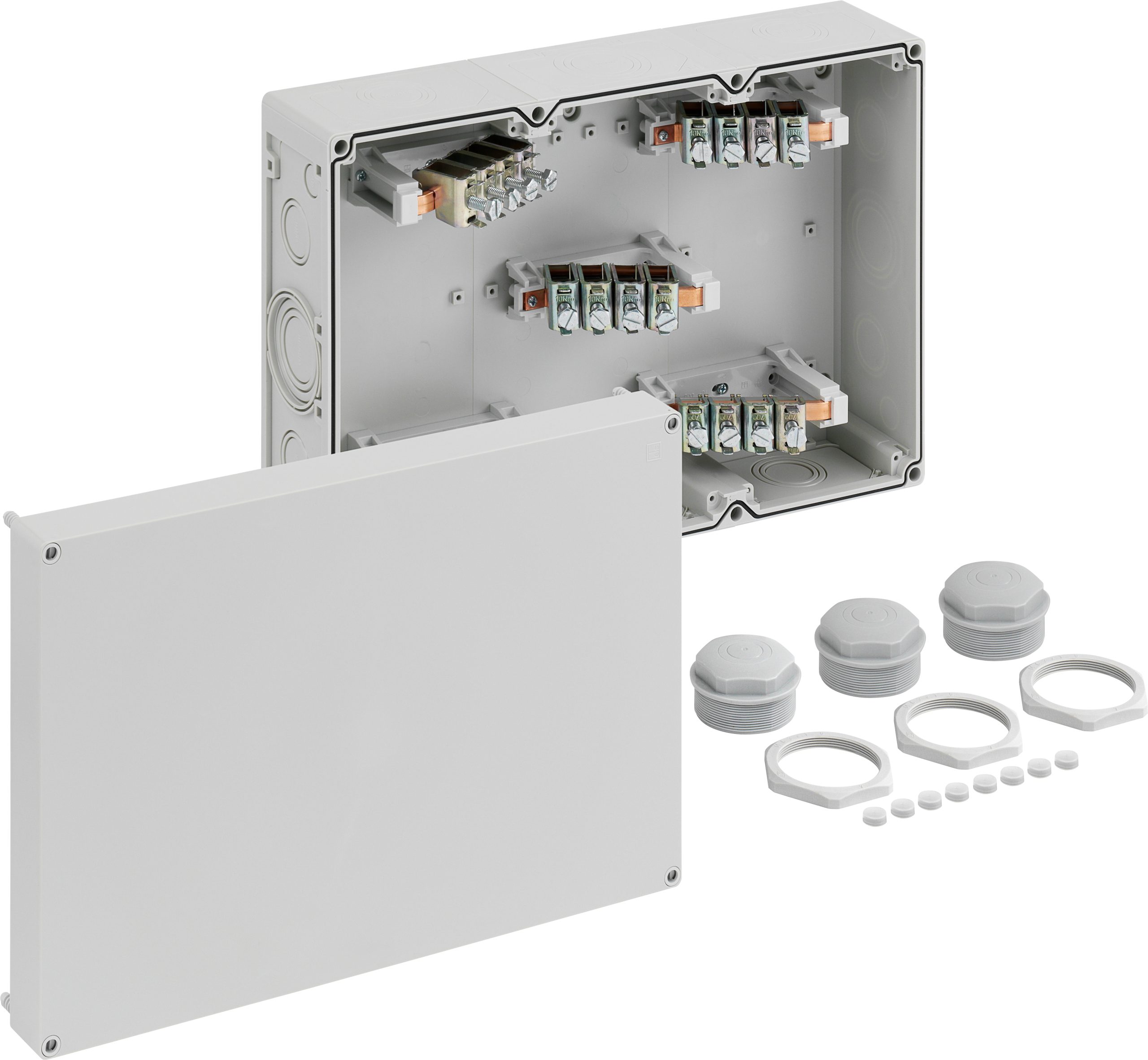

Junction box, protection class IP54/IP65, nominal cross-section 70mm², Ui=690 V AC, knockouts, M20/M32/M40/M50/M63, (16 side), internal fixing points, for standard indoor installations, grey, with screw terminal, 5-pole-70² (16-70²)
Dimensions: 300 x 450 x 132mm
Accessories supplied: 3 twist nipples with locknuts IP54 M63 sealing range 24-43mm
International product number (GTIN): 4013902641925
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 87041101
Manufacturer type description: Abox 700-70²/5
Ключові слова: Hensel K 2405, Hensel K 2405, Hensel K 1205, Hensel K 1205, abx, abx, aox, aox, Klemmenkasten, Terminal box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
