80412001 Abox 040-4²/w
Код товара: 91266
Ціна за запитом

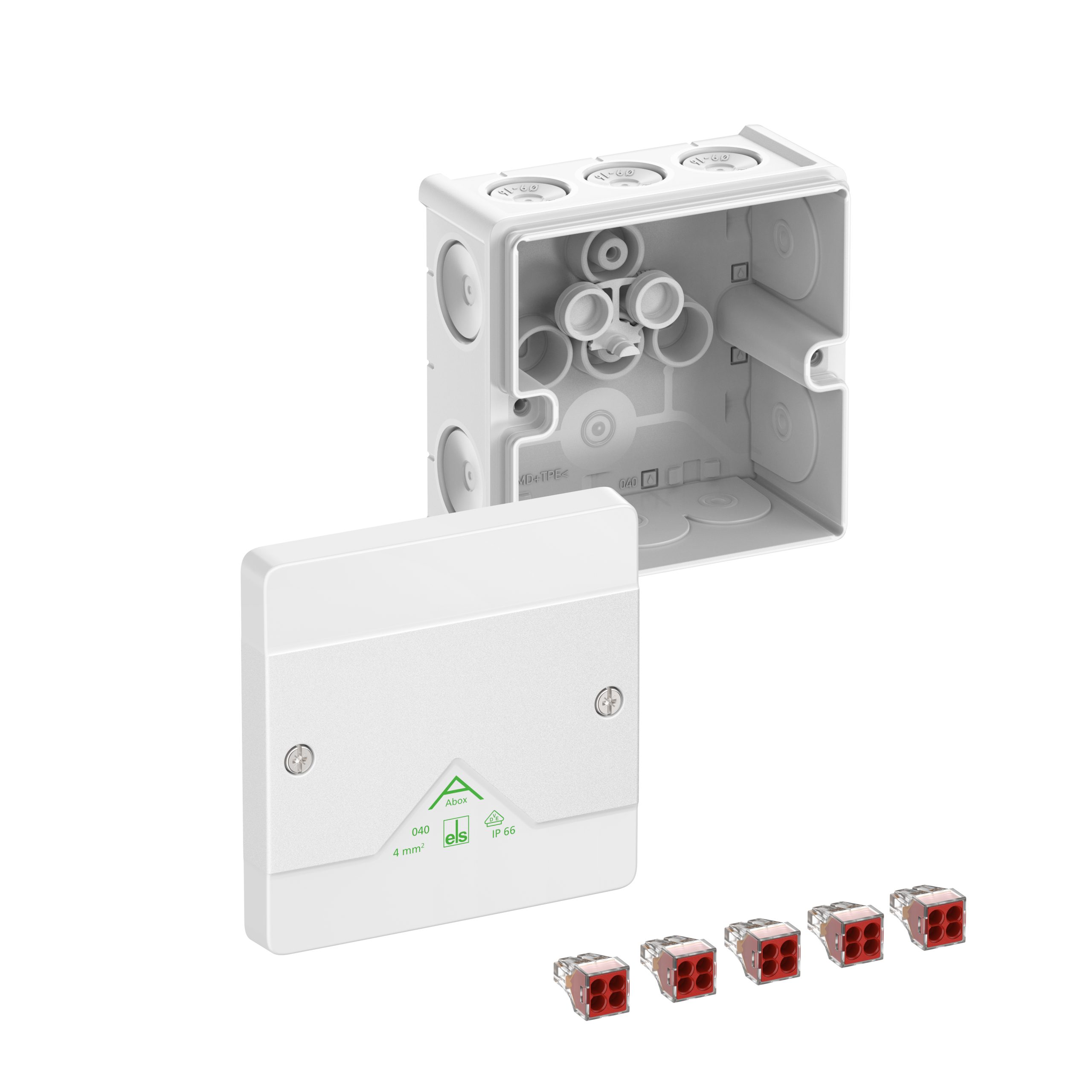

Junction box, Type of protection IP66, max. 4², Impact strength IK07, Protection class II, Ui 400V AC, Ui 400V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, nominal cross-section 4mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25, sealing range 4-21mm, (1 rear, 10 side), internal fixing points, for standard indoor and protected outdoor installations, white, Ui=400 V AC, In=32 A, with 5 screwless 4-wire terminals, Wago 773-604, max. nominal cross-section in accordance with DIN EN 60998: 4mm², clampable cross-sections per pole: 4 x 1.5-4.0mm² rigid Cu/Al (follow installation instructions)
Dimensions: 102 x 102 x 57mm
International product number (GTIN): 4013902661534
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80412001
Manufacturer type description: Abox 040-4²/w
Ключові слова: abx, abx, aox, aox, Verbindungskasten, Junction boxes, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
