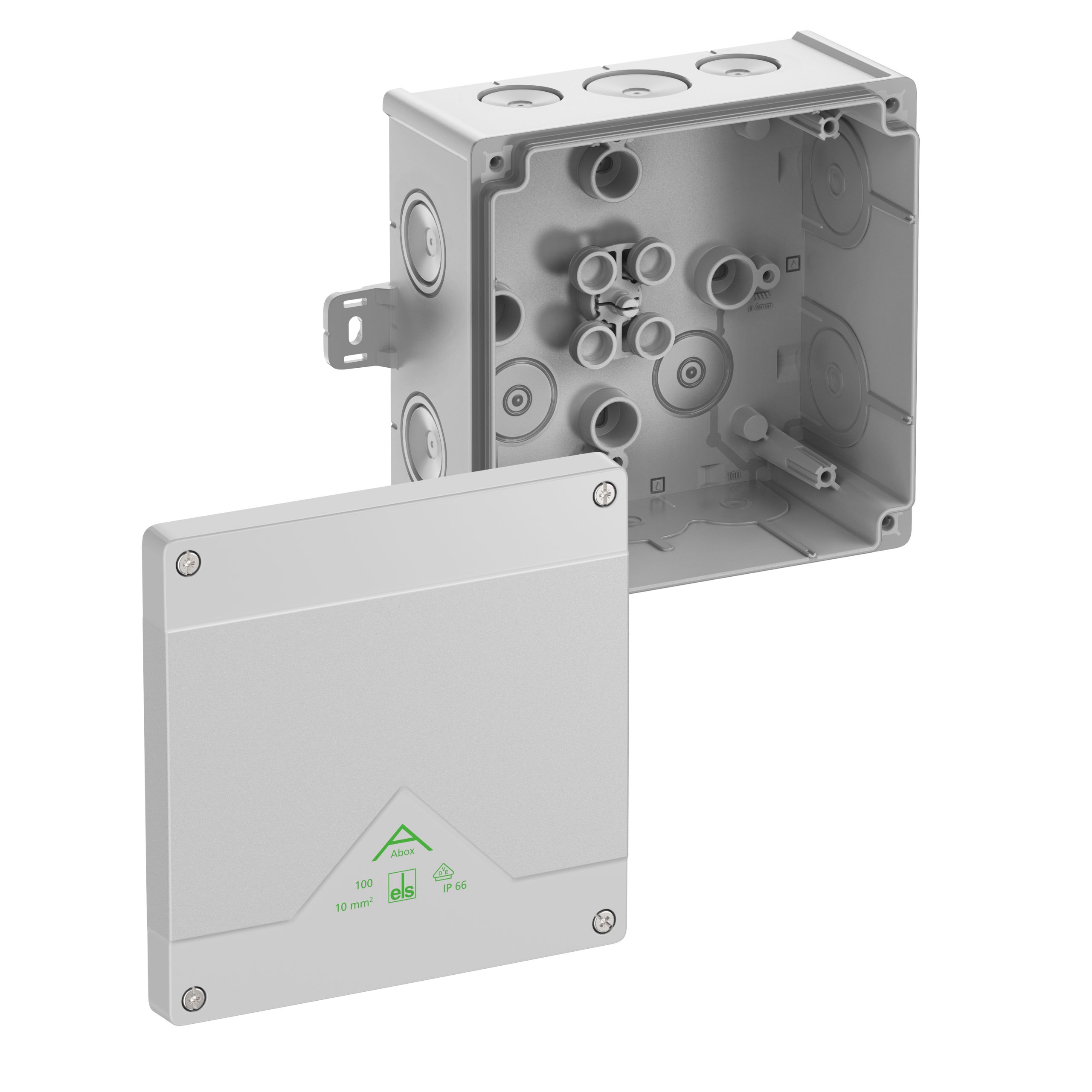

81040101 Abox 100 AB-L
Код товара: 91390
Ціна за запитом
Junction box, Type of protection IP66, max. 10², Impact strength IK07, Protection class II, Ui 1000V AC, Ui 1000V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, nominal cross-section 10mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M20/M25/M32, sealing range 8-28mm, (2 rear, 10 side), external fixing lugs, for standard indoor and protected outdoor installations, grey, Ui=1000 V AC, without terminals
Dimensions: 152 x 152 x 80mm
International product number (GTIN): 4013902660513
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 81040101
Manufacturer type description: Abox 100 AB-L
Ключові слова: abx, abx, aox, aox, Verbindungskasten, Junction boxes, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
