80247001 Abox SLK-2,5²
Код товара: 91216
Ціна за запитом

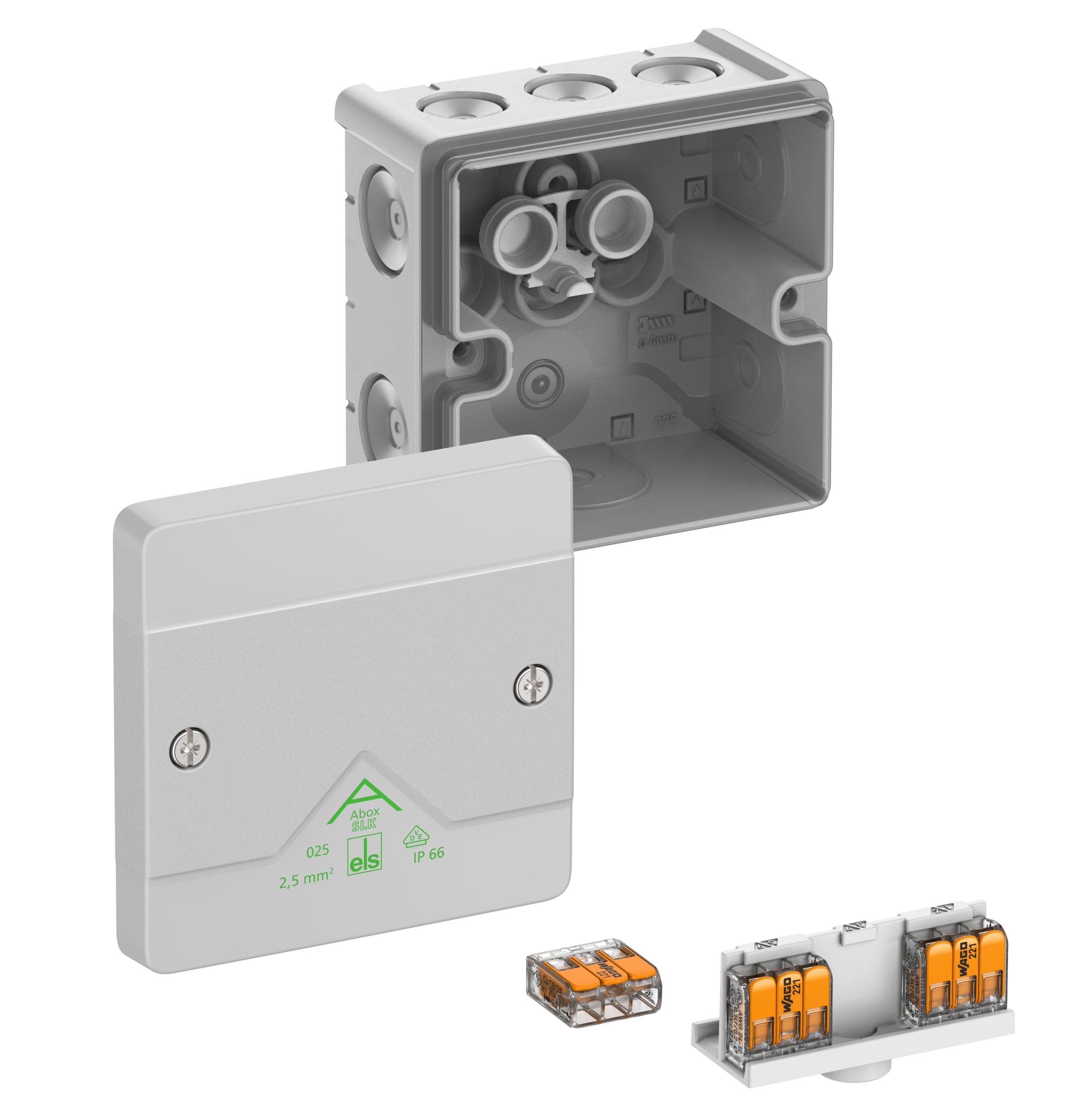

Junction box, Type of protection IP66, max. 2,5², Impact strength IK07, Protection class II, Ui 450V AC, Ui 450V DC, DLG, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP66, nominal cross-section 2.5mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), self-sealing, soft insertion membranes, M16/M20, sealing range 4-16mm, (1 rear, 8 side), internal fixing points, with screwless terminals for standard indoor and protected outdoor installations, grey, In=24 A, with 3 floor-fixed, screwless 3-wire terminals, Wago 221-413-2.5mm², clampable cross-sections per pole: 3 x 0.2 to 2.5mm² rigid Cu and 3 x 0.14 to 2.5mm² flexible Cu
Dimensions: 87 x 87 x 52mm
International product number (GTIN): 4013902661893
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 80247001
Manufacturer type description: Abox SLK-2,5²
Ключові слова: Schraubenlos, Screwless, Wago 221, Wago 221, abx, abx, aox, aox, Verbindungskasten, Junction boxes
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
