81240701 Abox m 040 AB-4²
Код товара: 91423
Ціна за запитом
Junction box, Type of protection IP54/IP65 , Max. conductor cross section 4², Impact strength IK07, Protection class II, Ui 690V AC, VDE, Halogen free
| Виробник |
|---|

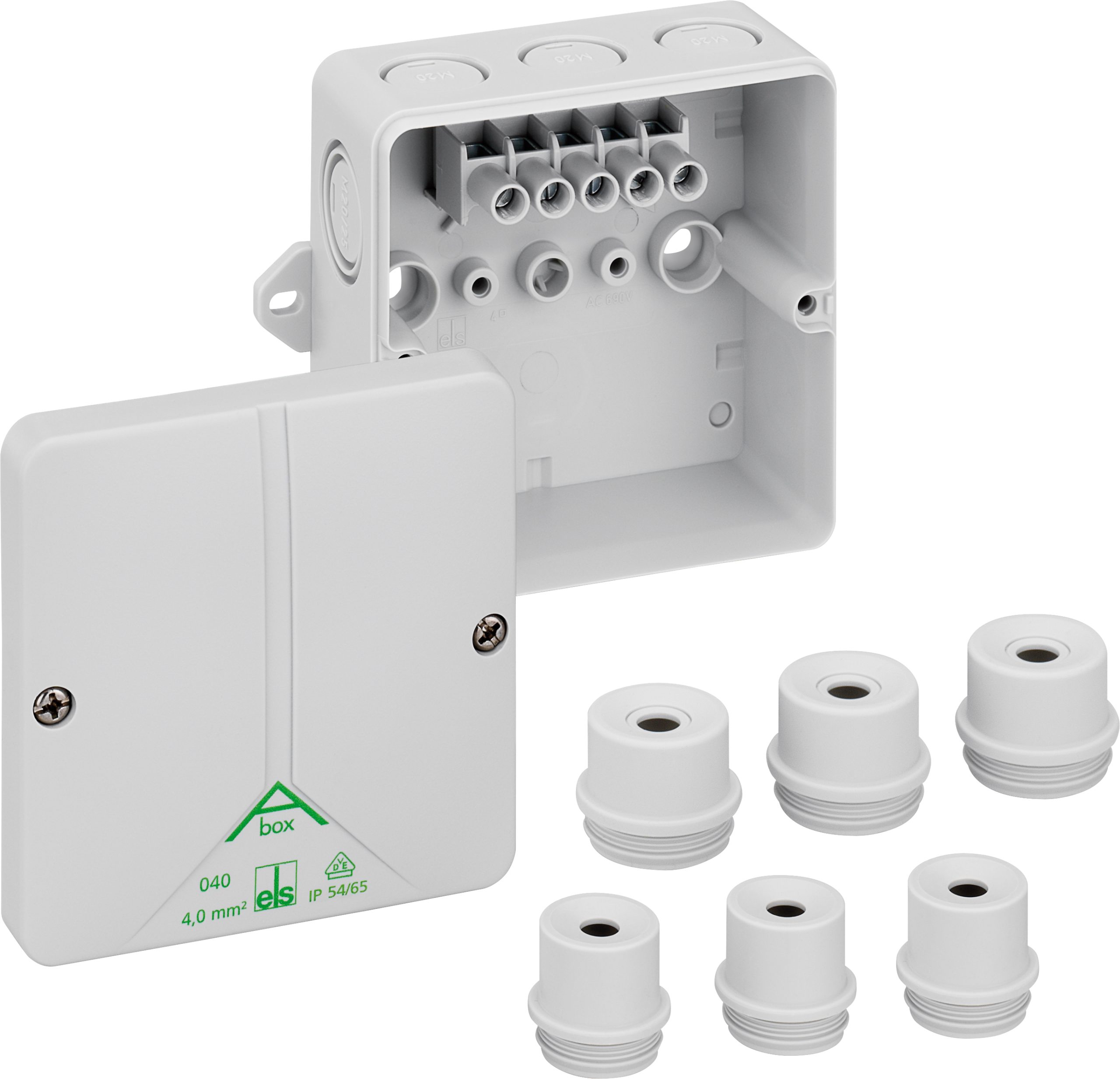

Junction box, protection class IP54/IP65, nominal cross-section 4mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), knockouts, M20/M25, (1 rear, 8 side), external fixing lugs, for standard indoor installations, grey, with screw terminal, 5-pole-2.5/4mm² (4 x 1.5² / 4 x 2.5² / 4 x 4²)
Dimensions: 94 x 94 x 57mm
Accessories supplied: 3 attachment bushes IP54 M20 sealing range 8-13.5mm, 3 attachment bushes IP54 M25 sealing range 9-18.5mm
International product number (GTIN): 4013902532391
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 81240701
Manufacturer type description: Abox m 040 AB-4²
Ключові слова: abx, abx, aox, aox, Klemmenkasten, Terminal box, Abox, Abox, Verbindungsdose, Junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
