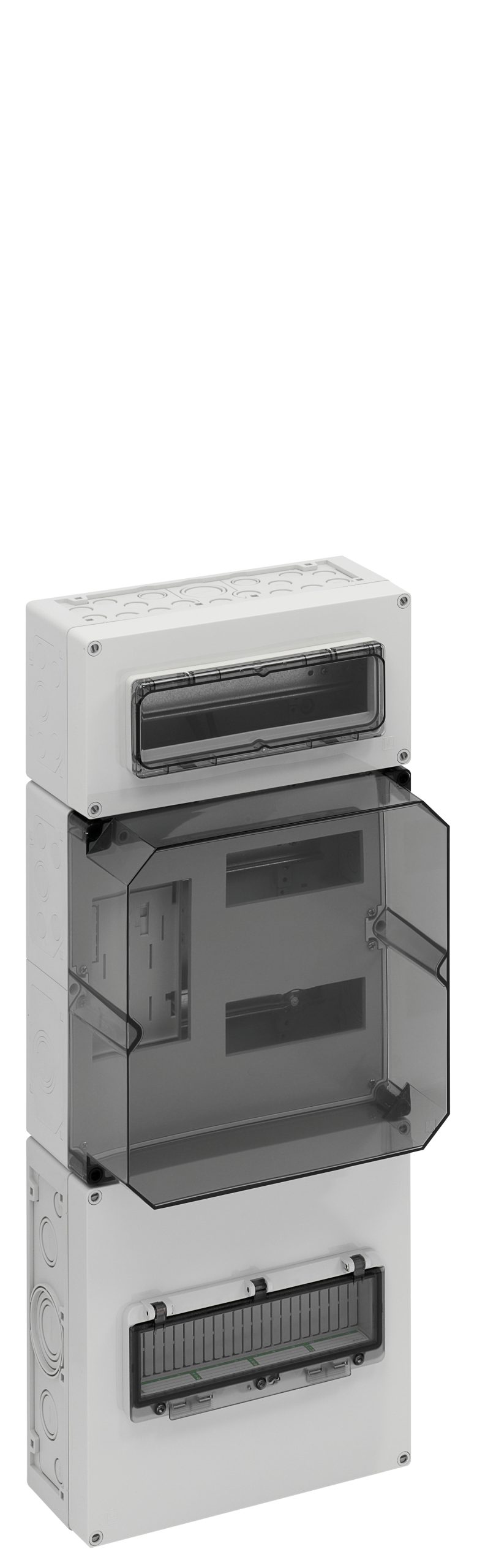

75934001 ZVi 7530-eHZ

Meter distribution in multiple box-type design according to DIN EN 61439-2/-3, standard version sealable, for the surface mounting in the non-measured area, device installation surfaces according to DIN 43870-1, meter connection lines 5-pole for TN-S networks, use according to the individual release by the responsible operator, with closing and insulating seals, with included ventilation seal (IPx4) to reduce condensate water, with blanking plug, with insulating seals, with enclosed ventilation plug IP44 for reduction of condensation water, Upper connection space, 150mm, equipped with 35mm standard rail with hinged window 12TE for rail-mounted device, Meter field, 300mm, with transparent cover, with 1 BKE-I for eHZ, with the possibility for the installation of rail-mounted devices, 2 x 7 modules, with sealable shock protection cover, Lower connection space, 300mm, standard version sealable, with 35mm standard rail for automatic main circuit breakers, with PE/N double terminals, with hinged window 12 modules for layman operation of the automatic main circuit breakers and additional space for overvoltage protection devices, line feed-through via cable gland (IP65, accessories) or stepped nipple M40 (IP55, included)
Dimensions: 300 x 750 x 210mm
