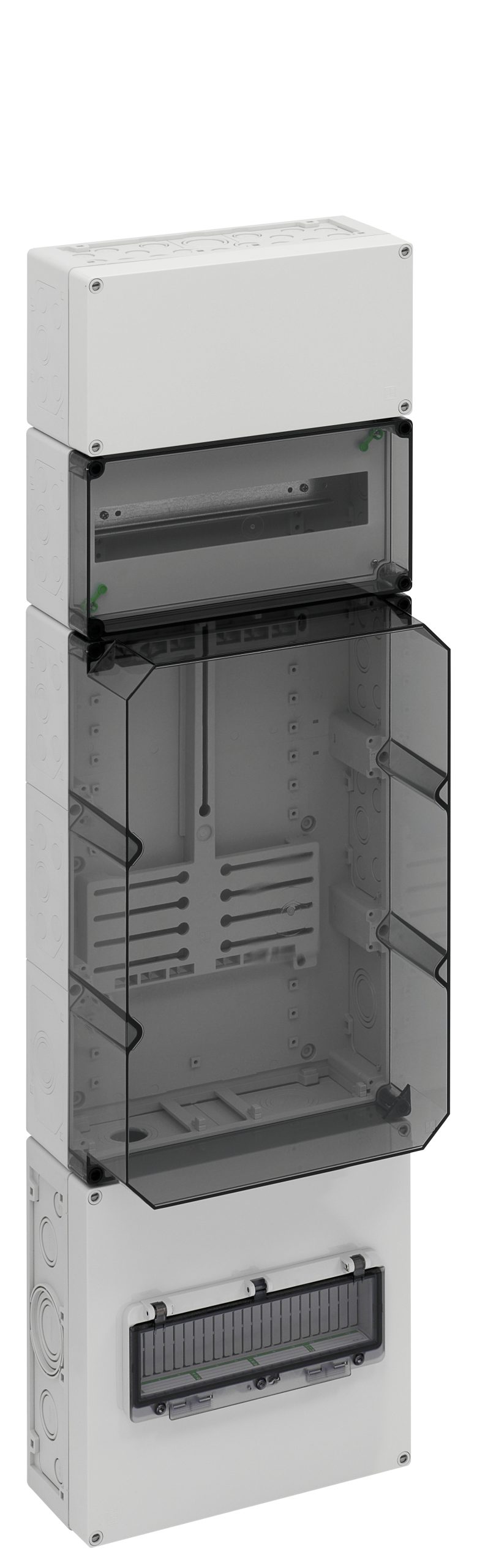

75912001 ZVi 10530

Meter distribution in multiple box-type design according to DIN EN 61439-2/-3, standard version sealable, for the surface mounting in the non-measured area, device installation surfaces according to DIN 43870-1, meter connection lines 5-pole for TN-S networks, use according to the individual release by the responsible operator, with closing and insulating seals, with included ventilation seal (IPx4) to reduce condensate water, with blanking plug, with enclosed ventilation plug IP44 for reduction of condensation water, with insulating seals, Upper connection space, 150mm, equipped with 35mm standard rail for the support of the main line junction terminal HA 25-53 (accessories), Space for additional applications, 150mm, 12 modules, equipped with 35mm standard rail for the support of additional operation material of the operator, meter operator or metering service providers, with sealable shock protection and transparent cover, Meter field, 450mm, with transparent cover, for 1 meter with three-point mounting, with mounted meter cross for three-phase meter and meter fastening screws, fastening dimensions according to DIN 43870-2, Lower connection space, 300mm, standard version sealable, with 35mm standard rail for automatic main circuit breakers, with PE/N double terminals, with hinged window 12 modules for layman operation of the automatic main circuit breakers and additional space for overvoltage protection devices, line feed-through via cable gland (IP65, accessories) or stepped nipple M40 (IP55, included)
Dimensions: 300 x 1050 x 210mm
