74900501 ZKi 1-f
Код товара: 90780
Ціна за запитом
Meter housing, Type of protection IP54/IP65 , Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|

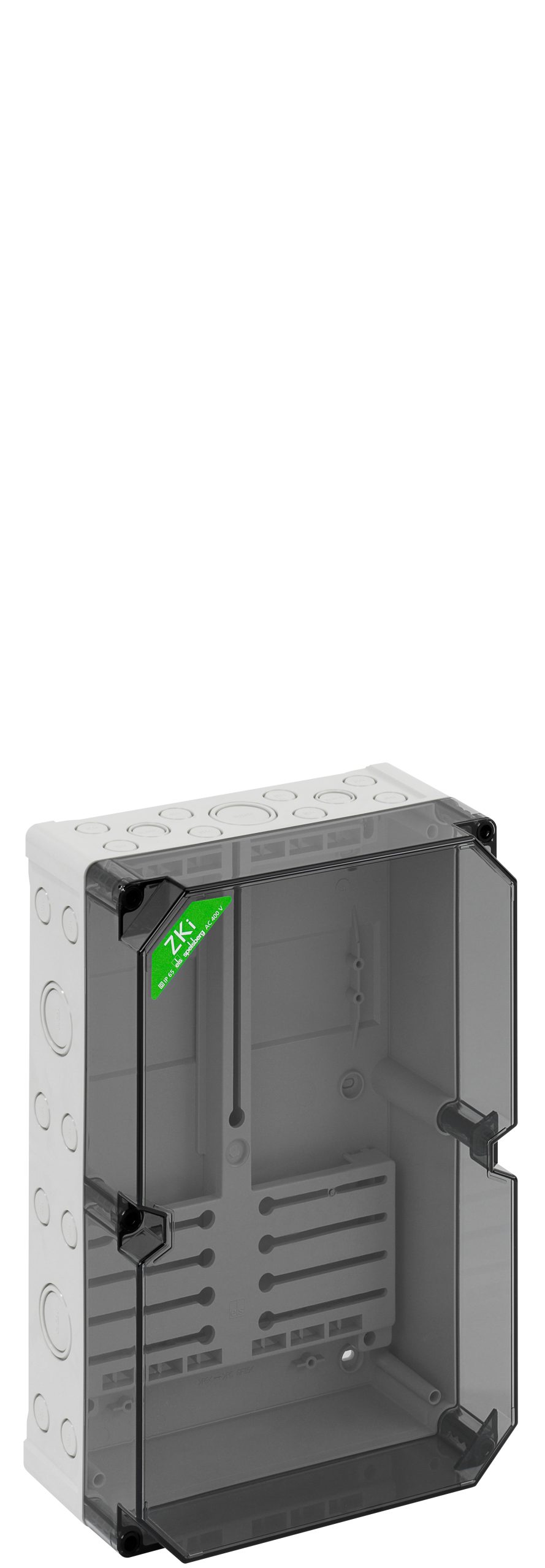

Meter enclosure-Industrial Quality -, with transparent cover, standard version sealable, with mounted meter cross and meter fixing screws, with double membrane seals, sealing and insulating plugs, Suitable for ripple control receivers according to DIN 43861-2, for meter with three-point mounting and a depth of max. 80mm
Dimensions: 250 x 370 x 137mm
International product number (GTIN): 4013902404193
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 74900501
Manufacturer type description: ZKi 1-f
Ключові слова: Zählergehäuse, Meter housing, Kunststoffgehäuse, Plastic enclosure, Zählerkasten, Meter boxes, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000248
