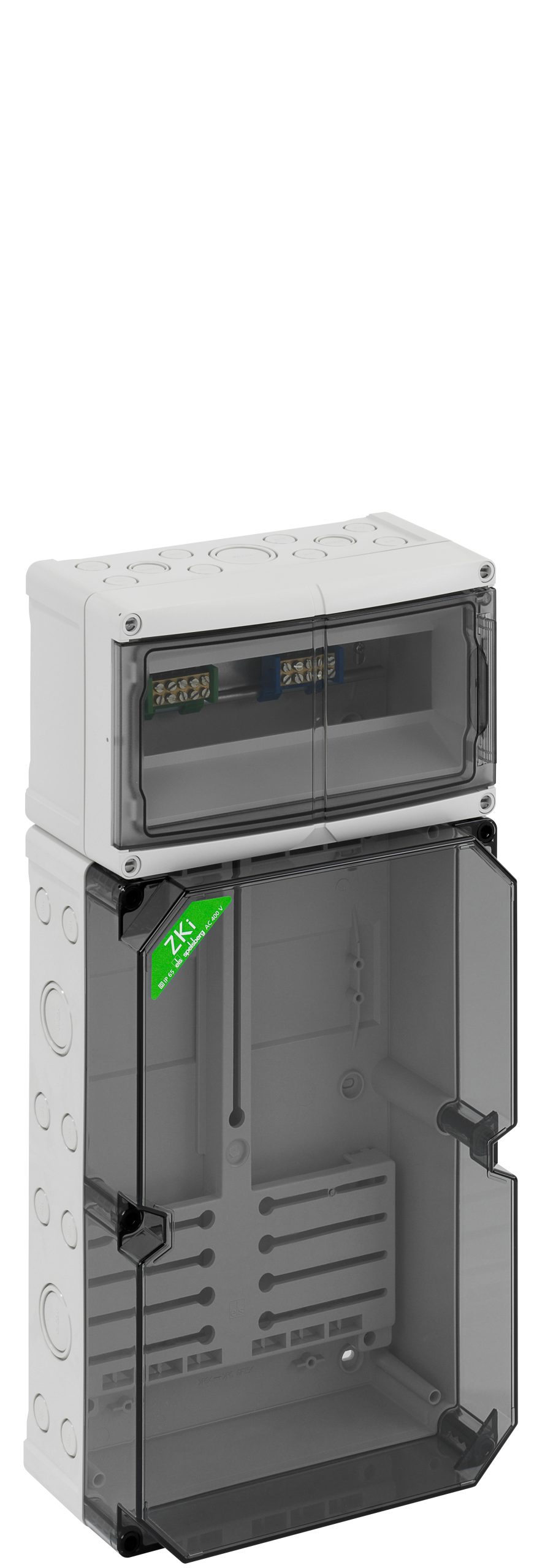

74901501 ZKi 11-f
Код товара: 90789
Ціна за запитом
Meter housing, Type of protection IP54/IP65 , Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Meter enclosure-Industrial Quality -, with transparent cover, standard version sealable, with mounted meter cross and meter fixing screws, standard version sealable consumer space at the top, with 35mm standard rails and PE/N double terminals, with double membrane seals, sealing and insulating plugs, Suitable for ripple control receivers according to DIN 43861-2, for meter with three-point mounting and a depth of max. 80mm
Dimensions: 250 x 520 x 137mm
International product number (GTIN): 4013902404216
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 74901501
Manufacturer type description: ZKi 11-f
Ключові слова: Zählergehäuse, Meter housing, Kunststoffgehäuse, Plastic enclosure, Zählerkasten, Meter boxes, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000248
