74310201 AKi-R 4/102-SL
Код товара: 90717
Ціна за запитом
Terminal block enclosure, Type of protection IP65, max. 4², Impact strength IK08, Protection class II, Ui 400V AC, Halogen free
| Виробник |
|---|

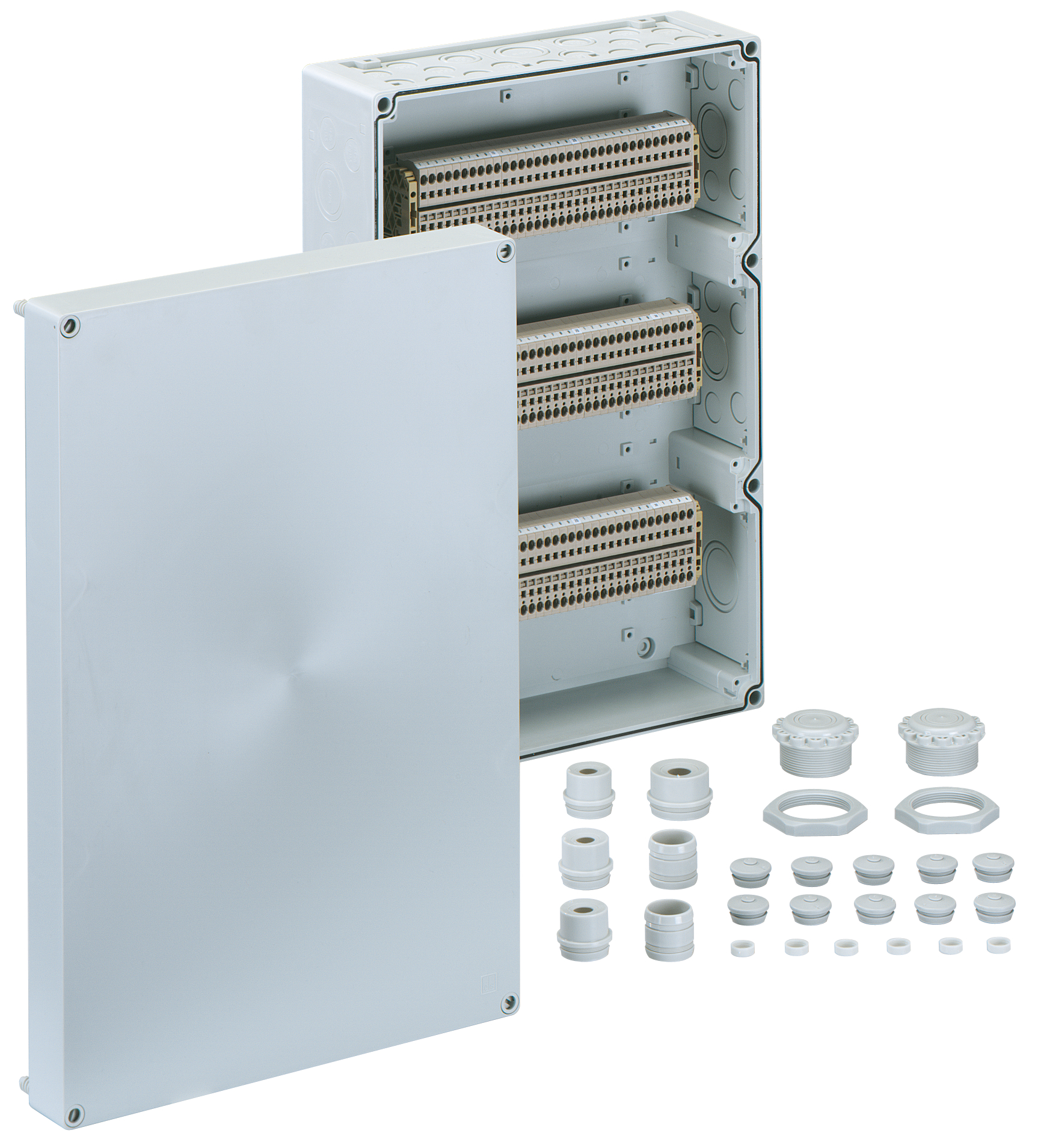

Terminal block enclosure, protection class IP65, nominal cross-section 4mm², Ui=400V AC, Polycarbonate, internal fixing points, for installations in industrial environments and protected outdoor areas, equipped with 102 screwless terminals 4mm³, (type Weidmüller ZDU 4)
Dimensions: 300 x 450 x 132mm
Accessories supplied: 10 Double-membrane seal IP66 M20 sealing range 7-12mm, 2 Double-membrane seals IP66 M25 sealing range 9-16mm, 2 Double-membrane seal M32 sealing range 14-21mm, 1 Double-membrane seal IP66 M40 sealing range 19-28mm
International product number (GTIN): 4013902885756
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 74310201
Manufacturer type description: AKi-R 4/102-SL
Ключові слова: Reihenklemmengehäuse, Terminal block enclosure, Rangierverteiler, terminal board, Klemmengehäuse, terminal housing, Kunststoffgehäuse, Plastic enclosure, Gehäuse bestückt, Enclosure assemble
Special product status:
Classification system: ETIM-9.0
Group reference: EC002713
