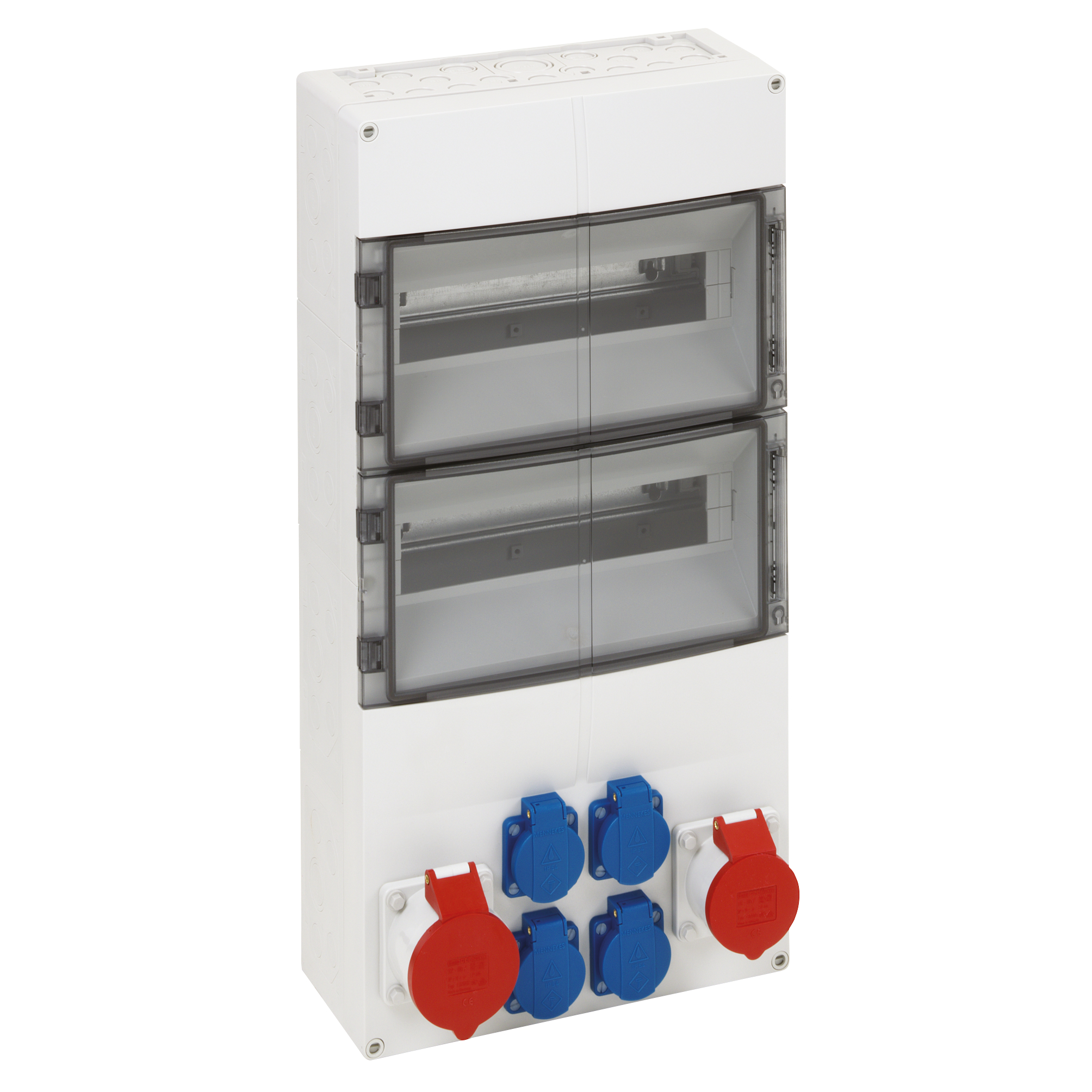

73924101 AKi 28-4S
Код товара: 90617
Ціна за запитом
Socket outlet combination, Type of protection IP44, 28 TE, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
Socket outlet combination, protection class IP44, suitable for installation by the customer of rail mounted devices, with integrated sockets pre-wired to PE/N terminal, high mechanical load capacity, temperature-insensitive, combinable, halogen-free
Cable insertions:
Top: Pre-embossing 15 x M20, 2 x M20/25, 1 x M32/40
Bottom: Pre-embossing 15 x M20, 2 x M20/25, 1 x M32/40
Left: Pre-embossing 16 x M20, 4 x M25/32
Right: Pre-embossing 16 x M20, 4 x M20/25, available modules: 28
equipped with:
- 4 x SCHUKO(R) plug socket (on front), 230V
- 1 x CEE plug socket outlet (on front) 16A, 400V
- 1 x CEE plug socket outlet (on front) 32A, 400V
Dimensions: 300 x 600 x 142mm
Accessories supplied: Double-membrane seals: 1x M20, 1x M25, 1x M32, Attachment bushes: 1x M40, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902937622
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73924101
Manufacturer type description: AKi 28-4S
Ключові слова: Steckdosenkombination, Socket combination, Steckdosenverteiler, Socket distribution box, Steckdosengehäuse, Socket enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
