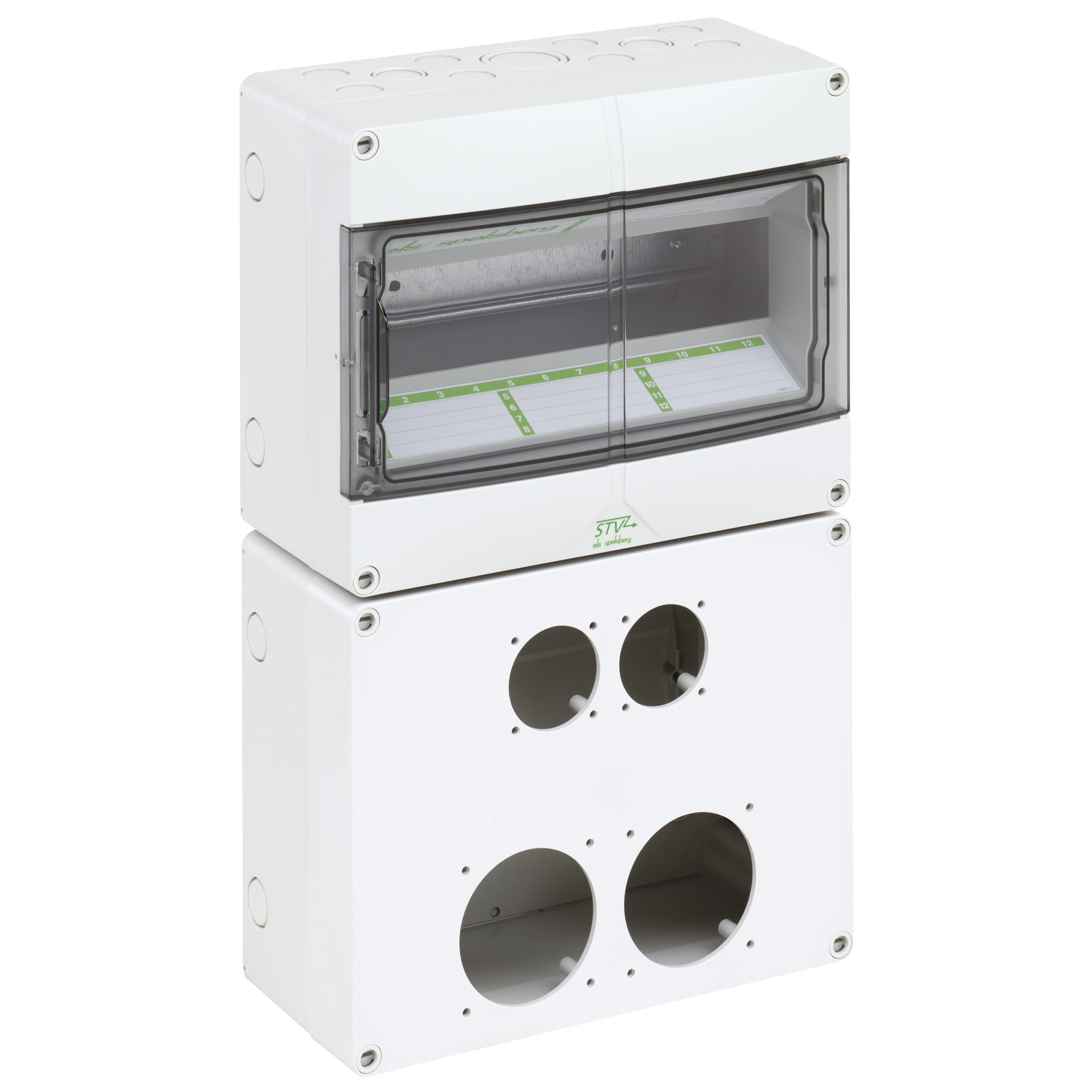

73192201 STV 1222-L
Код товара: 90270
Ціна за запитом
Socket empty enclosure, Type of protection IP44, 12 TE, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
Socket empty enclosure, protection class IP44, suitable for installation of rail mounted devices and extension sockets by the customer, with PE/N terminal, adapters and screws for assembling the sockets, high mechanical impact resistance, non-sensitive to temperature, halogen-free
Cable insertions:
Top: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Bottom: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Left: Pre-embossing 4 x M20
Right: Pre-embossing 4 x M20, available modules: 12
Openings for sockets: 2 x hole for protective contact sockets with diameter of 44.5mm and drill hole distance for vertical/horizontal mounting of 38/38mm (on front), 2 x drill holes for CEE sockets with a diameter of 66.5mm and drill hole distance for vertical/horizontal mounting of 60/60mm (on front)
Dimensions: 250 x 400 x 122mm
Accessories supplied: Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902934737
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73192201
Manufacturer type description: STV 1222-L
Ключові слова: Steckdosenkombination, Socket combination, Steckdosenverteiler, Socket distribution box, Steckdosengehäuse, Socket enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
