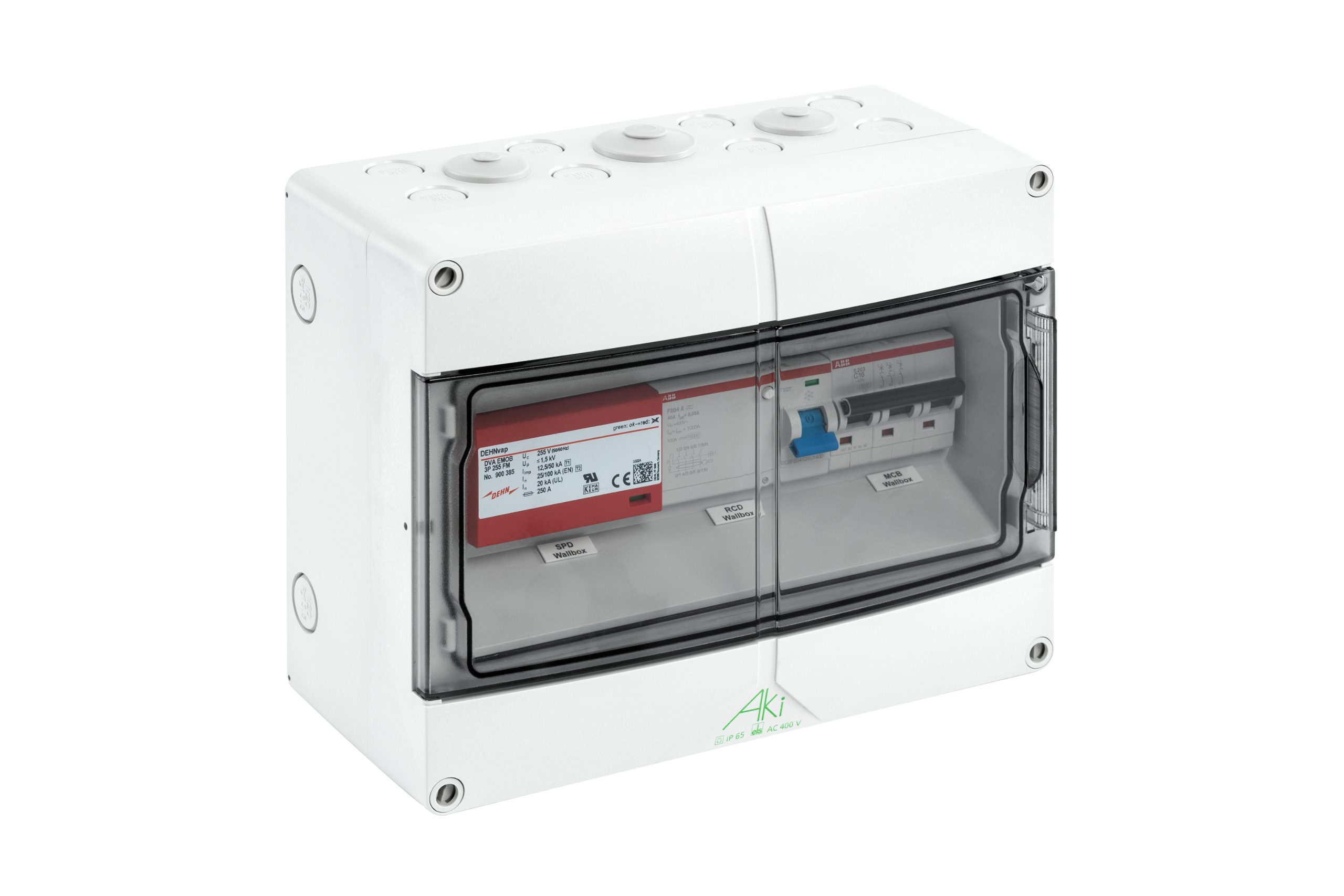

73610201 AKi 12 EMOBIL 11kW-ÜSS
Код товара: 90548
Ціна за запитом
Small distributions boards, grey, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Small distributions boards, protection class IP65, type-tested according to EN 61439-3, cabled ready for connection
Cable insertions:
Top: Knockouts 8 x M20
Bottom: Knockouts 2 x M20, 2 x M20/25, 3 x M32/40
Left: Knockouts 2 x M20
Right: Knockouts 2 x M20
rear: Knockouts 2 x M20/25,
1-row for an 11 kW wallbox with integrated 6mA DC monitoring
equipped with:
- 1 x Miniature circuit breaker C 16 A, 3p
- 1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
- 1 x Surge protection device (SPD) Type 1 + Type 2 for TN-S systems, energy-coordinated protection effect with terminal equipment Type 1 + type 2 + type 3
Dimensions: 250 x 200 x 122mm
International product number (GTIN): 4013902680603
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73610201
Manufacturer type description: AKi 12 EMOBIL 11kW-ÜSS
Ключові слова: Installationskleinverteiler, Distribution board, Überspannungsableiter, Overvoltage conductor, anschlussfertig, Plug-and-play status, AK Kleinverteiler, AK Small-scale distributor, bauartgeprüft, Type-tested
Special product status:
Classification system: ETIM-9.0
Group reference: EC002288
