73140801 STV 1208-K
Код товара: 90243
Ціна за запитом

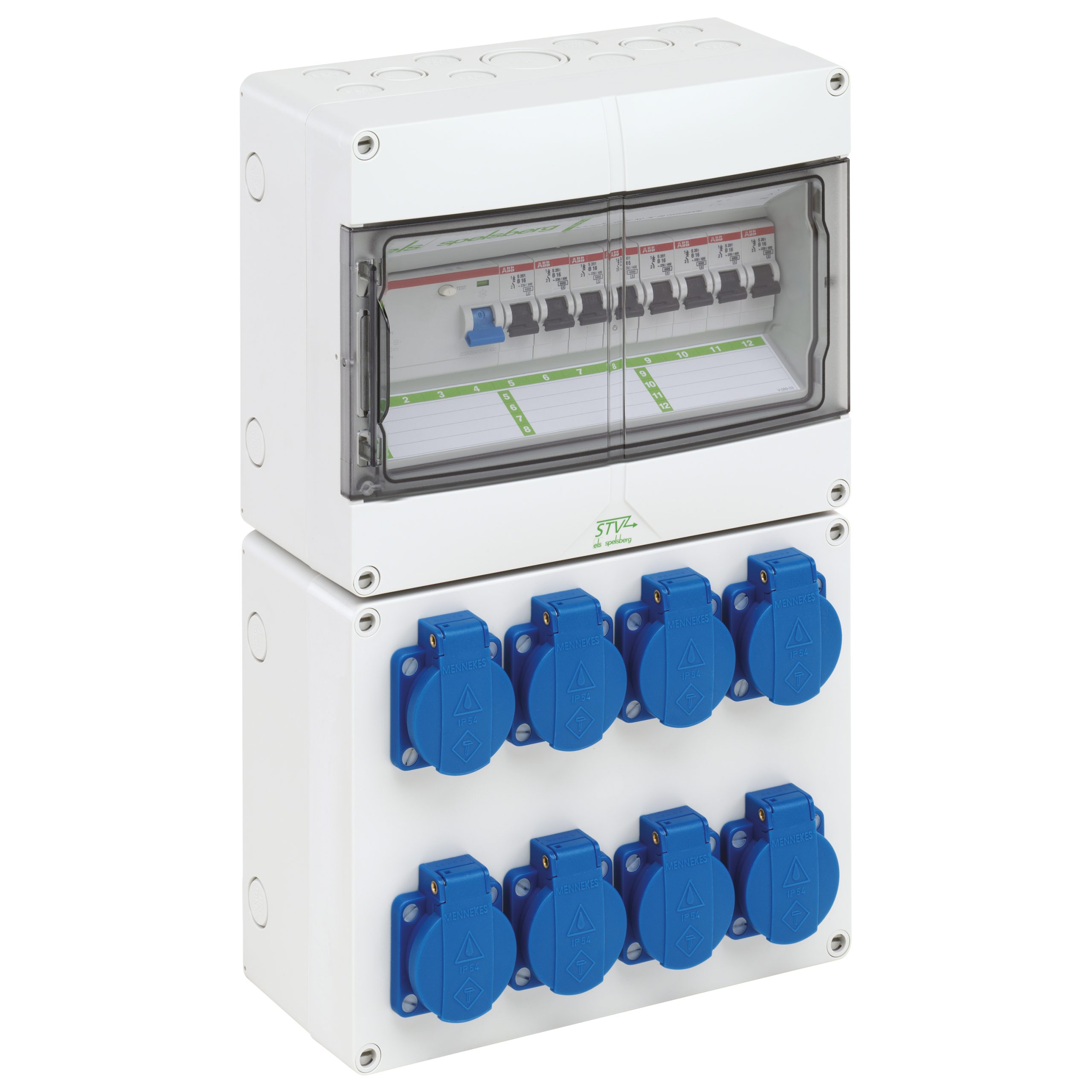

Socket outlet combination, grey, Type of protection IP44, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
Socket outlet combination, protection class IP44, ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined
Cable insertions:
Top: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Bottom: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Left: Pre-embossing 4 x M20
Right: Pre-embossing 4 x M20
Rear: Pre-embossing 4 x M20/25,
equipped with:
- 8 x Miniature circuit breaker B16A, 1-pin
- 1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
- 8 x SCHUKO(R) plug socket (on front), 230V
Dimensions: 250 x 400 x 122mm
Accessories supplied: Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902934720
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73140801
Manufacturer type description: STV 1208-K
Ключові слова: Steckdosenkombination, Socket combination, Steckdosenverteiler, Socket distribution box, Steckdosengehäuse, Socket enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
