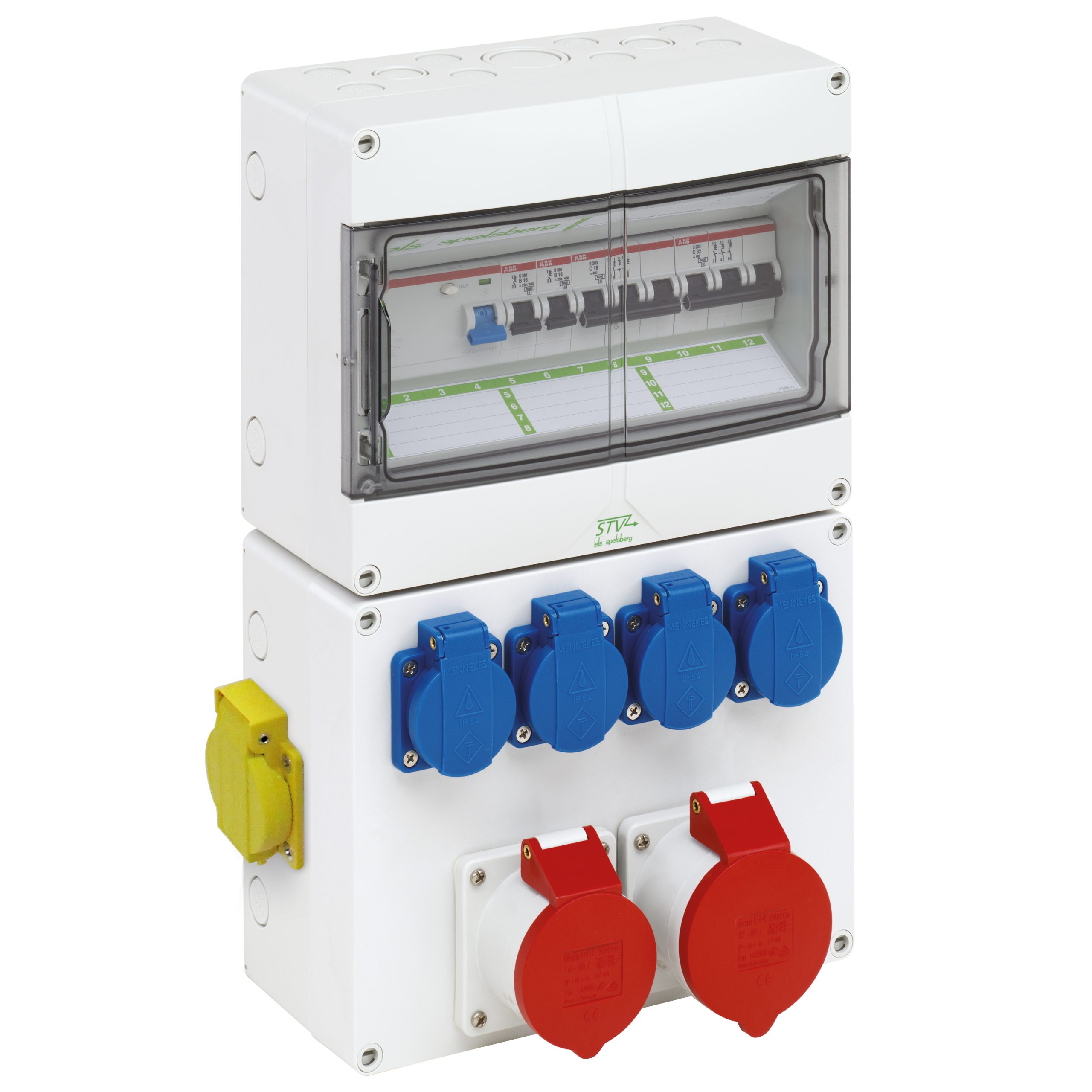

73142421 STV 1224-K-LAN

Socket outlet combination, protection class IP44, ready for connection, according to EN 61439-3, high mechanical strength, temperature-resistant, can be combined
Cable insertions:
Top: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Bottom: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Left: Pre-embossing 4 x M20
Right: Pre-embossing 4 x M20
Rear: Pre-embossing 4 x M20/25,

equipped with:

• 2 x Miniature circuit breaker B16A, 1-pin
• 1 x Miniature circuit breaker C 16 A, 3p
• 1 x Miniature circuit breaker C 32 A, 3p
• 1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
• 4 x SCHUKO(R) plug socket (on front), 230V
• 1 x CEE plug socket outlet (on front) 16A, 400V
• 1 x CEE plug socket outlet (on front) 32A, 400V
• 1 x Data port socket 2 x RJ45 CAT.6 (on side)

Dimensions: 250 x 400 x 122mm
Accessories supplied: Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips
