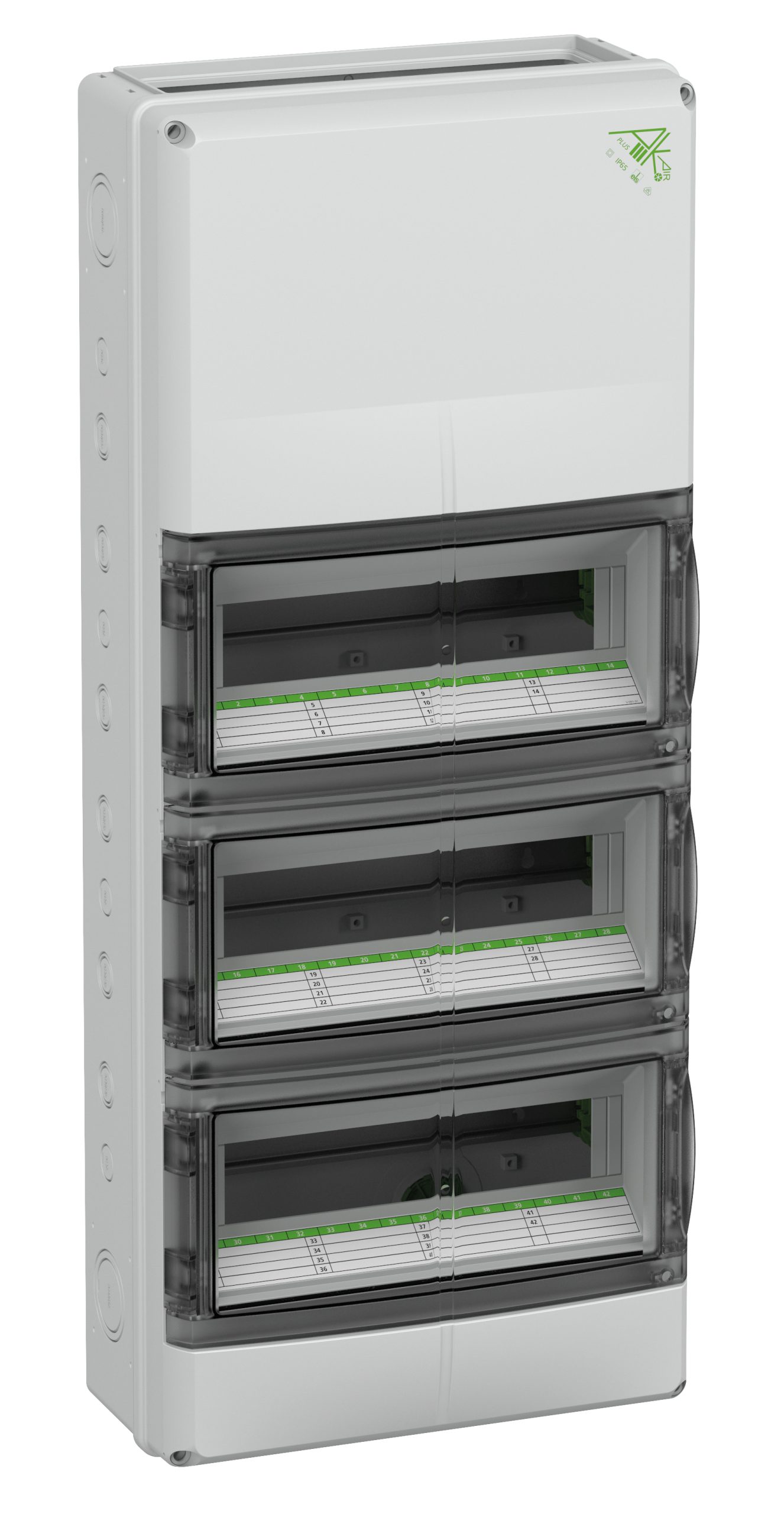

73374252 AK-F 42 Plus UL
Код товара: 90414
Ціна за запитом
Small distributions boards, Type of protection IP65, Impact strength IK08, Protection class II, Un 400V DC, UL, DLG, UL-EU, VDE, Halogen free
| Виробник |
|---|
Small distributions boards, protection class IP65, UL Type Rating 3R, 12/12K, Flange type, with integrated ventilation elements for reducing the formation of condensation, rated operational voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, certified by VDE (DIN EN 60670-1/-24 (VDE 0606-1/-24)), UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), UL-EU (EN 62208), UL-EU (EN 61439-1/-2), UL-EU (EN 61439-1/-3), UL-EU (EN 61439-1 & EN IEC 61439-7), DLG (Ammonia resistance), open top/bottom sides for the use with various flanges or for the combination of several AK-F distributors via combination flange, for installations in the industrial environment and protected outside areas, 3-row, 42 available modules, with extra connection space including 35mm standard rail, without PE/N terminal
Dimensions: 315 x 730 x 155mm
International product number (GTIN): 4013902575251
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73374252
Manufacturer type description: AK-F 42 Plus UL
Ключові слова: Automatengehäuse, Distribution board, Verteiler, Distribution board, Automatenschrank, automate cabinet, Automatenkasten, automate box, Automatenverteiler, distribution board
Special product status:
Classification system: ETIM-9.0
Group reference: EC000214
