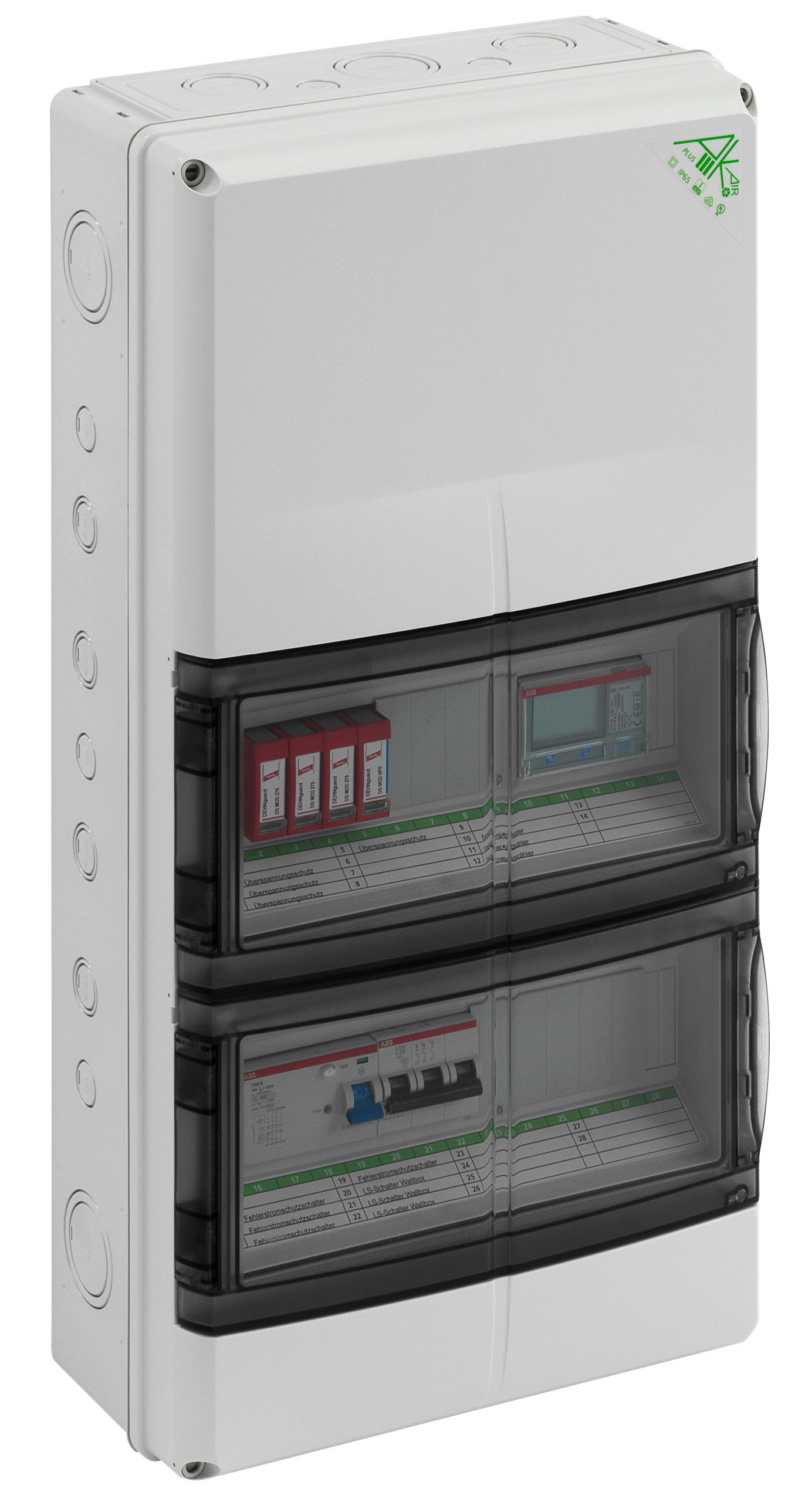

73302101 AK 28+EMOBIL 11kW-A-ÜSS-Z

Small distributions boards, protection class IP65, type-tested to EN 61439-3, prewired ready for connection to input and output terminals 10mm²,

2-row, for 11 kW Wallbox with integrated 6mA DC monitoring

equipped with:

• 1 x Miniature circuit breaker C20A, 3-pole
• 1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
• 1 x Surge protection device (SPD) Type 2 for TT and TN-S systems
• 1 x

  Energy meter for use in 3 or 4 wire systems, max. 65A, MID approved, RS-485 communication over Modbus RTU or EQ Bus

Dimensions: 315 x 600 x 155mm
Accessories supplied: Double membrane seals: 2x M16, 10x M20, 4x M25, 2x M32, 2x M40, cable glands: 1x M20, 2x M40, sealing plugs, cover and labelling strips
