73020401 STK 2834-K163263
Код товара: 90222
Ціна за запитом

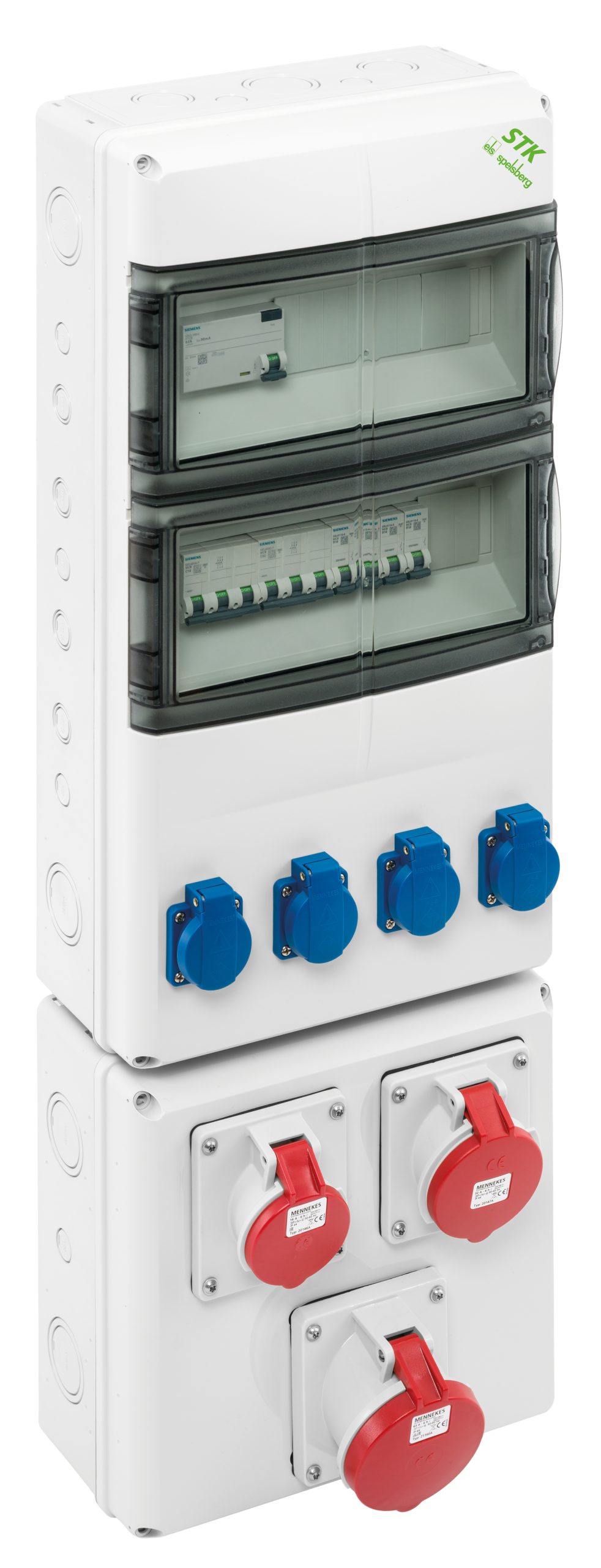

Socket outlet combination, grey, Type of protection IP44, 28 TE, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Socket outlet combination, protection class IP44, ready for connection in accordance with EN61439-3, with central terminal 4-25mm², 5-pole, also suitable for feed-through looping of the supply cable, standard rails can be removed without tools for easy cable routing in the enclosure, CEE socket outlets with 20° inclination, easy combination with STK-Z additional enclosures or AK Air small distribution boards with flange openings (AK-F), incl. flanges, available modules: 28
equipped with:
- 4 x Miniature circuit breaker C 16 A, 1p
- 1 x Miniature circuit breaker C 16 A, 3p
- 1 x Miniature circuit breaker C 32 A, 3p
- 1 x Miniature circuit breaker C 63 A, 3p
- 1 x Residual Current Circuit Breaker (RCCB), 63/0.03A, 4-pole, type A
- 4 x SCHUKO(R) plug socket (on front), 230V
- 1 x CEE plug socket outlet (on front) 16A, 400V
- 1 x CEE plug socket outlet (on front) 32A, 400V
Dimensions: 315 x 1050 x 232mm
International product number (GTIN): 4013902690060
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73020401
Manufacturer type description: STK 2834-K163263
Ключові слова: SCHUKO, SCHUKO, AMAXX, AMAXX, witterungsbeständig und schlagfest, weather-resistant and shockproof, Steckdosenkombination, Socket combination, CEE-Anbausteckdose, CEE-Mounting socket
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
