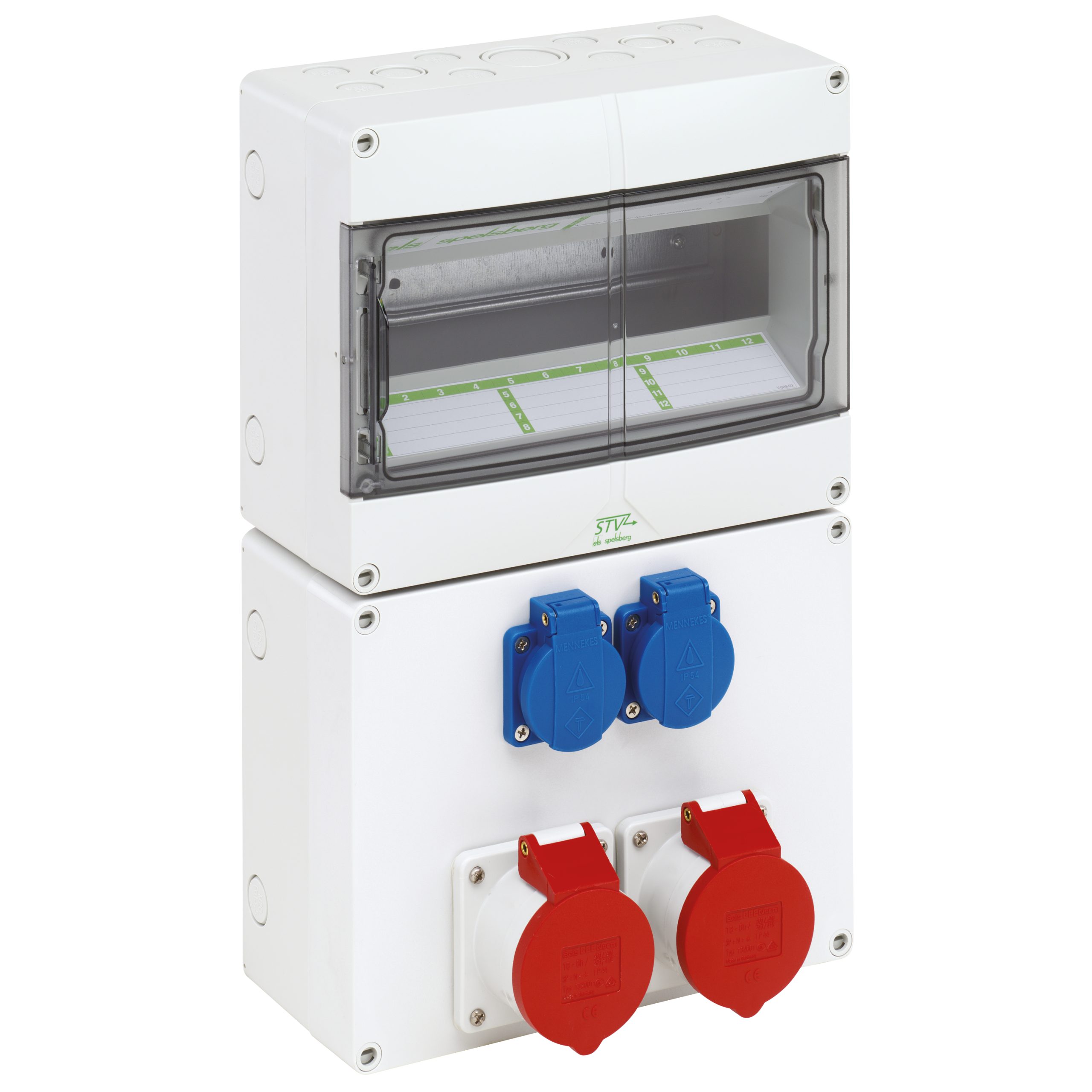

73122201 STV 1222-S16
Код товара: 90228
Ціна за запитом
Socket outlet combination, Type of protection IP44, 12 TE, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
Socket outlet combination, protection class IP44, suitable for installation by the customer of rail mounted devices, with integrated sockets pre-wired to PE/N terminal, high mechanical load capacity, temperature-insensitive, combinable, halogen-free
Cable insertions:
Top: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Bottom: Pre-embossing 2 x M20, 2 x M20/25, 3 x M32/40
Left: Pre-embossing 4 x M20
Right: Pre-embossing 4 x M20, available modules: 12
equipped with:
- 2 x SCHUKO(R) plug socket (on front), 230V
- 2 x CEE plug socket outlet (on front) 16A, 400V
Dimensions: 250 x 400 x 122mm
Accessories supplied: Attachment bushes: 2x M25, 2x M32, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902934768
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73122201
Manufacturer type description: STV 1222-S16
Ключові слова: Steckdosenkombination, Socket combination, Steckdosenverteiler, Socket distribution box, Steckdosengehäuse, Socket enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
