73020201 STK 2824-K1616
Код товара: 90216
Ціна за запитом

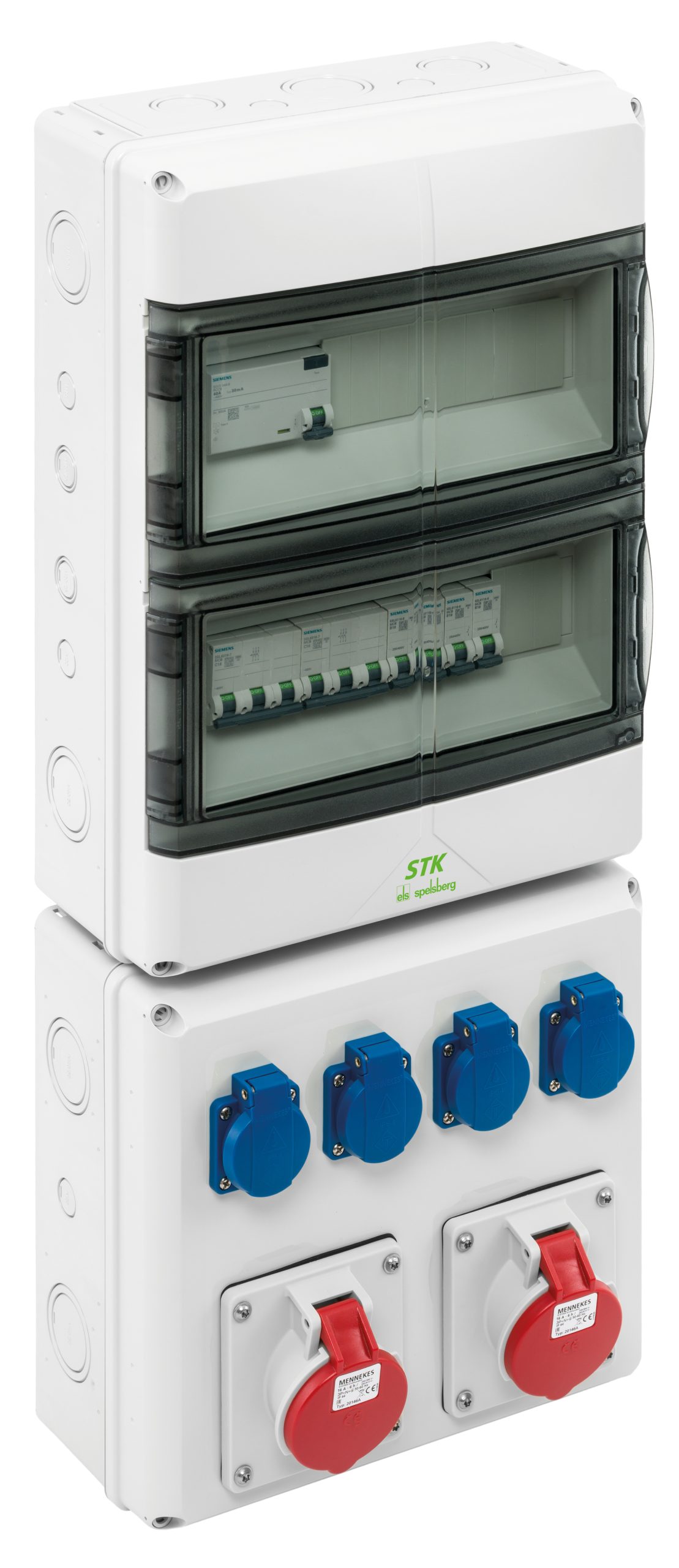

Socket outlet combination, grey, Type of protection IP44, 28 TE, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
Socket outlet combination, protection class IP44, ready for connection in accordance with EN61439-3, with central terminal 4-25mm², 5-pole, also suitable for feed-through looping of the supply cable, standard rails can be removed without tools for easy cable routing in the enclosure, CEE socket outlets with 20° inclination, easy combination with STK-Z additional enclosures or AK Air small distribution boards with flange openings (AK-F), incl. flanges, available modules: 28
equipped with:
- 4 x Miniature circuit breaker C 16 A, 1p
- 2 x Miniature circuit breaker C 16 A, 3p
- 1 x Residual Current Circuit Breaker (RCCB), 40/0.03A, 4-pole, type A
- 4 x SCHUKO(R) plug socket (on front), 230V
- 2 x CEE plug socket outlet (on front) 16A, 400V
Dimensions: 315 x 900 x 195mm
International product number (GTIN): 4013902690022
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 73020201
Manufacturer type description: STK 2824-K1616
Ключові слова: SCHUKO, SCHUKO, AMAXX, AMAXX, witterungsbeständig und schlagfest, weather-resistant and shockproof, Steckdosenkombination, Socket combination, CEE-Anbausteckdose, CEE-Mounting socket
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
