72830201 STV 502-S
Код товара: 90120
Ціна за запитом

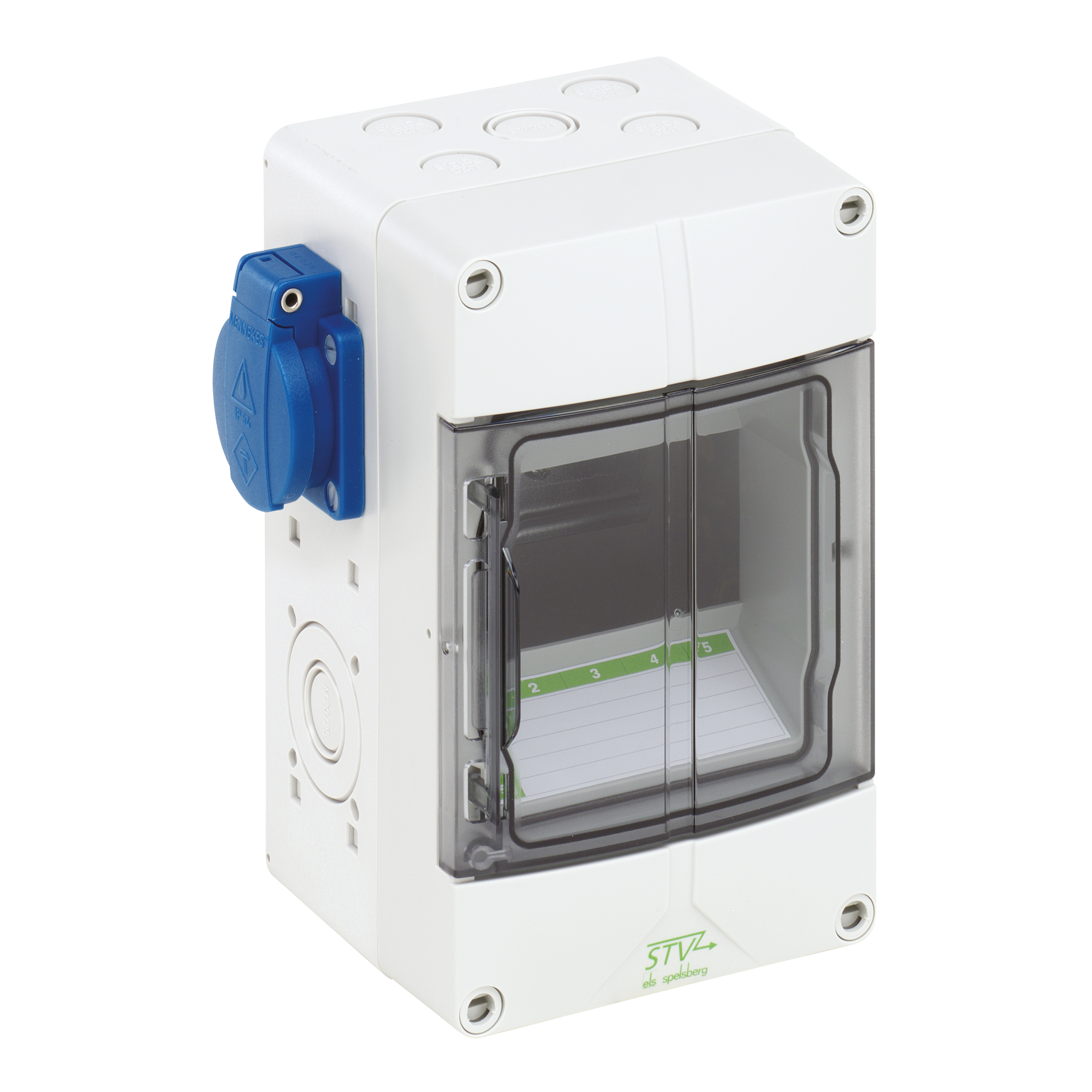

Socket outlet combination, Type of protection IP44, 4 TE, Impact strength IK08, Protection class II, Rated insulation voltage 230V AC, Halogen free
| Виробник |
|---|
Socket outlet combination, protection class IP44, suitable for installation by the customer of rail mounted devices, with integrated sockets pre-wired to PE/N terminal, high mechanical load capacity, temperature-insensitive, combinable, halogen-free
Cable insertions:
Top: Pre-embossing 4 x M20, 1 x M20/25
Bottom: Pre-embossing 4 x M20, 1 x M20/25
Rear: Pre-embossing 1 x M20, available modules: 4
equipped with:
- 2 x SCHUKO(R) plug socket (on side), 230V
Dimensions: 125 x 200 x 122mm
Accessories supplied: Attachment bushes: 2x M25, sealing plugs, masking and labelling strips
International product number (GTIN): 4013902934508
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 72830201
Manufacturer type description: STV 502-S
Ключові слова: Steckdosenkombination, Socket combination, Steckdosenverteiler, Socket distribution box, Steckdosengehäuse, Socket enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000379
