6GK5524-8GR00-2AR2 SCALANCE XR524-8C, 24V, (L3 int.)
Код товара: 282803
Ціна за запитом

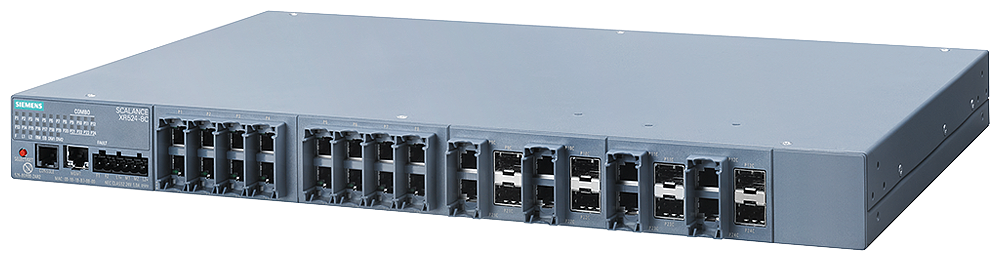

SCALANCE XR524-8C managed Layer 3 switch, 24xRJ45, 8xSFP combo, 24 V DC
| Виробник |
|---|
SCALANCE XR524-8C; managed IE switch; Layer 3 integrated; Power supply 24 V DC; 24x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP; contains 8 combo ports; in total 24 ports can be used; error signaling contact; select/set pushbutton; PROFINET IO device; redundancy functions; Office features (RSTP, VLAN, IGMP, …); C-PLUG in scope of supply.
International product number (GTIN): 4047622195178
Universal product code (UPC): 887621882600
Alternative product number: 6GK5524-8GR00-2AR2
Product ID of the manufacturer: 6GK55248GR002AR2
Manufacturer type description: SCALANCE XR524-8C, 24V, (L3 int.)
Ключові слова: SCALANCE XR524-8C, switch, SCALANCE, SCALANCE XR, SCALANCE XR-500, Industrial Ethernet, PROFINET, XR524, SCALANCE XR524 managed, SCALANCE XR-524 managed
Special product status:
Classification system: ETIM-7.0
Group reference: EC000734
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
