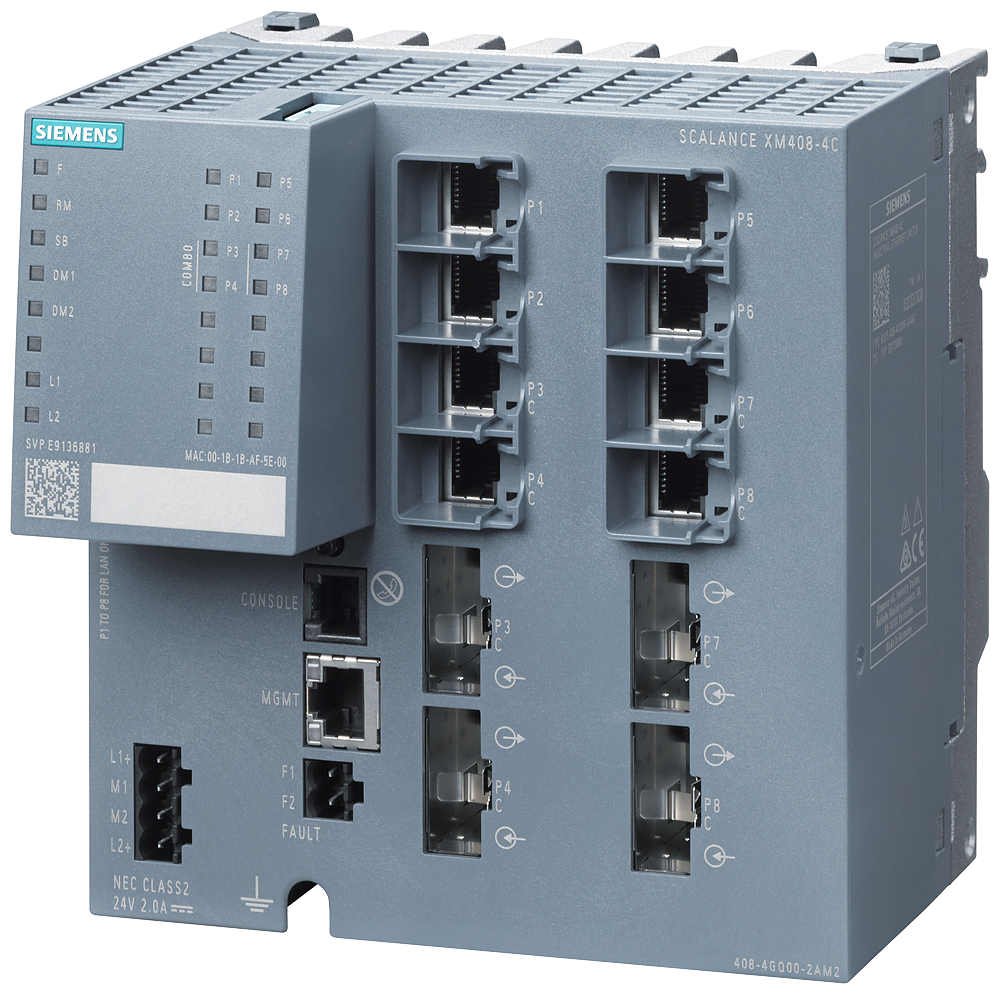

6GK5408-4GP00-2AM2 SCALANCE XM408-4C

SCALANCE XM408-4C; managed modular IE switch; 8x 10/100/1000 Mbit/s RJ45; 4x 100/1000 Mbps ST-/SC- pluggable as combo ports; in total 8 ports can be used; expandable to 24 ports electrical or optical; assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-PLUG in scope of supply; layer 3 with Key-Plug plug available . SCALANCE XM408-4C managed, Layer 2 modular switch, 8x 10/100/1000 Mbps RJ45, 4x 100/1000 Mbps ST/SC pluggable as combo ports for flexible and high-performance plant networksDesign of switched networks. Suitable especially for high-performance, flexible plant networks on the control level. For cell segmentation and system networking via fiber-optic cable. Communication in Layer 3 networks. For TCP/IP Office end devices and PROFINET ISO/MAC stations.Cost savings for automation networks: Various connections (SC, ST/BFOC and LC), flexible use of Combo ports, as well as easy extension or adaptation of the structure to the plant through the modular system. Seamless integration into existing corporate networks through support of numerous IT standards (e.g. configuration of virtual networks: VLAN). Creation of IP subnets and IP router communication by means of Layer 3 Switching (IP routing): Static, dynamic (OSPF and RIPv2) and redundant routing (VRRP). High plant availability thanks to redundant power supply, redundant network structures, standby redundancy between ring structures, redundant switchover through STP, RSTP, and MSTP standard mechanisms, exchange and expansion of media modules during operation, as well as simple device replacement with KEY-PLUG/C-PLUG plug-in removable media. Option of fast and mobile diagnostics with smartphone/tablet through WLAN and NFC. Additional functions are the simple monitoring and diagnostics by means of signaling contact, SNMP traps, PROFINET diagnostics, emailing, as well as integrated configuration and diagnostics in the TIA Portal.Managed, Layer 2 modular switch, 24 V DC, 8x 10/100/1000 Mbps for RJ45 ports electrical, 4x 100/1000 Mbps ST/SC pluggable as combo ports, a total of 8 ports available, extendable up to 24 ports electrical or optical, PROFINET IO device, Layer 3 available with KEY-PLUG.The system is supplemented by SIMATIC PM 1507 for stabilized power supply, a C-PLUG and a KEY-PLUG removable data storage medium, FC FO plugs and case for self-assembly of FO cables (LC) for installation on site, MM FO BFOC and SC connector set, RJ45 connectors, terminal block for signaling contact and power supply, mounting bracket and various FastConnect plug and cable versions (including preassembled) with stripping tool.&DPMD_ACK236_001_000_1002400&&DPMD_ACK238_001_000_1002400&
