61001801 RK 4/18 KSL-18×4²
Код товара: 89486
Ціна за запитом
Terminal block enclosure, Type of protection IP54/IP66 , max. 4², Impact strength IK07, Protection class II, Ui 400V AC, Halogen free
| Виробник |
|---|

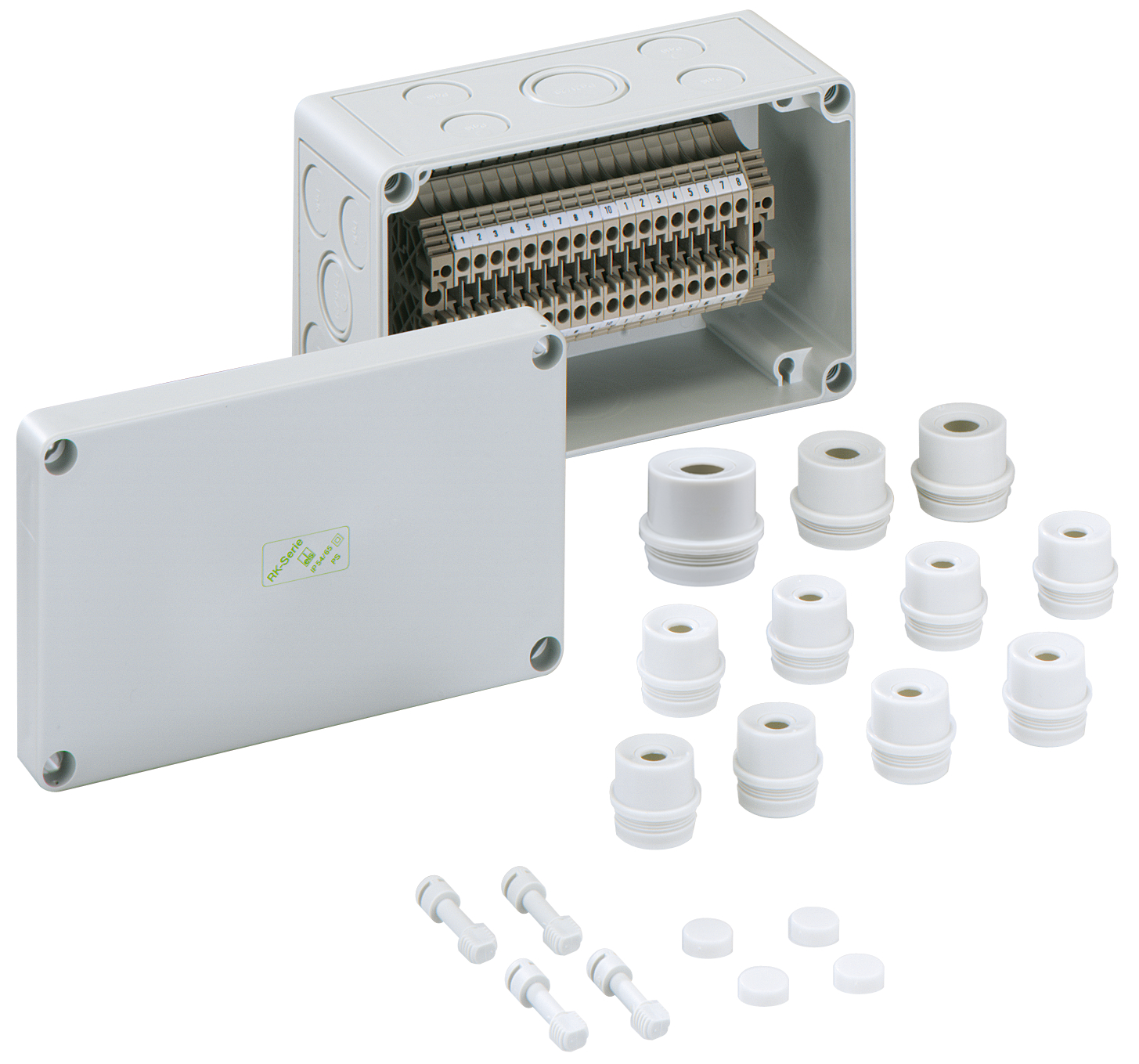

Terminal block enclosure, protection class IP54/IP66, nominal cross-section 4mm², Ui=400V AC, Polystyrene, internal fixing points, for standard indoor installations, equipped with 18 screwless terminals 4mm³, (type Weidmüller ZDU 4)
Dimensions: 180 x 110 x 90mm
Accessories supplied: 8 Attachment bushes IP54 M20 sealing range 8-13,5mm, 2 Attachment bushes IP54 M25 sealing range 9-18,5mm, 1 Attachment bushes IP54 M32 sealing range 13-23mm
International product number (GTIN): 4013902858361
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 61001801
Manufacturer type description: RK 4/18 KSL-18×4²
Ключові слова: Reihenklemmengehäuse, Terminal block enclosure, Rangierverteiler, terminal board, Klemmengehäuse, terminal housing, Kunststoffgehäuse, Plastic enclosure, Gehäuse bestückt, Enclosure assemble
Special product status:
Classification system: ETIM-9.0
Group reference: EC002713
