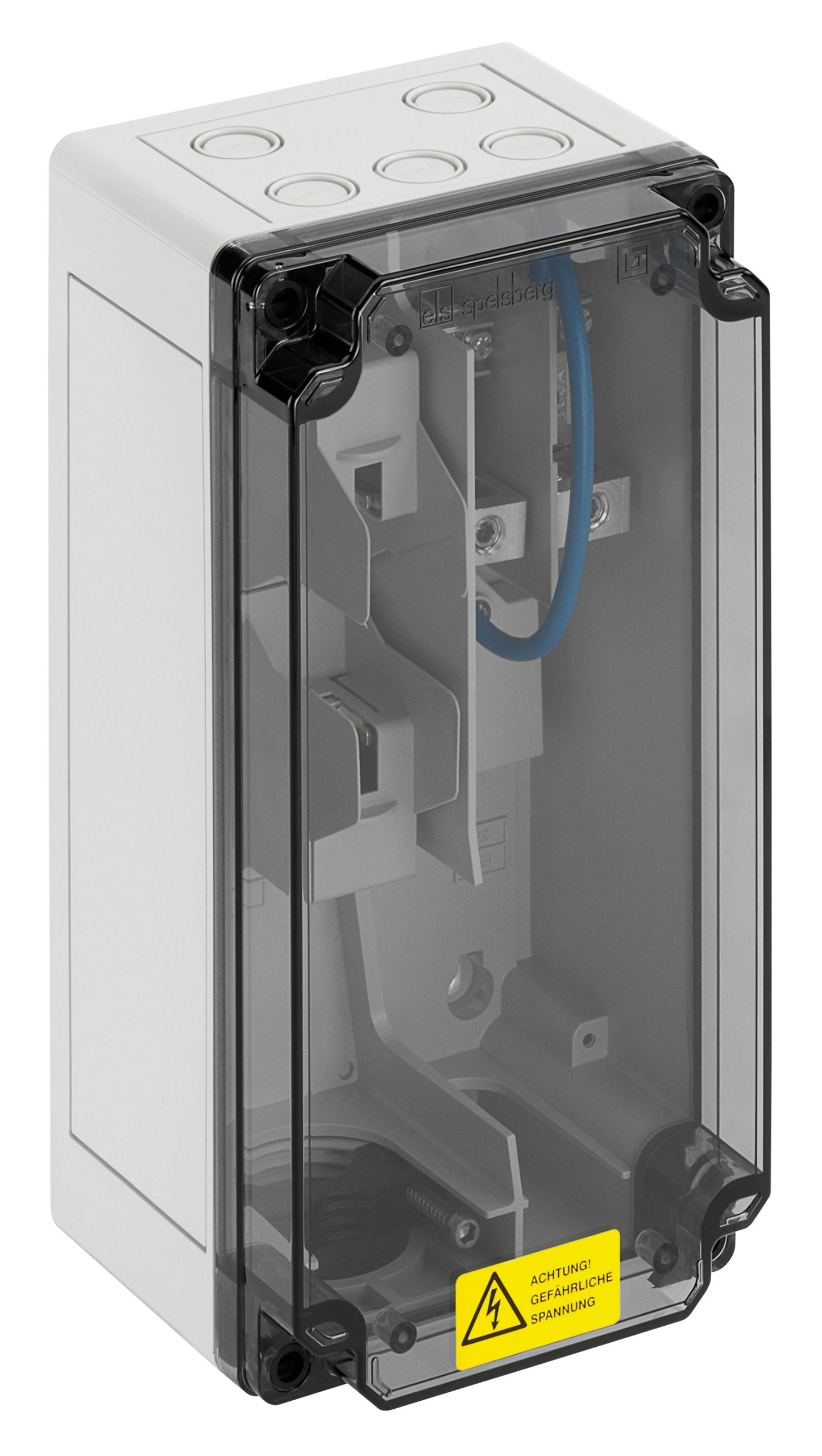

59301201 SVi H 12R-t
Код товара: 89447
Ціна за запитом
Small cable house junction box, Type of protection IP54, Impact strength IK07, Protection class II, Rated voltage 400V AC, VDE, Halogen free
| Виробник |
|---|
Mains connection box-Industrial Quality -, for 230 V alternating current mains (L-N-PE / L-PEN) according to VDE-AR-N 4100 (domestic junction box for single-phase connection), In=25 A, Imax=63 A, equipped with: 1 x NH00 fuse element, 1 x N-terminal, 1 x PE-terminal, 1 x PE-N jumper 10mm², 1 x parking bay for 2 wire
connection terminal supply cable: Box terminal (6-50mm² CU, 10-50mm² AL)
Connection terminals Outlet: Clamp connection (2x 2.5-50mm² CU), Cover, transparent
Dimensions: 150 x 300 x 137mm
International product number (GTIN): 4013902369928
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 59301201
Manufacturer type description: SVi H 12R-t
Ключові слова: Zählergehäuse, Meter housing, NH-Sicherungskasten, NH fuse boxes, Netzanschlusskasten, Main connection enclosure, , , ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000248
