59102101 SVi H 21P-t
Код товара: 89320
Ціна за запитом

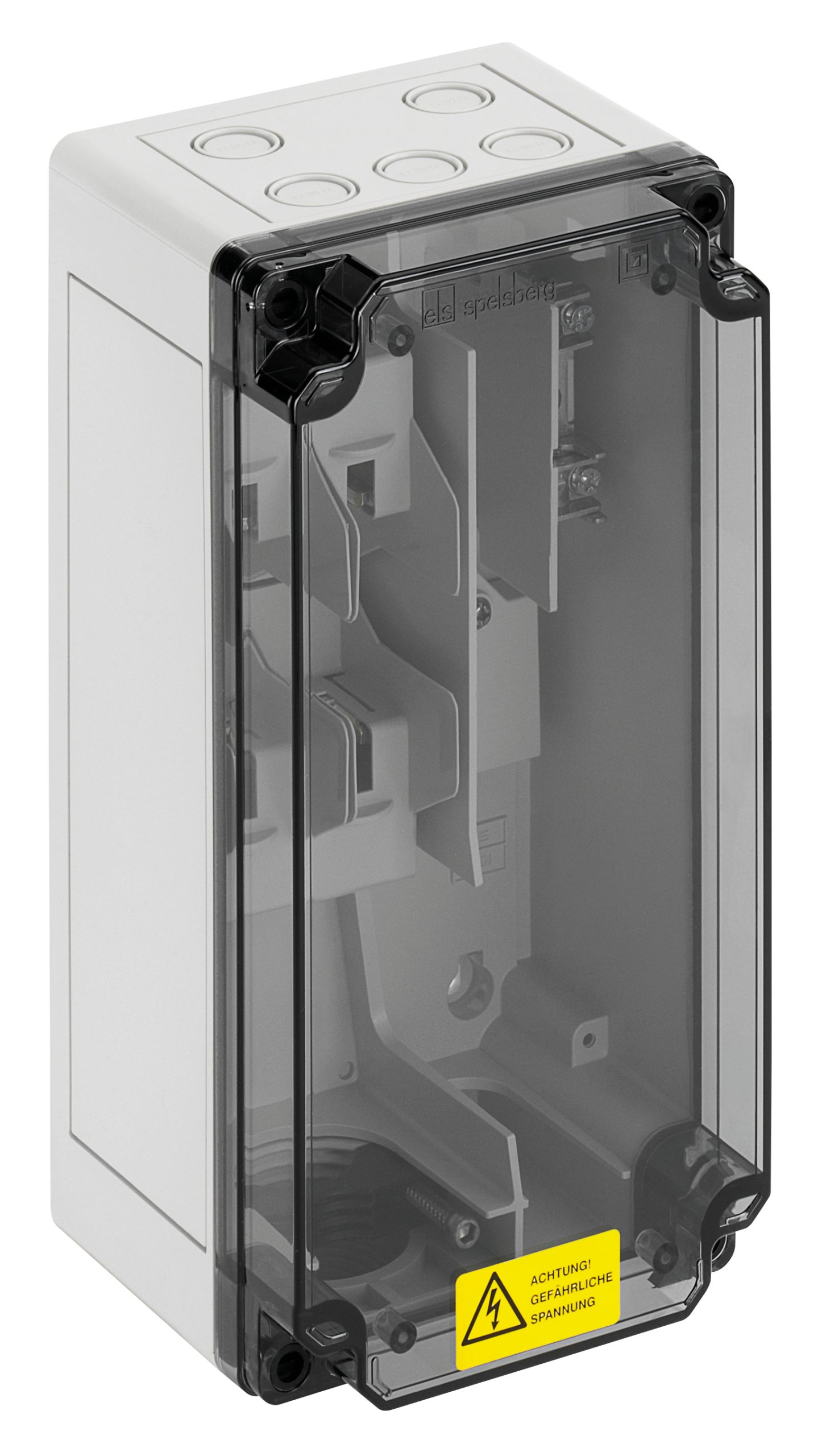

Small cable house junction box, Type of protection IP54, Impact strength IK07, Protection class II, Rated voltage 400V AC, VDE, Halogen free
| Виробник |
|---|
Mains connection box-Industrial Quality -, for 230 V three-phase mains (L1-L2-PE), In=25 A, Imax=63 A, equipped with: 2 x NH00 fuse element, 1 x PE-terminal, 1 x parking bay for 2 wire
connection terminal supply cable: Prism terminal (2.5-50mm² CU, 16-50mm² AL)
Connection terminals Outlet: Clamp connection (2x 2.5-50mm² CU), Cover, transparent
Dimensions: 150 x 300 x 137mm
International product number (GTIN): 4013902834440
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 59102101
Manufacturer type description: SVi H 21P-t
Ключові слова: Zählergehäuse, Meter housing, AL, AL, NH-Sicherungskasten, NH fuse boxes, Netzanschlusskasten, Main connection enclosure, ,
Special product status:
Classification system: ETIM-9.0
Group reference: EC000248
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
