05551284 GSN 5212-400 Plus
Код товара: 86113
Ціна за запитом
NEOZED® fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Ui 690V AC, Ui 1000V DC, Halogen free
| Виробник |
|---|

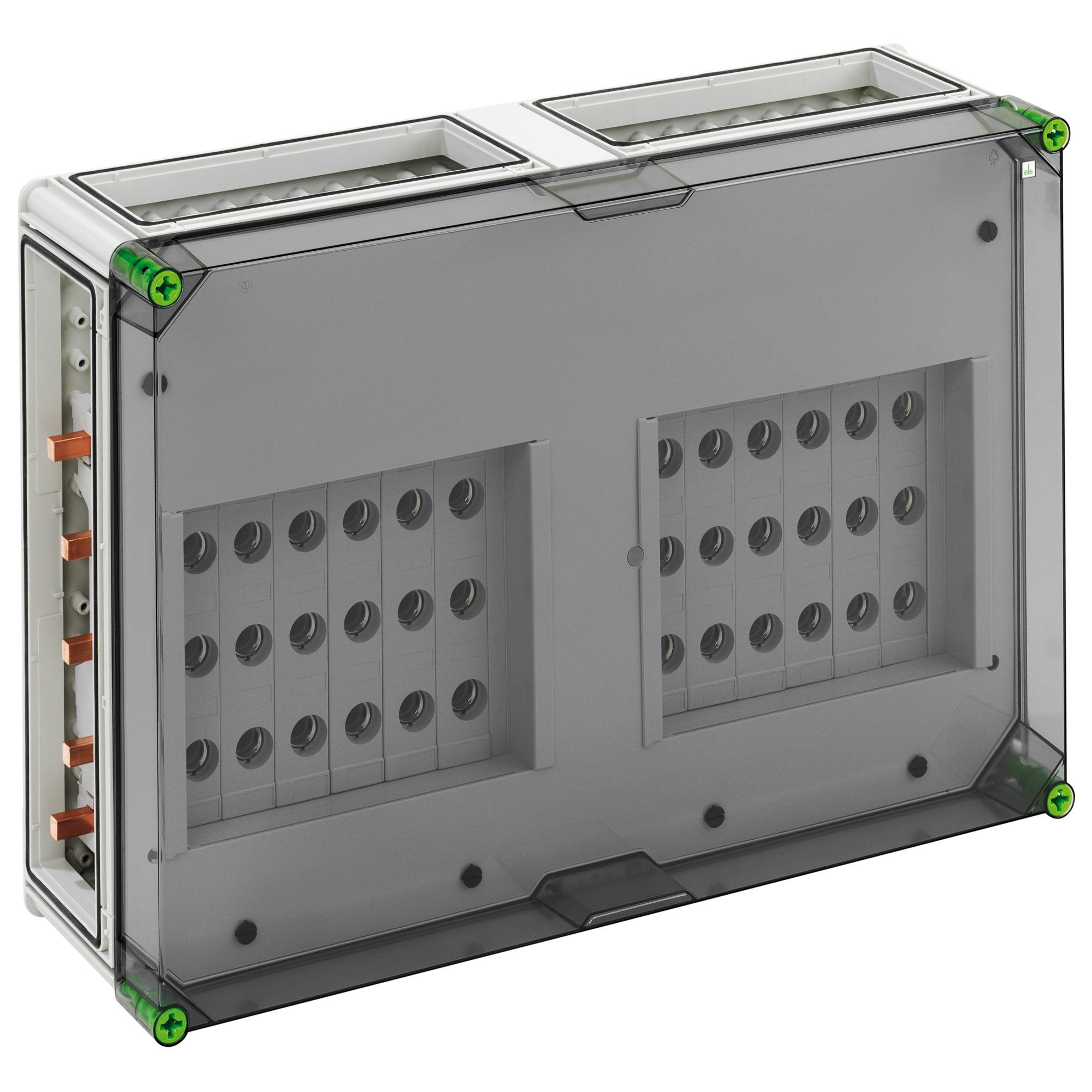

NEOZED(R) fuse enclosure with additional connection space-Industrial Quality -, 12 x 3-pole D02 bus-mounting fuse base, E 18 thread, Rated current 63 A, Screw connection 1.5-25mm², on 5-pole busbar, with 5 busbar terminals 16-70mm², N terminal 1.5-16mm², PE terminal 1.5-16mm², 4 x enclosure connectors (GGV), on busbar system 400 A, with transparent cover
Dimensions: 640 x 440 x 179mm
International product number (GTIN): 4013902988419
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 05551284
Manufacturer type description: GSN 5212-400 Plus
Ключові слова: Sicherungsgehäuse, Fuse enclosure, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000100
