05541086 GSN 4210-630
Код товара: 86097
Ціна за запитом

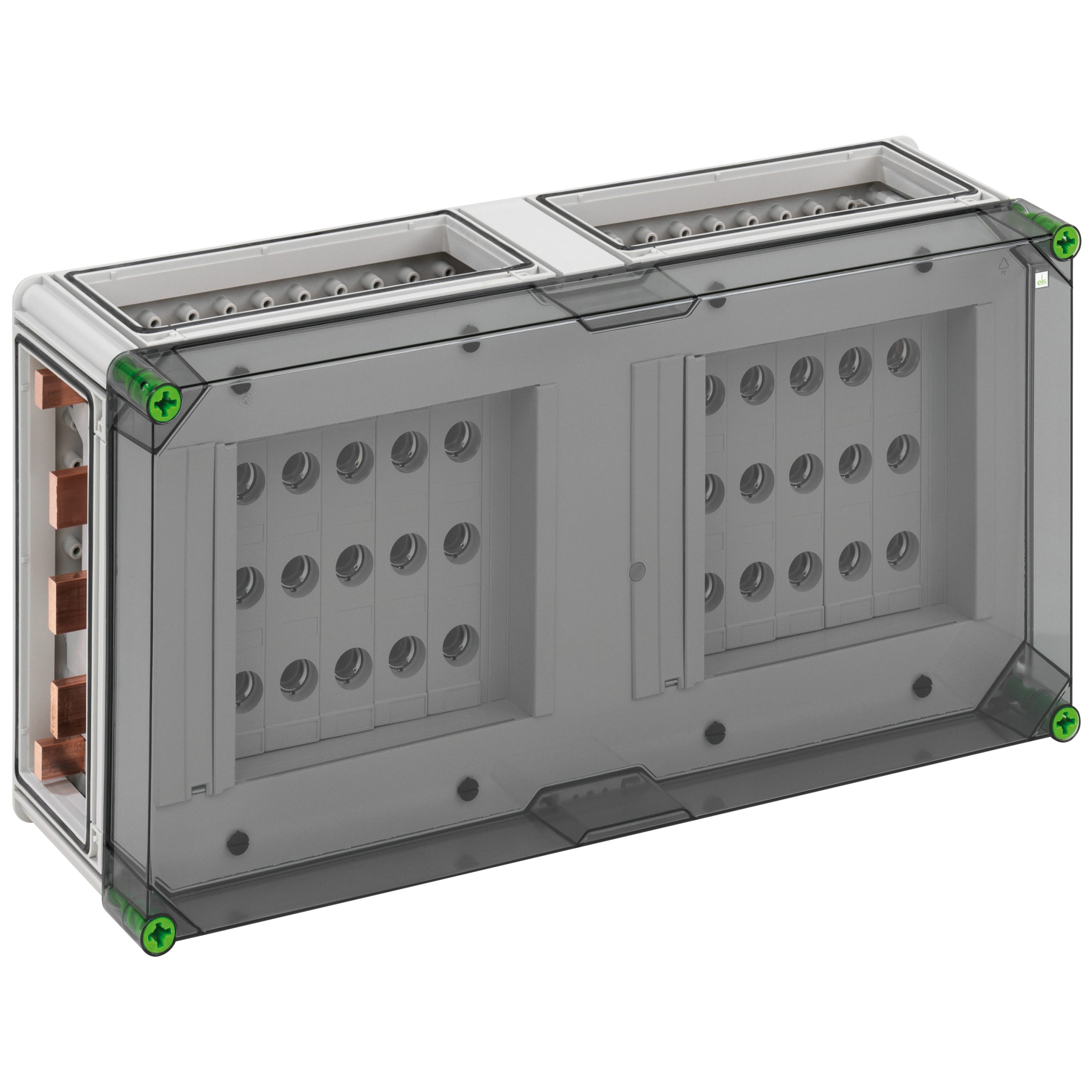

NEOZED® fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
NEOZED(R) fuse enclosure-Industrial Quality -, 10 x 3-pole D02 bus-mounting fuse base, E 18 thread, Rated current 63 A, Screw connection 1.5-25mm², on 5-pole busbar, with 5 busbar terminals 4-35mm², N terminal 1.5-16mm², PE terminal 1.5-16mm², 4 x enclosure connectors (GGV), on busbar system 630 A, with transparent cover
Dimensions: 640 x 320 x 179mm
International product number (GTIN): 4013902858217
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 05541086
Manufacturer type description: GSN 4210-630
Ключові слова: Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor, Isolierstoffgehäuse, insulation enclosure
Special product status:
Classification system: ETIM-9.0
Group reference: EC000100
