04644584 GST 4345-400
Код товара: 85981
Ціна за запитом

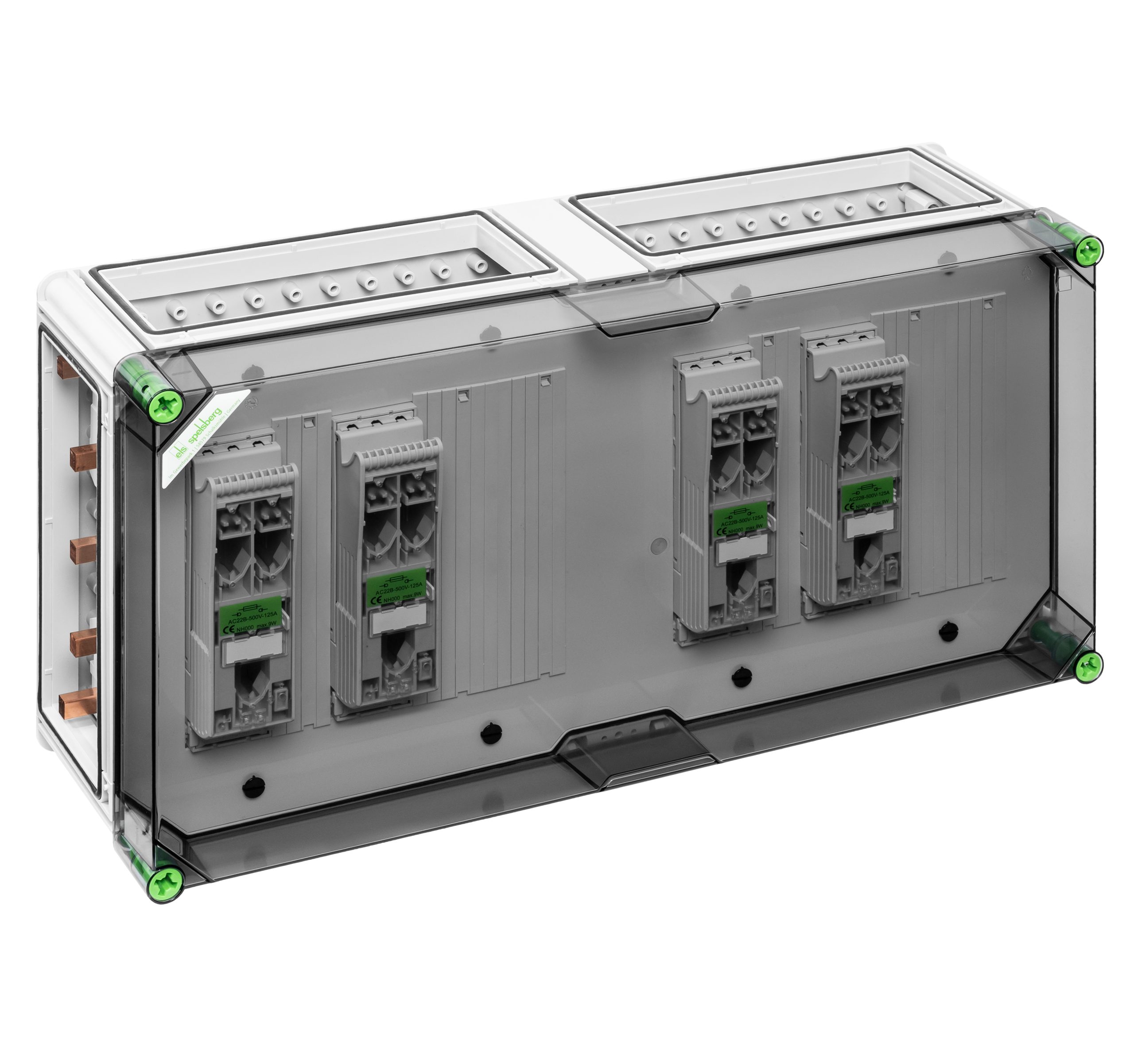

NH fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 690V AC, Halogen free
| Виробник |
|---|
busbar enclosure-Industrial Quality -, equipped with 4 x NH 000 fuse switch disconnector, Elevator clamp 1.5-50mm², bottom side output, 5-pole busbar, with 5 busbar terminals for direct connection of a cable to the busbar system, additional N and PE terminal for each switch, 4 x enclosure connectors (GGV), busbar system 400 A, with transparent cover
Dimensions: 640 x 320 x 179mm
International product number (GTIN): 4013902689408
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04644584
Manufacturer type description: GST 4345-400
Ключові слова: Sicherungsgehäuse, Fuse enclosure, NH-Lasttrenngehäuse, NH fuse enclosure, NH-Lasttrennergehäuse, NH – load disconnector housing, Sicherungsverteiler, fuse distributor, Schaltanlagen, switchboards
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
